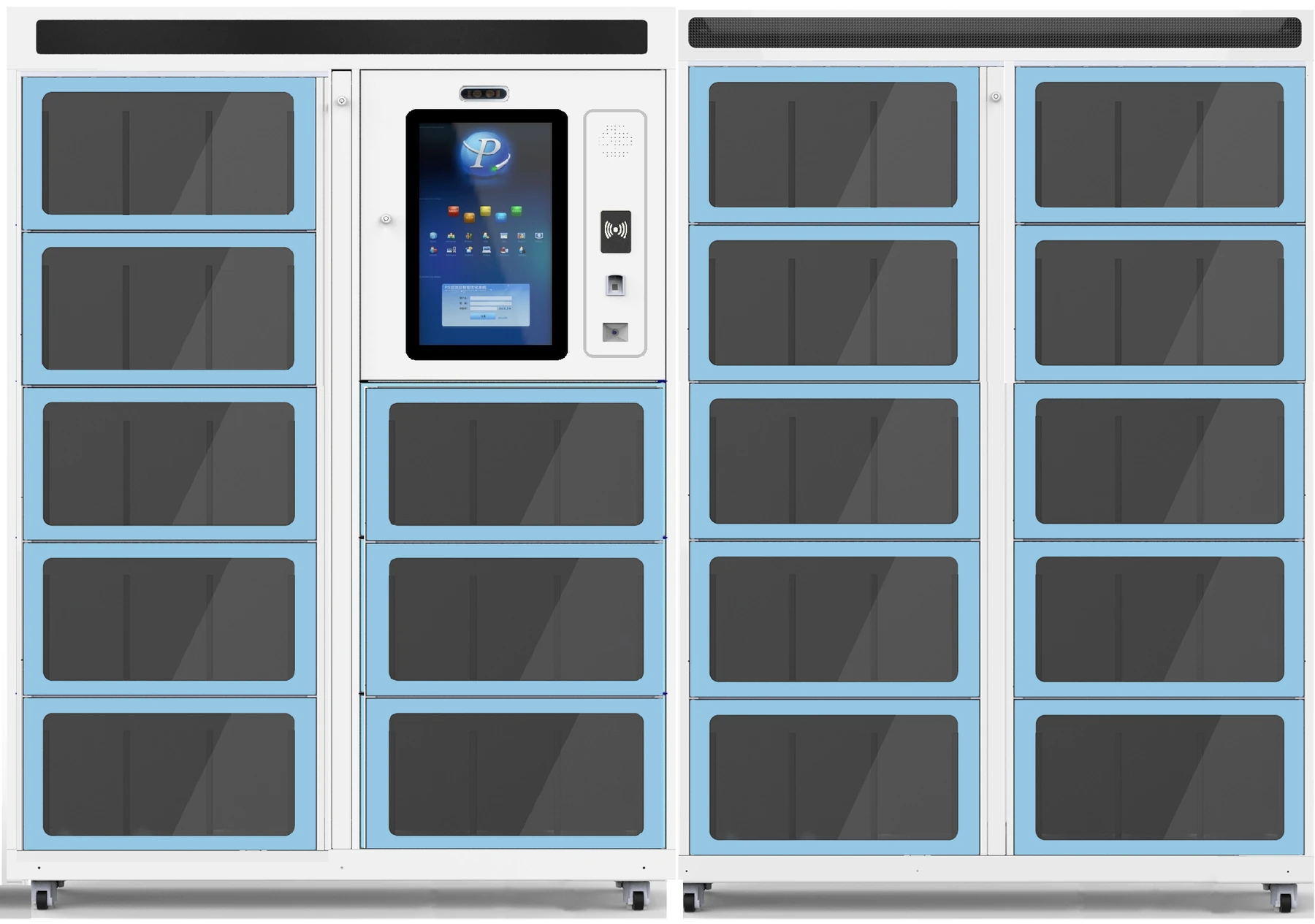

Expandable compartment-level book service for 24-hour unattended library operation.
HF or UHF Configuration
Available for HF ISO 15693-3 or UHF ISO 18000-6C library-tag projects.
Compartment-Level Management
Four-antenna arrangement per shelf level supports book localization and individual door management.
Multi-Book Processing
Source specification records borrowing and return in under three seconds with multiple books.
Expandable Cabinet System
One main cabinet supports at least four auxiliary cabinets for distributed library service.
RFID & Book Handling
| RFID options | HF ISO 15693-3 or UHF ISO 18000-6C |
|---|
| Antenna arrangement | Four-antenna combination per shelf level |
|---|
| Read accuracy | At least 99.9% |
|---|
| Compartment crosstalk | No more than 0.1% |
|---|
| Borrow/return time | Under 3 seconds; supports multiple books |
|---|
| Book localization | Compartment-level localization |
|---|
| Door management | Individual door management |
|---|
| Reader protection | Overtemperature, overcurrent and short-circuit protection |
|---|
| RSSI | Supported |
|---|
| RF power | Adjustable |
|---|
Cabinet, Service & Connectivity
| Shelf levels | 5 |
|---|
| Main cabinet capacity | Approx. 240-280 books |
|---|
| Auxiliary cabinet capacity | Approx. 300-350 books |
|---|
| Expansion | One main cabinet with at least four auxiliary cabinets |
|---|
| Service functions | Borrowing, return, renewal, inquiry and analytics |
|---|
| Display | 21.5-inch capacitive touchscreen |
|---|
| Operating systems | Windows, Android or domestic operating system |
|---|
| Device interfaces | Serial, USB and Ethernet |
|---|
| Network | Wired or Wi-Fi; 4G/5G optional |
|---|
Physical, Power & Environment
| Dimensions | Main and auxiliary cabinet: 1330 x 450 x 1948 mm each |
|---|
| Weight | Main cabinet 220 kg; auxiliary cabinet 200 kg |
|---|
| Power consumption | Main cabinet 120 W; auxiliary cabinet 60 W |
|---|
| Power supply | AC 110-230 V, 50 Hz |
|---|
| Material | Cold-rolled steel, at least 1 mm thick |
|---|
| Installation | Indoor, floor-standing |
|---|
| Operating temperature | -20°C to +60°C |
|---|
| Storage temperature | -30°C to +80°C |
|---|
| Storage humidity | 10-98%, non-condensing |
|---|

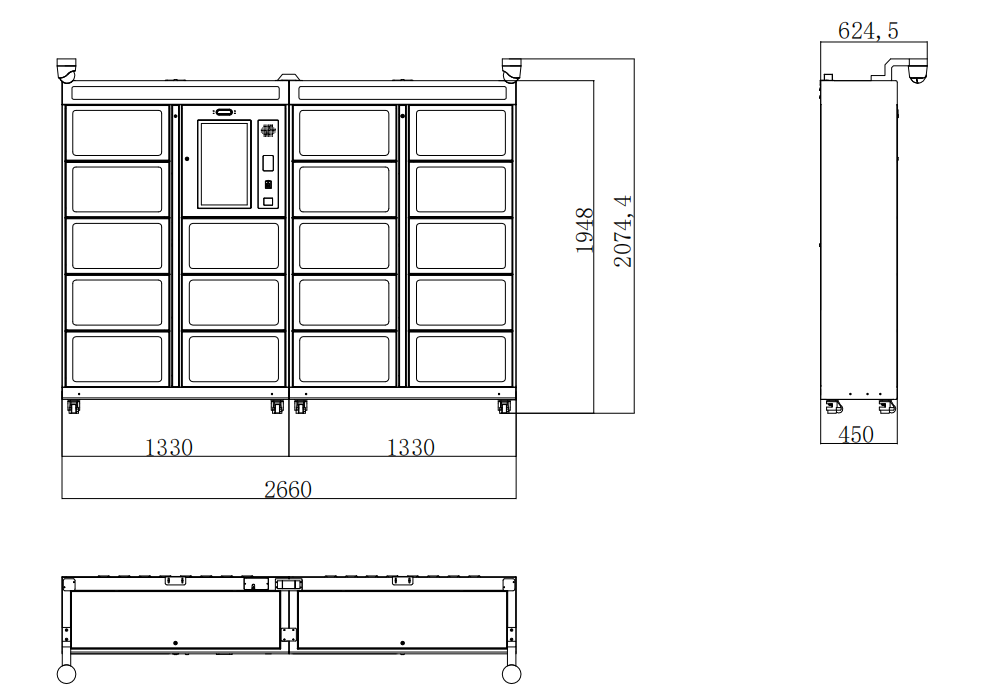

Mechanical Dimensions (mm)
