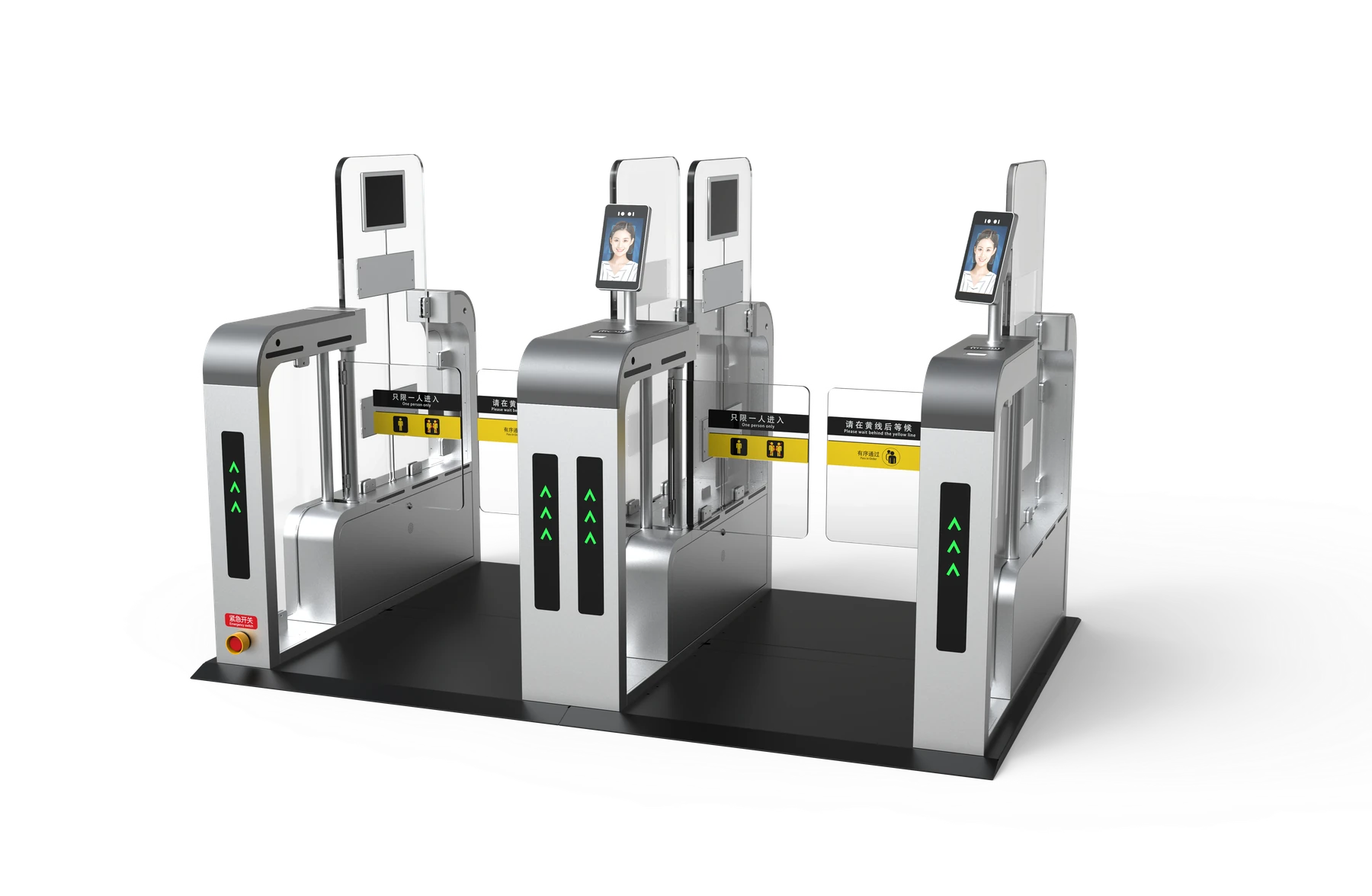

RUST101 UHF RFID Turnstile Security Gate

RFID theft detection and controlled passage for libraries and school libraries.

Combines UHF RFID theft detection with a brushless-servo turnstile channel.

Exit-side EPC, USER, EAS and PC-AFI detection with localized sound-and-light alarms.

At least nine infrared sensor pairs per channel support safe passage and fault diagnosis.

Adjustable 60-90 cm channel width, expansion to at least ten channels and traffic statistics.

RFID Security Performance

Supported standards	EPCglobal Gen 2; ISO 18000-6C
Frequency configuration	European or United States spectrum configuration
Detection direction	Exit-side RFID detection; entry-side detection disabled
Anti-theft modes	EPC, USER, EAS and PC-AFI
Maximum EPC length	496 bits
Alarm control	Active or command-controlled
Alarm indication	Channel-specific sound-and-light alarm; adjustable volume

Passage, Display & Records

Channel width	60-90 cm; 75 cm default
Channel expansion	At least 10 channels
Infrared sensors	At least 9 pairs per channel
Anti-pinch	Supported
Passage modes	Identity-verification or fast-passage mode
Drive	Brushless servo motor
Display	10.1-inch display per channel
Traffic statistics	Per-channel or combined entry/exit statistics
Daily footfall records	At least 3,500
Entry/exit records	At least 40,000
Alarm records	At least 50,000
Authentication options	Face, card, barcode or identity-document recognition

Physical & Environmental

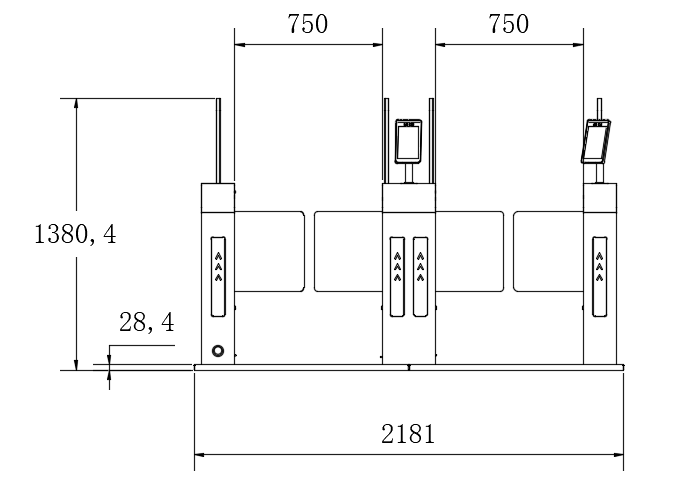

Mechanical Dimensions (mm)

RUST101
