Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
Technical Specifications

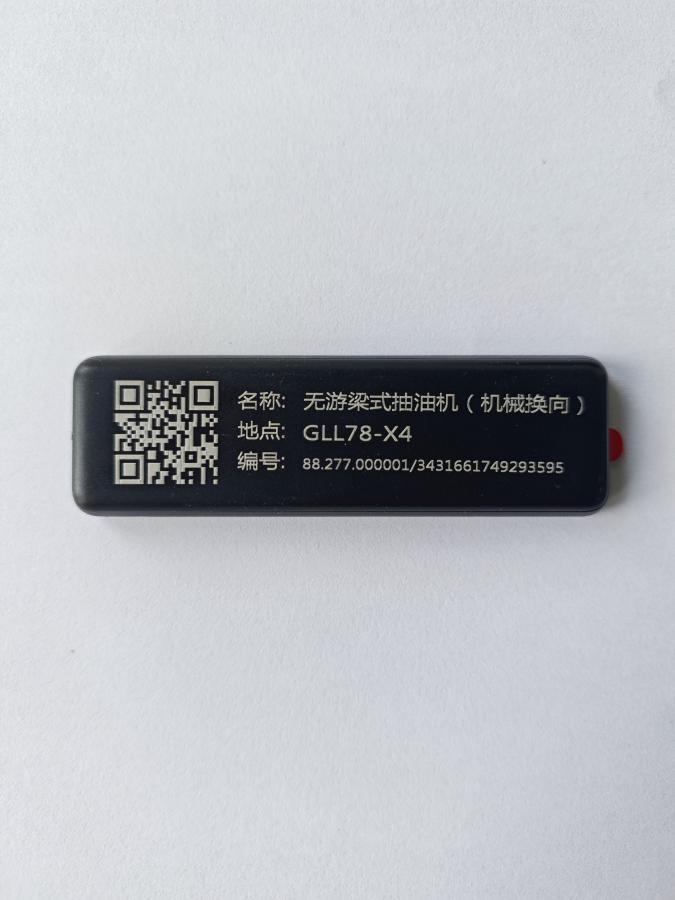

| Product model | RABS10030 |
|---|
| Product category | ABS Anti-Metal RFID Tag Series |
|---|
| RFID protocol | EPC Class 1 Gen 2, ISO 18000-6C |
|---|
| Frequency | (US) 902-928 MHz,(EU) 865-868 MHz |
|---|
| Chip | NXP UCODE 8 |
|---|
| Memory | EPC 128bits, User 0bits, TID 96bits |
|---|
| Write endurance | 100,000 cycles |
|---|
| Function | Read / write |
|---|
| Data retention | 50 years |
|---|
| Applicable surface | metal surface |
|---|
| Read range | 0 to 8.0 m - (US) 902-928 MHz, metal surface |
|---|
| Warranty | 1 years |
|---|
| Dimensions | 100x30 mm |
|---|
| Thickness | 10 mm |
|---|
| Material | ABS |
|---|
| Color | Black |
|---|
| Installation | adhesive backing |
|---|
| Weight | 30.0 g |
|---|
| Ingress protection | IP65 |
|---|
| Storage temperature | -30 C to + 100 C |
|---|
| Operating temperature | -20 C to + 60 C |
|---|
| Certifications | REACH, RoHS, CE |
|---|
