Capabilities
- Three-dimensional UHF tag detection
- Multi-channel networking and localized alarm
- Traffic statistics and external-device linkage
Back to RFID Tags & Devices

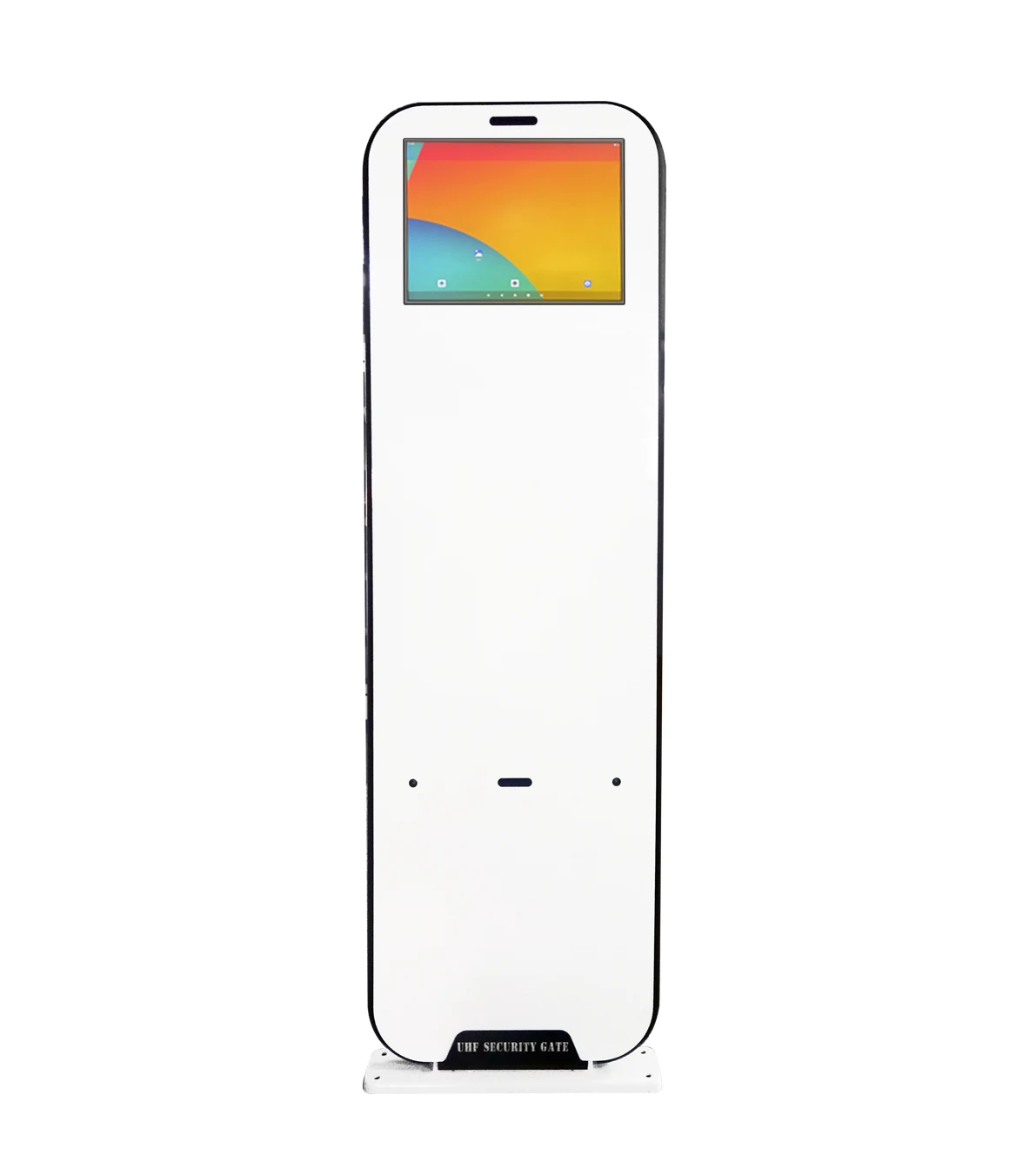

UHF RFID Security Gate
RSG618
UHF RFID Security Gate for Libraries and Controlled Exits
A multi-channel UHF RFID security gate for libraries, archives, smart retail and tool-management environments, with tag detection, sound-and-light alarms and passage statistics.
Key parameters
Dimensions
1511.5 x 469 x 108 mm
Specification Notes
- Passage width depends on RF power, tags and the installed environment.
- Display, operating system, Wi-Fi and voice announcement options must be confirmed by project.
- Final spectrum configuration must match the deployment region.
Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
RFID & Detection
| Supported standard | ISO 18000-6C; EPCglobal Gen 2 |
|---|---|
| Spectrum options | European and United States spectrum configurations |
| RF power | 1-30 dB, adjustable |
| Maximum passage width | 220 cm, dependent on power and site conditions |
| Channel expansion | Up to 15 channels |
| Anti-theft modes | EPC, USER, EAS and PC-AFI |
| Maximum EPC length | 496 bits |
Communication, Alarm & Records
| Host communication | Serial, Ethernet and Wi-Fi |
|---|---|
| Network protocol | TCP/IP; static IP or DHCP |
| Alarm modes | Autonomous alarm or mobile-borrowing alarm |
| Alarm indication | Sound and light; adjustable volume |
| Linkage outputs | 4 relay outputs and 2 MOS outputs |
| Traffic sensing | Infrared direction recognition and people counting |
| Daily traffic records | At least 3,500 |
| Entry/exit records | At least 40,000 |
| Alarm records | At least 50,000 |
Display, Power & Environment
| Standard display | 10.1-inch |
|---|---|
| Optional displays | 10.1-inch touch display or 17-inch display with Windows or Android |
| Power input | AC 100-240 V, 50-60 Hz |
| Power consumption | Controller gate approx. 9 W; main gate 11 W; auxiliary gate approx. 3 W |
| Weight | Controller/main gate approx. 26 kg; auxiliary gate approx. 25 kg |
| Installation environment | Indoor |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +80°C |
| Storage humidity | 10-98%, non-condensing |
| Dimensions | 1511.5 x 469 x 108 mm |
| Base dimensions | 469 x 108 x 17 mm |

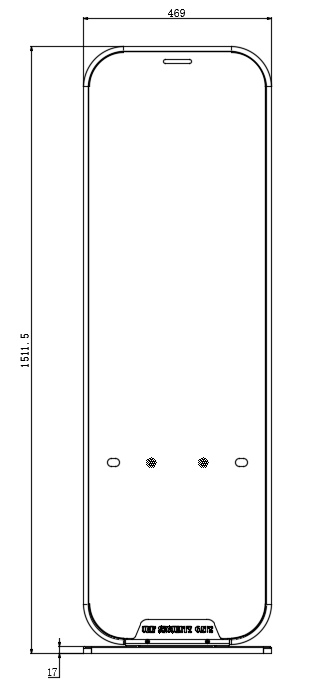

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
