Technical specifications
Model parameters for product comparison and engineering review.
Technical Specifications

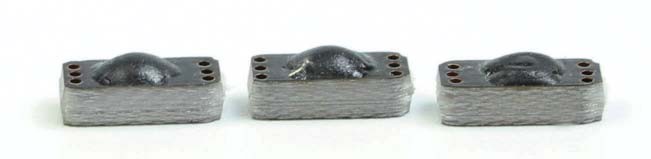

| Product model | RX0803 |
|---|
| Product category | UHF anti-metal RFID tag |
|---|
| Series | Atom Series |
|---|
| RFID protocol | EPC Class1 Gen2, ISO18000-6C |
|---|
| Frequency | (US) 902-928 MHz, (EU) 865-868 MHz |
|---|
| Chip | Alien Higgs-3 |
|---|
| Memory | EPC 96bits (expandable to 480bits) , User 512bits, TID64bits |
|---|
| Write endurance | 100,000 cycles |
|---|
| Function | Read / write |
|---|
| Data retention | 50 years |
|---|
| Applicable surface | Metal surface |
|---|
| Read range | Frequency: (US) 902-928 MHz, (EU) 865-868 MHz |
|---|
| Read range | 1.1 m, (US) 902-928 MHz, Metal surface |
|---|
| Read range | 1.2 m, (EU) 865-868 MHz, Metal surface |
|---|
| Read range | 0.7 m, (US) 902-928 MHz, Metal surface |
|---|
| Read range | 0.85 m, (EU) 865-868 MHz, Metal surface |
|---|
| Dimensions | 8x3 mm |
|---|
| Thickness | 2.0 mm (excluding chip bump), 3.0 mm (including chip bump) |
|---|
| Material | FR4 (PCB) |
|---|
| Color | Black (optional red, blue, green, white) |
|---|
| Installation | Weight: 0.5 g |
|---|
| Ingress protection | IP68 |
|---|
| Storage temperature | -40 Cto+150 C |
|---|
| Operating temperature | -40 Cto+100 C |
|---|
| Certifications | REACH, RoHS , CE |
|---|
