Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
Technical Specifications

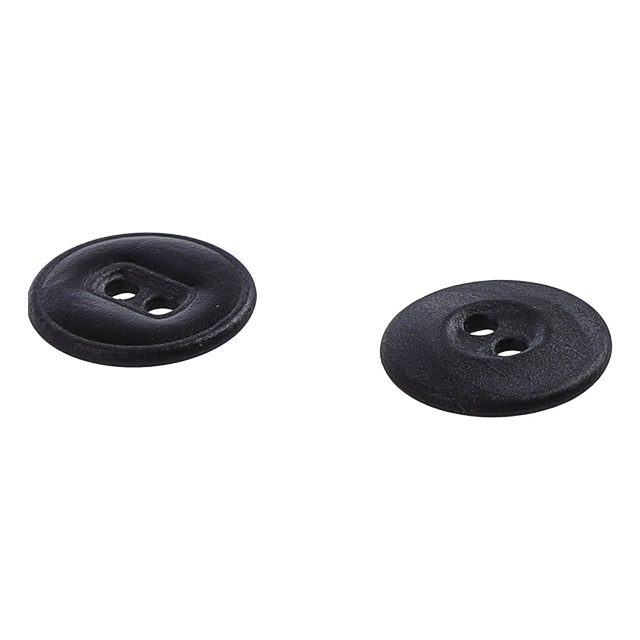

| Product model | RXD1818 |
|---|
| Product category | Laundry RFID Tag Series |
|---|
| RFID protocol | EPC Class 1 Gen 2, ISO 18000-6C |
|---|
| Frequency | (US) 902-928 MHz,(EU) 865-868 MHz |
|---|
| Chip | NXP Ucode7M |
|---|
| Memory | EPC 128bits, User 0bits, TID 96bits |
|---|
| Write endurance | 100,000 cycles |
|---|
| Function | Read / write |
|---|
| Data retention | 20 years |
|---|
| Applications | industrial laundry、uniform management、medical garment management、institutional uniform management |
|---|
| Read range | 0 to 2 m - (US) 902-928 MHz, metal surface |
|---|
| Warranty | 1 years |
|---|
| Service life | at least 200 washing cycles |
|---|
| Dimensions | diameter18 mm |
|---|
| Thickness | 2.8 mm |
|---|
| Material | PPShigh-temperature resistant material |
|---|
| Color | Black |
|---|
| Installation | sewn-in installation |
|---|
| Weight | 2 g |
|---|
| Ingress protection | IP65 |
|---|
| Storage temperature | -40 C to + 120 C |
|---|
| Operating temperature | -25 C to + 110 C |
|---|
| Certifications | RoHS |
|---|
