Industrial RFID Tag
Compact stainless-steel UHF identification for metal assets
Key parameters
Product model
RGW-2507
Product name
Stainless Steel Tag
Protocol
EPC Class 1 Gen 2 / ISO 18000-6C
Frequency
US 902-928 MHz; EU 865-868 MHz
Chip
NXP UCODE 8
Memory
EPC 128 bits; User 0 bits; TID 96 bits
Technical Data
Model parameters for product comparison and engineering review.
Product model
RGW-2507
Product name
Stainless Steel Tag
Protocol
EPC Class 1 Gen 2 / ISO 18000-6C
Frequency
US 902-928 MHz; EU 865-868 MHz
Chip
NXP UCODE 8
Memory
EPC 128 bits; User 0 bits; TID 96 bits
Function
Read and write
Write endurance
100,000 cycles
Data retention
50 years
Applicable surface
Metal
Reference read range
Up to 1.5 m in the US band on metal
Dimensions
Ø25 x 7 mm
Material
Stainless steel and epoxy resin
Color
Natural finish
Installation
Stainless-steel band
Weight
15.0 g
Ingress protection
IP68
Operating temperature
-30°C to +150°C
Storage temperature
-20°C to +80°C
Warranty
1 year

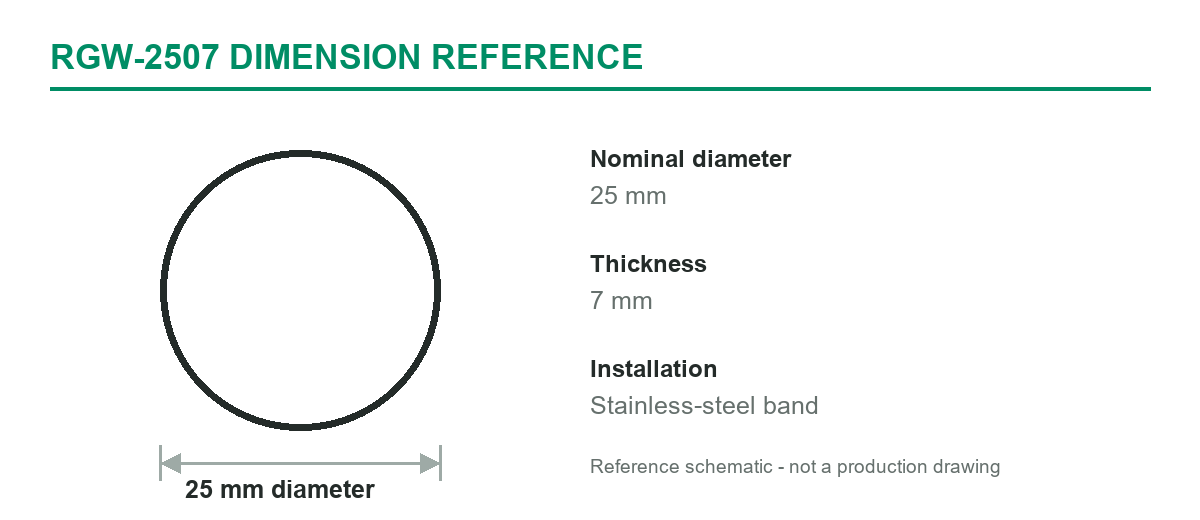

Drawing status
Dimension image is a reference schematic based on stated dimensions
Mechanical Dimensions
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
