Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
Technical Specifications

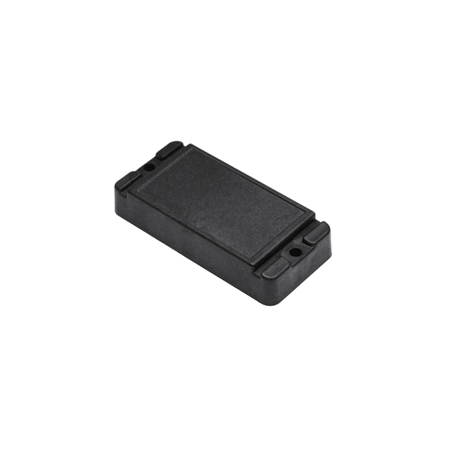

| Product model | RGW4015 |
|---|
| Product category | Industrial & High-Temperature RFID Tag Series |
|---|
| RFID protocol | EPC Class 1 Gen 2, ISO 18000-6C |
|---|
| Frequency | (US) 902-928 MHz,(EU) 865-868 MHz |
|---|
| Chip | NXP UCODE 8 |
|---|
| Memory | EPC 128bits, User 0bits, TID 96bits |
|---|
| Write endurance | 100,000 cycles |
|---|
| Function | Read / write |
|---|
| Data retention | 50 years |
|---|
| Applicable surface | metal surface |
|---|
| Read range | 0 to 6 m - (US) 902-928 MHz, metal surface |
|---|
| Warranty | 1 years |
|---|
| Dimensions | 40.0x15.0 mm,(hole: diameter2.5 mm x 2) |
|---|
| Thickness | 10 mm |
|---|
| Material | PEEK |
|---|
| Color | Black |
|---|
| Installation | screws |
|---|
| Weight | 6.0 g |
|---|
| Ingress protection | IP65 |
|---|
| Storage temperature | -60 C to + 260 C (300 Cwithstanding100 hours) |
|---|
| Operating temperature | -40 C to + 150 C |
|---|
| Certifications | REACH, RoHS, CE |
|---|
