Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
Technical Specifications

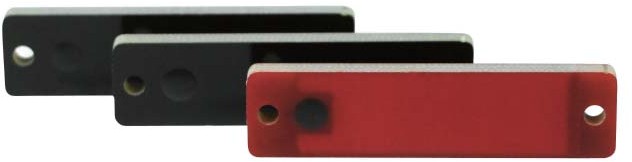

| Product model | RX5213 |
|---|
| Product category | UHF anti-metal RFID tag |
|---|
| Series | Everest Series |
|---|
| RFID protocol | EPC Class1 Gen2, ISO18000-6C |
|---|
| Frequency | (US) 902-928 MHz, (EU) 865-868 MHz |
|---|
| Chip | Impinj Monza 4QT |
|---|
| Memory | EPC 128bits , User 512bits, TID64bits |
|---|
| Write endurance | 100,000 cycles |
|---|
| Function | Read / write |
|---|
| Data retention | 50 years |
|---|
| Applicable surface | Metal surface |
|---|
| Read range | Frequency: (US) 902-928 MHz, (EU) 865-868 MHz |
|---|
| Read range | 8.0 m, (US) 902-928 MHz, Metal surface |
|---|
| Read range | 8.2 m, (EU) 865-868 MHz, Metal surface |
|---|
| Read range | 4.9 m, (US) 902-928 MHz, Metal surface |
|---|
| Read range | 5.1 m, (EU) 865-868 MHz, Metal surface |
|---|
| Dimensions | 52x13 mm, (hole: diameter 3 mm) |
|---|
| Thickness | 3.5 mm |
|---|
| Material | FR4 (PCB) |
|---|
| Color | Black (optional red, blue, green, white) |
|---|
| Installation | Adhesive backing or screws |
|---|
| Weight | 5.5 g |
|---|
| Ingress protection | IP68 |
|---|
| Storage temperature | -40 C to +150 C |
|---|
| Operating temperature | -40 C to +100 C |
|---|
| Certifications | REACH, RoHS , CE |
|---|
