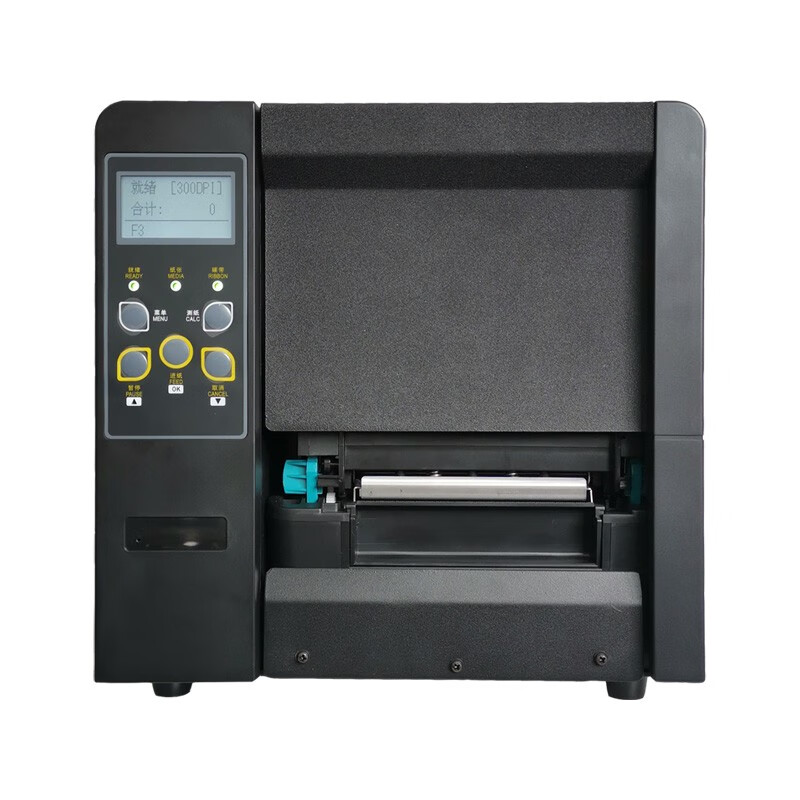

Industrial RFID Printer

F3D

Industrial UHF RFID Printer for Tag Printing and Encoding

A REAOX-branded industrial RFID printer for printing and encoding UHF labels, including flexible on-metal tags used in industrial, warehouse, and asset-management workflows.

Request product match View model index View product manual

Key parameters

Communication interface

RS-232, USB 2.0, Ethernet

Dimensions

296 x 428 x 301 mm

Capabilities

Combines printed label output with UHF RFID read/write operations
Supports thick flexible on-metal tag media used in industrial asset scenarios
Can be used with middleware or project software to align EPC, label text, and business records

Specification Notes

Confirm tag material, label size, ribbon, encoding rules, and print volume before selection.
RFID printer performance depends on tag inlay position, media thickness, encoding area, and software configuration.
For production use, define EPC rules and label templates together with the upstream business system.

Technical Data

Technical specifications

Model parameters for product comparison and engineering review.

Printing & RFID

Print method	Thermal transfer / direct thermal
Resolution	300 DPI
Max print speed	8 ips (203.2 mm/s)
RFID standard	ISO 18000-6C
Media thickness	0.06-1.5 mm, including flexible on-metal tags

Interface, Power & Physical

Communication interface	RS-232, USB 2.0, Ethernet
Maximum print width	105.6 mm
Maximum print length	4000 mm
Dimensions	296 x 428 x 301 mm
Weight	14.5 kg
