Capabilities
- External antenna support for structured zone design
- Suitable for fixed UHF reading scenarios
- Useful as the reader layer inside custom cabinets and portals
Back to RFID Tags & Devices
UHF Fixed Readers
RU6504-RU6508
Fixed UHF Reader Series for Multi-Antenna Reading Zones
A four-port and multi-port UHF fixed reader family for cabinets, gates, warehouse checkpoints, logistics doors, and other controlled reading zones.
Key parameters
Working frequency
840-960 MHz
Supported standards
ISO 18000-6C / EPC Gen2
Reading / writing distance
Up to 15 m, depending on tag, antenna size, and environment
Communication interface
RS232, USB, Ethernet
Antenna interface
RU6504: SMA x4; RU6508: SMA x8
Specification Notes
- Confirm the required antenna count before selecting the model.
- Reader placement is designed together with antenna angle, shielding, and tag orientation.
- For jewelry, warehouse, or asset scenarios, the tag type is tested with the final reader-zone design.
Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
RFID & Reading
| Working frequency | 840-960 MHz |
|---|---|
| Supported standards | ISO 18000-6C / EPC Gen2 |
| Reading speed | > 400 reads per second |
| Card reading quantity | <= 600 tags / 3 seconds |
| Reading / writing distance | Up to 15 m, depending on tag, antenna size, and environment |
| RF power | 33 dBm +/- 1 dB adjustable |
Interface, Power & Physical
| Antenna interface | RU6504: SMA x4; RU6508: SMA x8 |
|---|---|
| Communication interface | RS232, USB, Ethernet |
| Power input | 12 V DC, <= 300 mA |
| Operating temperature | -20 C to 60 C |
| Physical size | 192 x 177 x 40 mm |
| Relative humidity | 10%-95% RH, non-condensing |

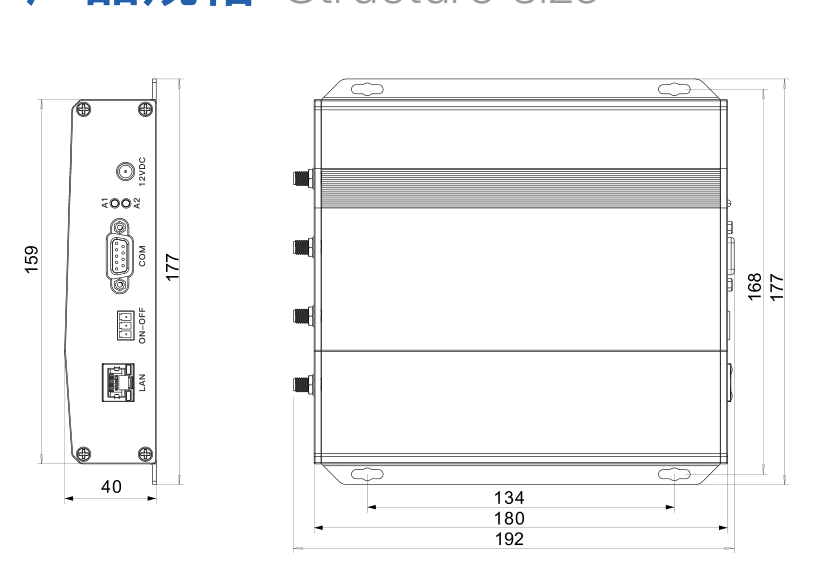

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
