Capabilities
- Desktop UHF reading format
- Useful for controlled close-range verification
- Can support tag commissioning before deployment into fixed zones
Back to RFID Tags & Devices

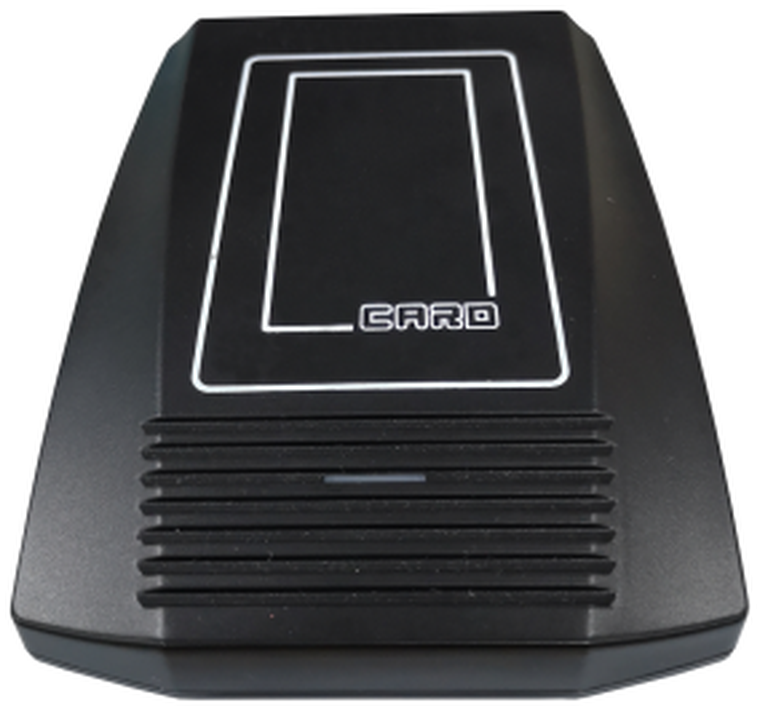

UHF Desktop Reader
RU6501
UHF Desktop Reader for Tag Issuing and Verification
A UHF desktop reader option for card issuing, tag verification, encoding workflows, and operator-side RFID checks.
Key parameters
Working frequency
840-960 MHz
Supported standards
ISO 18000-6C / EPC Gen2
Reading / writing distance
0-60 cm
Communication interface
USB
Physical size
102 x 140 x 35.5 mm
Specification Notes
- Desktop UHF behavior can vary by tag orientation, item material, and surrounding metal.
- Confirm if the workflow needs encoding, reading, or both.
- For production use, align encoding rules with middleware, ERP, or POS data fields.
Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
RFID & Reading
| Working frequency | 840-960 MHz |
|---|---|
| Supported standards | ISO 18000-6C / EPC Gen2 |
| Reading speed | > 400 reads per second |
| Reading / writing distance | 0-60 cm |
| RF power | 0-26 dBm adjustable |
| Working mode | Host control and active scanning |
Interface, Power & Physical
| Communication interface | USB |
|---|---|
| Power input | 5 V |
| Maximum power consumption | 3.5 W |
| Operating temperature | -20 C to 60 C |
| Physical size | 102 x 140 x 35.5 mm |
| Gross weight | Approx. 300 g |

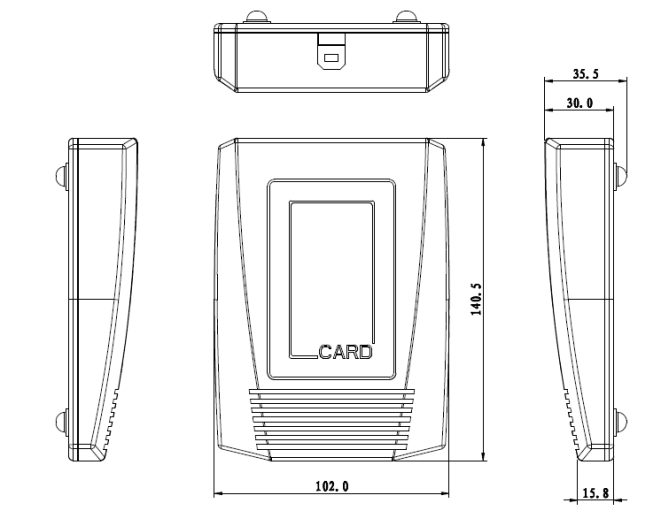

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
