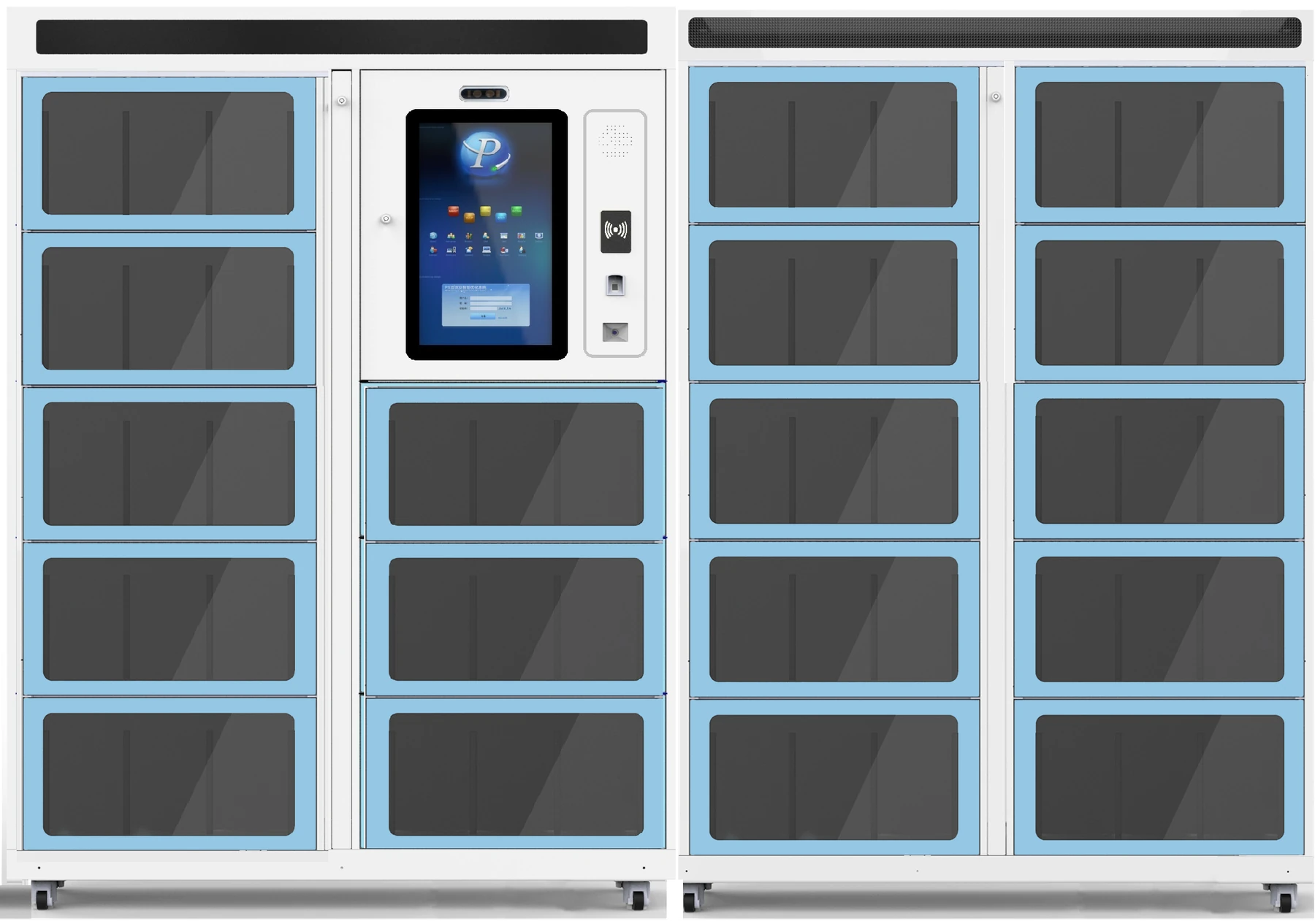

Library RFID Smart Book Cabinet
An indoor, unattended smart book cabinet for 24-hour library services, available in HF or UHF configurations and designed for borrowing, return, renewal, inquiry, compartment management, and service analytics.
Key parameters
Communication interface
Serial, USB, Ethernet; wired or Wi-Fi network; optional 4G/5G
Dimensions
Main and auxiliary cabinet: 1330 × 450 × 1948 mm each
Technical Data
Model parameters for product comparison and engineering review.
| RFID configuration | HF ISO 15693-3 or UHF ISO 18000-6C |
|---|---|
| Antenna arrangement | Four-antenna combination per shelf level |
| Read accuracy | ≥99.9% |
| Compartment crosstalk | ≤0.1% |
| Borrow / return time | <3 s; supports multiple books |
| Book location | Compartment-level localization with individual door management |
| Reader protection | Overtemperature, overcurrent, and short-circuit protection |
| Cabinet configuration | Five shelf levels; one main cabinet expandable with at least four auxiliary cabinets |
|---|---|
| Capacity | Main cabinet approx. 240–280 books; auxiliary cabinet approx. 300–350 books |
| Display | 21.5-inch capacitive touchscreen |
| Operating system options | Windows, Android, or domestic operating system |
| Communication interface | Serial, USB, Ethernet; wired or Wi-Fi network; optional 4G/5G |
| Authentication options | Multiple optional reader authentication methods |
| Firmware | Interface-based firmware update |
| Dimensions | Main and auxiliary cabinet: 1330 × 450 × 1948 mm each |
|---|---|
| Weight | Main cabinet 220 kg; auxiliary cabinet 200 kg |
| Power consumption | Main cabinet 120 W; auxiliary cabinet 60 W |
| Power supply | AC 110–230 V, 50 Hz |
| Material | Cold-rolled steel, thickness ≥1 mm |
| Installation | Indoor, floor-standing |
| Operating temperature | −20°C to +60°C |
| Storage temperature | −30°C to +80°C |
| Storage humidity | 10–98%, non-condensing |

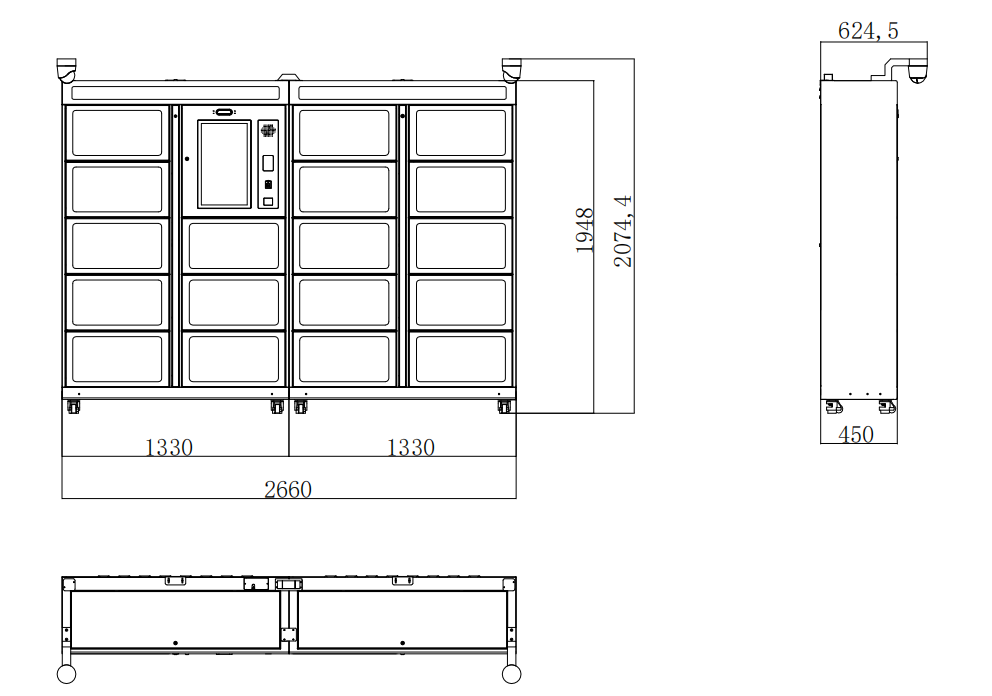

Mechanical Dimensions
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
