RFID Antenna

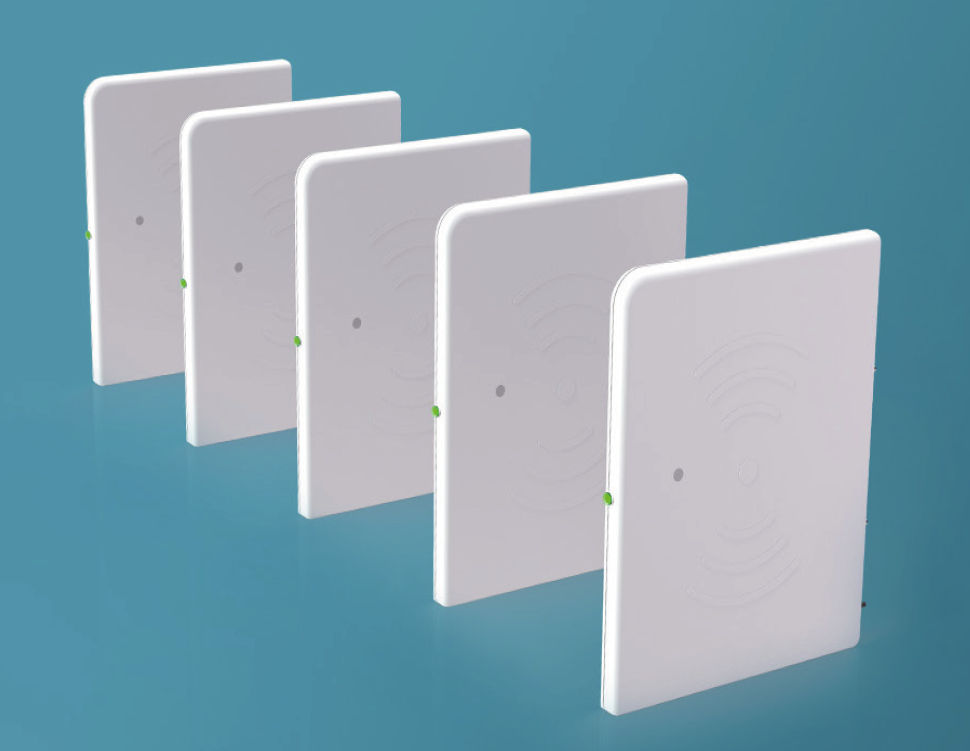

RTX1002
Structured Reading-Zone Antenna for Shelves and Equipment
A representative antenna asset for shelf, cabinet, plate, and structured reading-zone designs where field shape matters as much as reader power.
Key parameters
Working frequency
13.56 MHz
Standard support
ISO 15693
Connectors
MCX interface
Dimensions
210 x 16 x 255 mm
Specification Notes
- Antenna selection is tested against item material, tag orientation, and shelf geometry.
- Shielding and neighboring read zones can strongly affect final performance.
- Reader power alone cannot solve a poorly shaped read zone; antenna layout is a core design decision.
Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
RFID & Interface
| Working frequency | 13.56 MHz |
|---|---|
| Standard support | ISO 15693 |
| RF power support | 4 W or below |
| Connectors | MCX interface |
| Communication | TCP/IP |
| Tag requirements | Overlap area <= 50% for optimal performance |
Physical & Application
| Dimensions | 210 x 16 x 255 mm |
|---|---|
| Material | Premium ABS engineering plastic |
| Metal support | Yes |
| Applications | Smart libraries, chemical cabinets, retail shelves, canteens |
Mechanical Dimensions

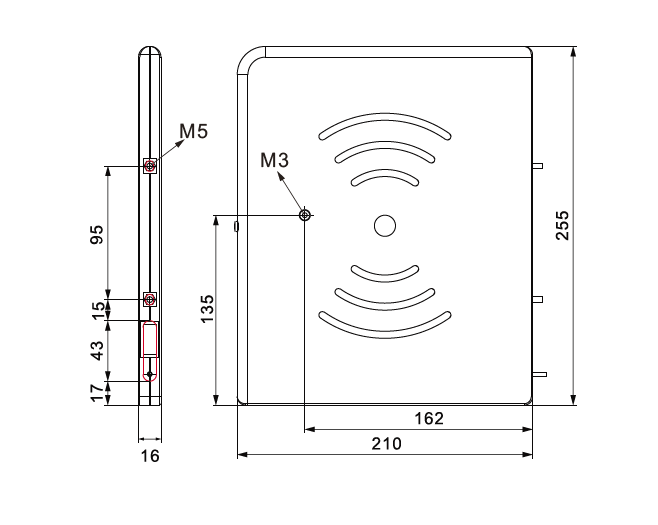

Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
