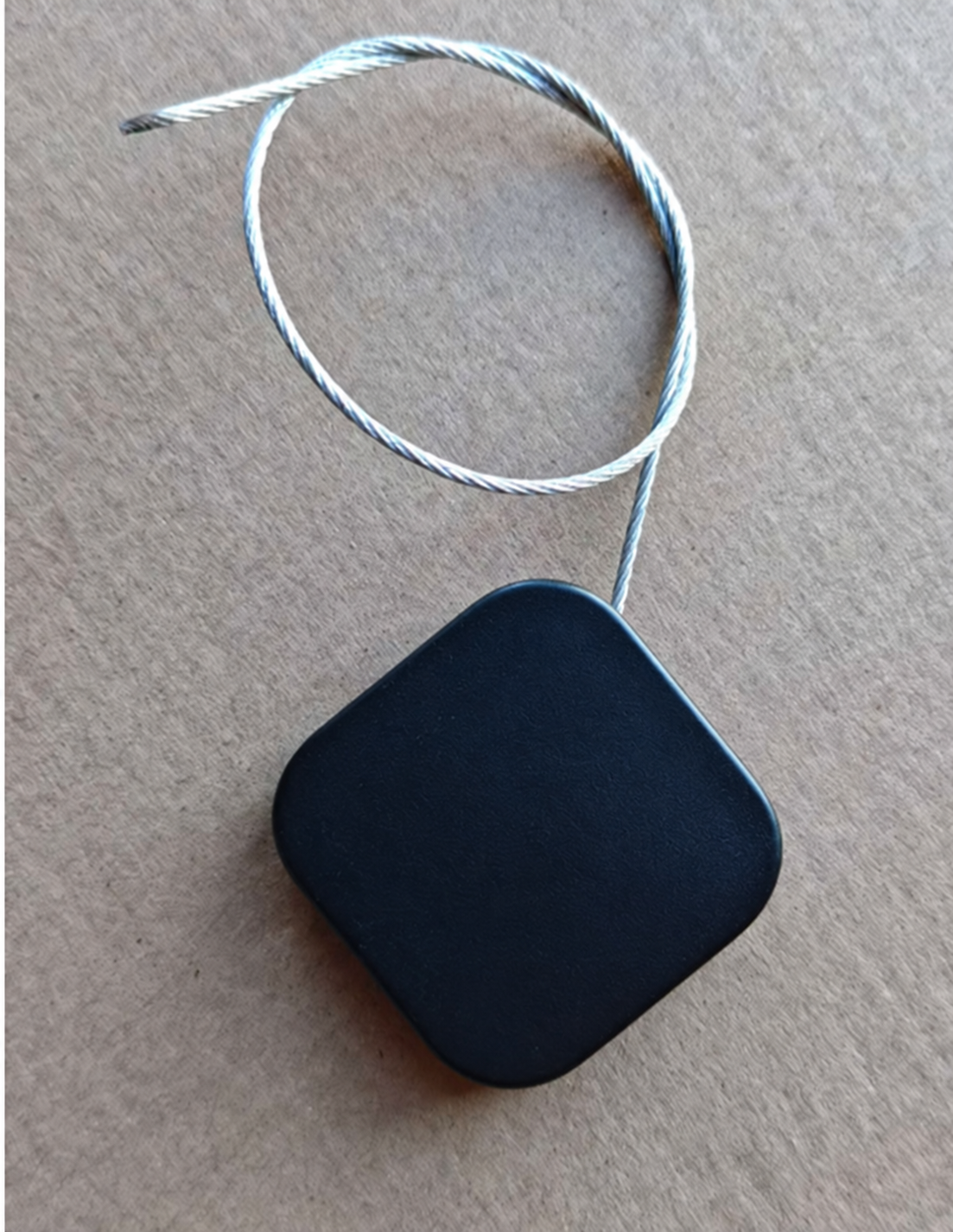

Industrial RFID Tag
Cable-lock UHF identification for sealed assets and controlled access
Key parameters
Product model
RQF-5050
Product name
Lead-Seal Lock Tag
Protocol
EPC Class 1 Gen 2 / ISO 18000-6C
Frequency
US 902-928 MHz; EU 865-868 MHz
Chip
NXP UCODE 8
Memory
EPC 128 bits; User 0 bits; TID 96 bits
Technical Data
Model parameters for product comparison and engineering review.
Product model
RQF-5050
Product name
Lead-Seal Lock Tag
Protocol
EPC Class 1 Gen 2 / ISO 18000-6C
Frequency
US 902-928 MHz; EU 865-868 MHz
Chip
NXP UCODE 8
Memory
EPC 128 bits; User 0 bits; TID 96 bits
Function
Read and write
Write endurance
100,000 cycles
Data retention
50 years
Reference read range
Up to 2.5 m in the US band
Body dimensions
50 x 50 x 5 mm
Material
ABS and PC
Color
Black
Installation
Lead-seal lock / steel cable
Weight
20.0 g
Ingress protection
IP65
Operating temperature
-40°C to +85°C
Storage temperature
-50°C to +85°C
Warranty
1 year
Drawing status
Dimension image is a reference schematic based on stated dimensions

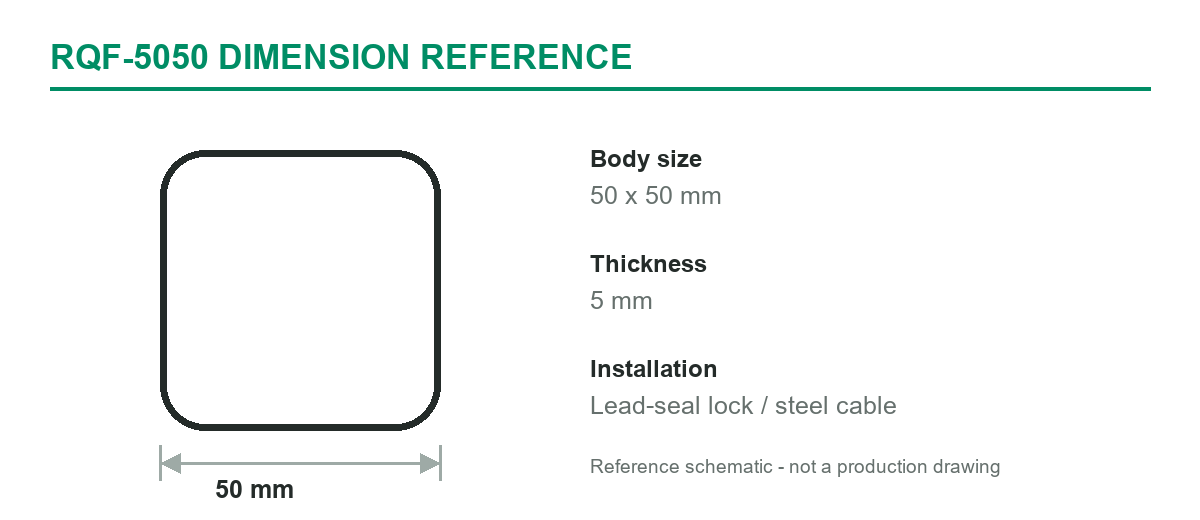

Mechanical Dimensions
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
