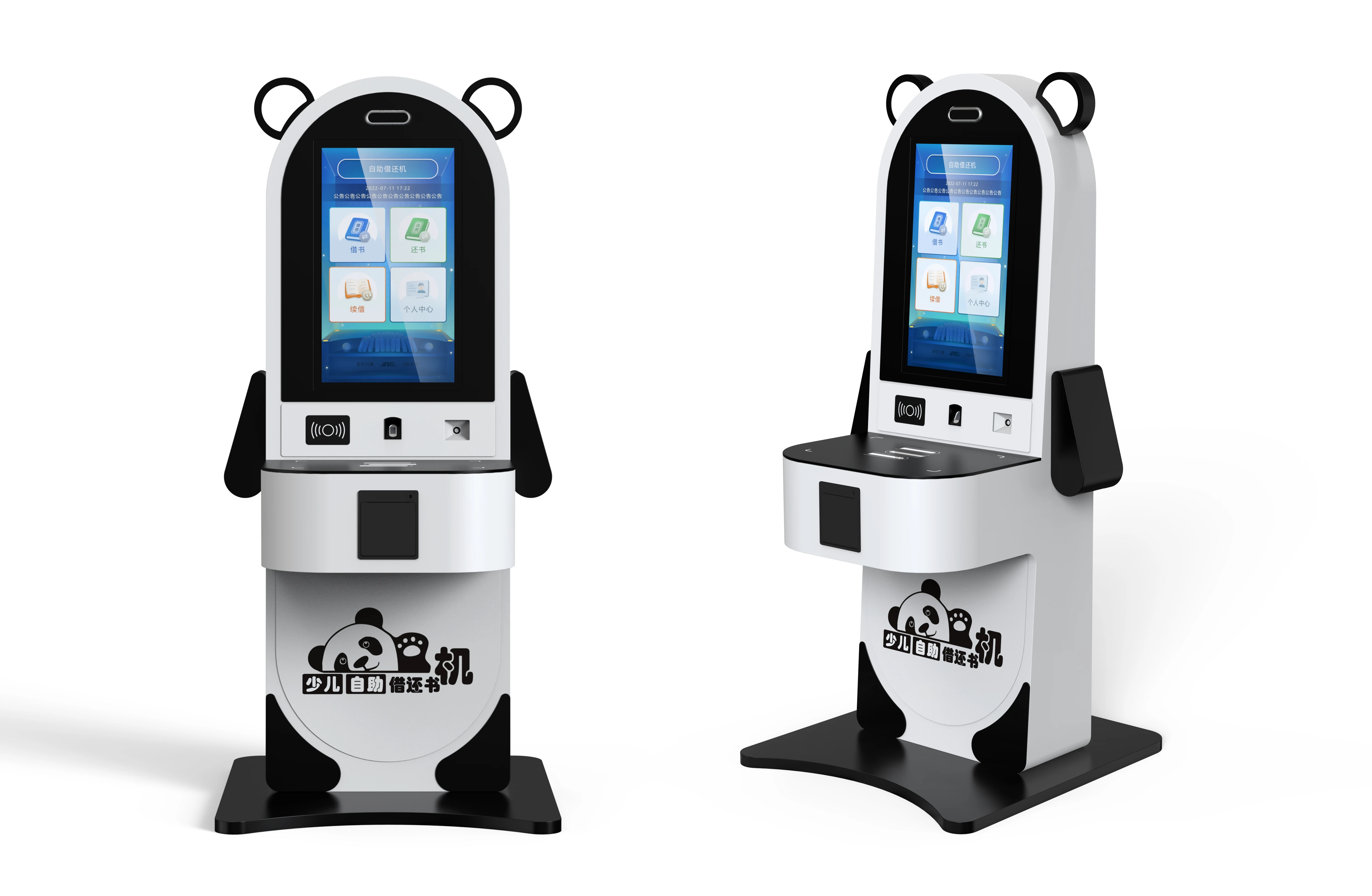

Children's RFID Self-Service Kiosk
RSK502
Children's RFID Self-Service Borrowing and Return Kiosk
A floor-standing RFID kiosk designed for children's library areas, with multi-book processing, a 21.5-inch touchscreen and configurable reader authentication.
Key parameters
Dimensions
1500 x 673 x 713 mm
Specification Notes
- Reading figures are based on documented test conditions using 10 mm books and prescribed tag placement.
- Computer, operating system, authentication and mobile-network options are configuration-dependent.
- Confirm the HF or UHF version before ordering.
Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
RFID & Book Handling
| RFID options | HF ISO 15693 or UHF ISO 18000-6C / EPCglobal Gen 2 |
|---|---|
| RF power | Adjustable |
| Multi-book reading | At least 10 books per operation |
| Borrow / return time | Under 1 second under documented test conditions |
| Read accuracy | At least 99.9% under documented test conditions |
Display & Integration
| Display | 21.5-inch embedded capacitive touchscreen |
|---|---|
| Operating system options | Windows, Android, HarmonyOS, Kylin or UOS |
| Android option | RK3568, 4 GB RAM, 32 GB storage, dual-band Wi-Fi 6, Android 11 |
| Windows option | Intel 8th generation or later, 8 GB RAM, 128 GB SSD, Windows 10 |
| Authentication options | Face, identity card, barcode/QR, reader card or fingerprint |
| Camera | 2 MP binocular camera |
| Network | Ethernet and Wi-Fi; 4G/5G optional |
| Printer | 80 mm thermal receipt printer |
| Ambient lighting | RGB ambient light |
Physical, Power & Environment
| Dimensions | 1500 x 673 x 713 mm |
|---|---|
| Package size | 1655 x 855 x 790 mm |
| Weight | 80 kg |
| Power consumption | 105 W |
| Material | Cold-rolled steel, at least 1 mm; white and black |
| Installation environment | Indoor |
| Operating temperature | -20°C to +60°C |
| Storage temperature | -30°C to +80°C |
| Storage humidity | 10-98%, non-condensing |

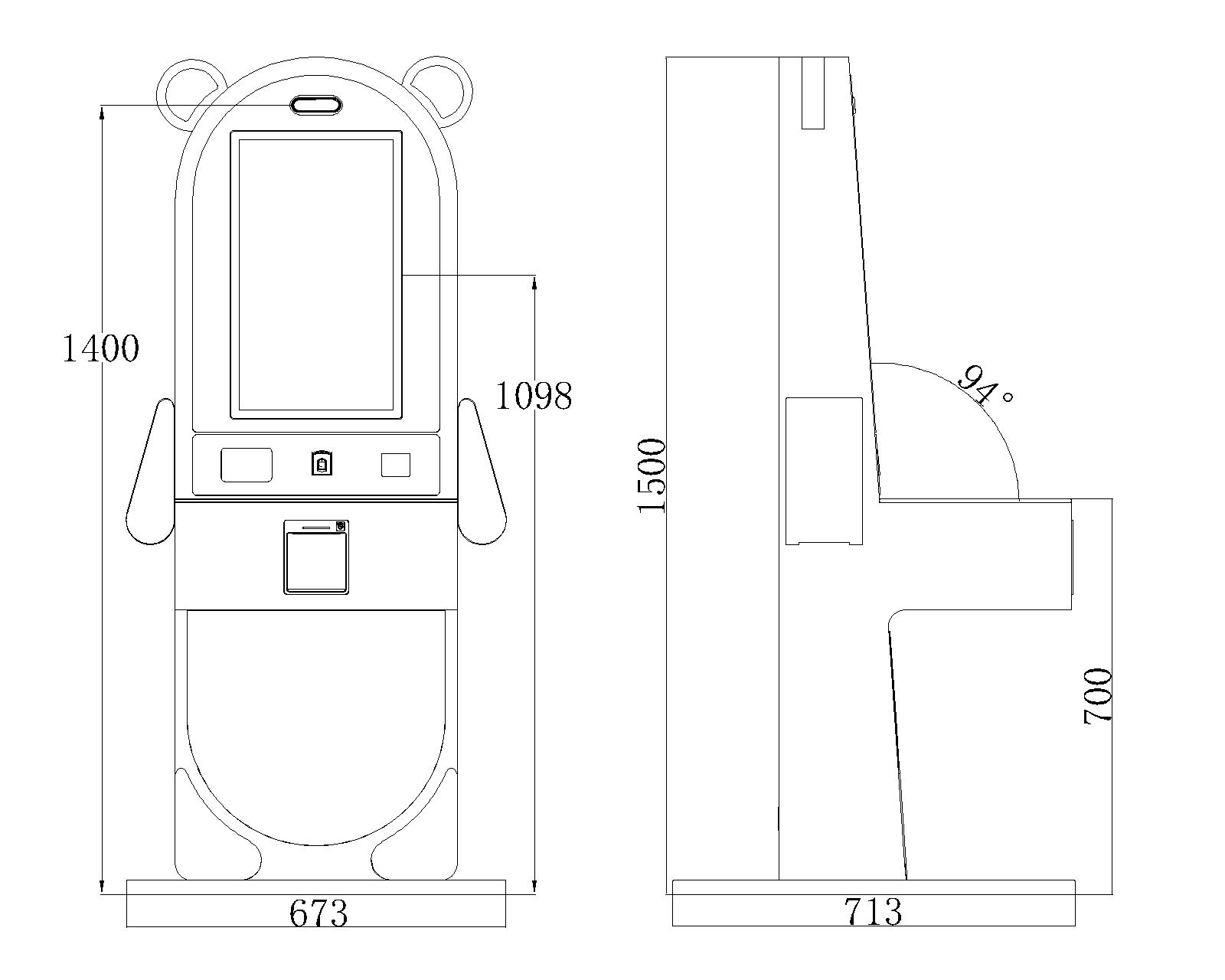

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
