RFID Self-Service Kiosk

RSK100

Floor-Standing RFID Self-Service Borrowing and Return Kiosk

A floor-standing library self-service kiosk for RFID book borrowing and return, with a 23.6-inch touchscreen and configurable reader authentication.

Key parameters

Dimensions

1607.9 x 531.4 x 624.8 mm

Reading figures are based on documented test conditions using 10 mm books and prescribed tag placement.
Operating system, authentication, printer access and mobile networking are configuration-dependent.
Confirm HF or UHF version before ordering.

Technical Data

Model parameters for product comparison and engineering review.

RFID options	HF ISO 15693-3 or UHF ISO 18000-6C / EPCglobal Gen 2
RF power	Adjustable
Multi-book reading	At least 10 books per operation
Borrow / return time	Under 1 second under documented test conditions
Read accuracy	At least 99.9% under documented test conditions

Display	23.6-inch 10-point capacitive touchscreen; 1920 x 1080
Operating system options	Windows, Android, HarmonyOS, Kylin or UOS
Authentication options	Face, barcode/QR, fingerprint, identity card or reader card
Network	Ethernet and Wi-Fi; 4G/5G optional
Printer	80 mm thermal receipt printer
Camera	2 MP binocular camera

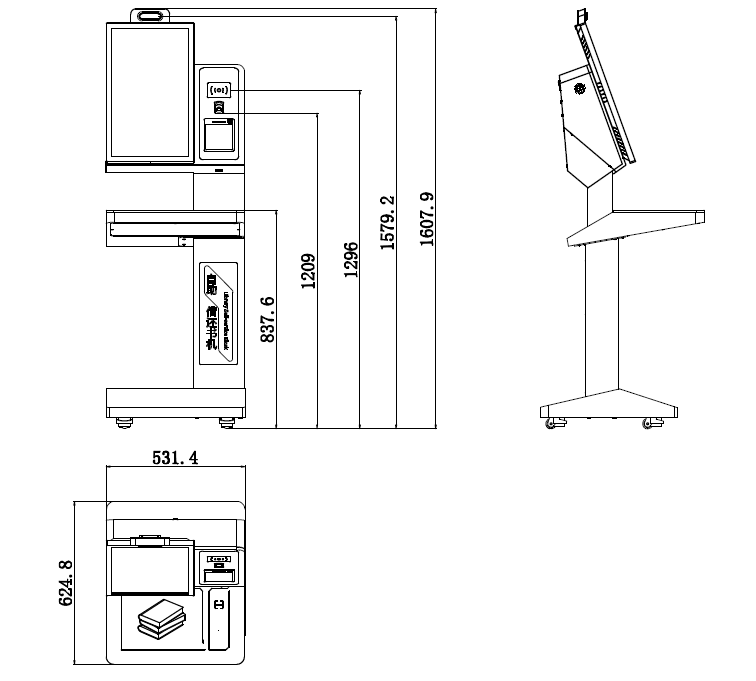

Mechanical Dimensions

Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.

Reference material: Product manual available for review.
