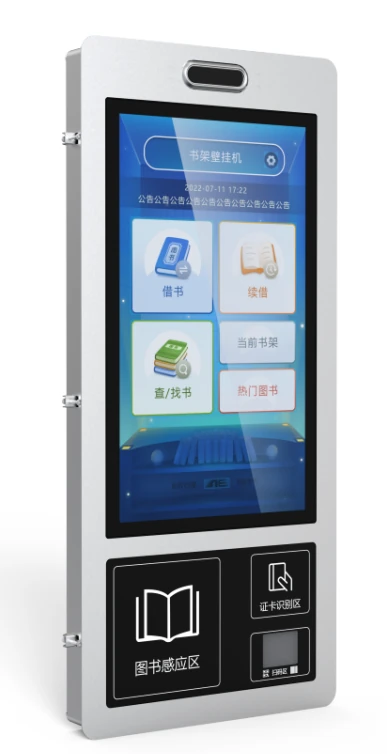

Embedded RFID Self-Service Kiosk

RSK603

Embedded RFID Self-Service Borrowing and Return Kiosk

A compact embedded RFID borrowing and return terminal designed for bookshelf integration and indoor self-service deployments.

Key parameters

Dimensions

817 x 368 x 58 mm

Reading figures are based on documented test conditions using 10 mm books and prescribed tag placement.
Operating system, authentication, reader-card zone and mobile networking are configuration-dependent.
Confirm cabinet opening and mounting method before ordering.

Technical Data

Model parameters for product comparison and engineering review.

RFID options	HF ISO 15693-3 or UHF ISO 18000-6C
RF power	Adjustable
Multi-book reading	At least 5 books per operation
Borrow / return time	Under 1 second under documented test conditions
Read accuracy	At least 99.9% under documented test conditions

Display	21.5-inch capacitive touchscreen
Operating system options	Windows, Android, HarmonyOS, Kylin or UOS
Authentication options	Face, identity card, barcode/QR or reader card
Camera	2 MP binocular camera
Network	Ethernet and Wi-Fi; 4G/5G optional
Reader-card zone	Optional ISO 15693 / ISO 14443A / ISO 14443B; 250 x 300 mm
External interfaces	DC input, power button, Wi-Fi, 2 x USB and Ethernet
Mounting	Embedded or external bookshelf mounting

Dimensions	817 x 368 x 58 mm
Package size	965 x 504 x 233 mm
Weight	Approx. 10 kg
Power adapter	12 V / 10 A; AC input 100-240 V
Power consumption	Approx. 60 W
Material	Cold-rolled steel; silver and black
Installation environment	Indoor
Operating temperature	-20°C to +60°C
Storage temperature	-30°C to +80°C
Storage humidity	10-98%, non-condensing

Mechanical Dimensions

Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.

Reference material: Product manual available for review.
