Capabilities
- Staff and patron operating modes
- HF or UHF multi-book reading
- Compact desktop installation
Back to RFID Tags & Devices

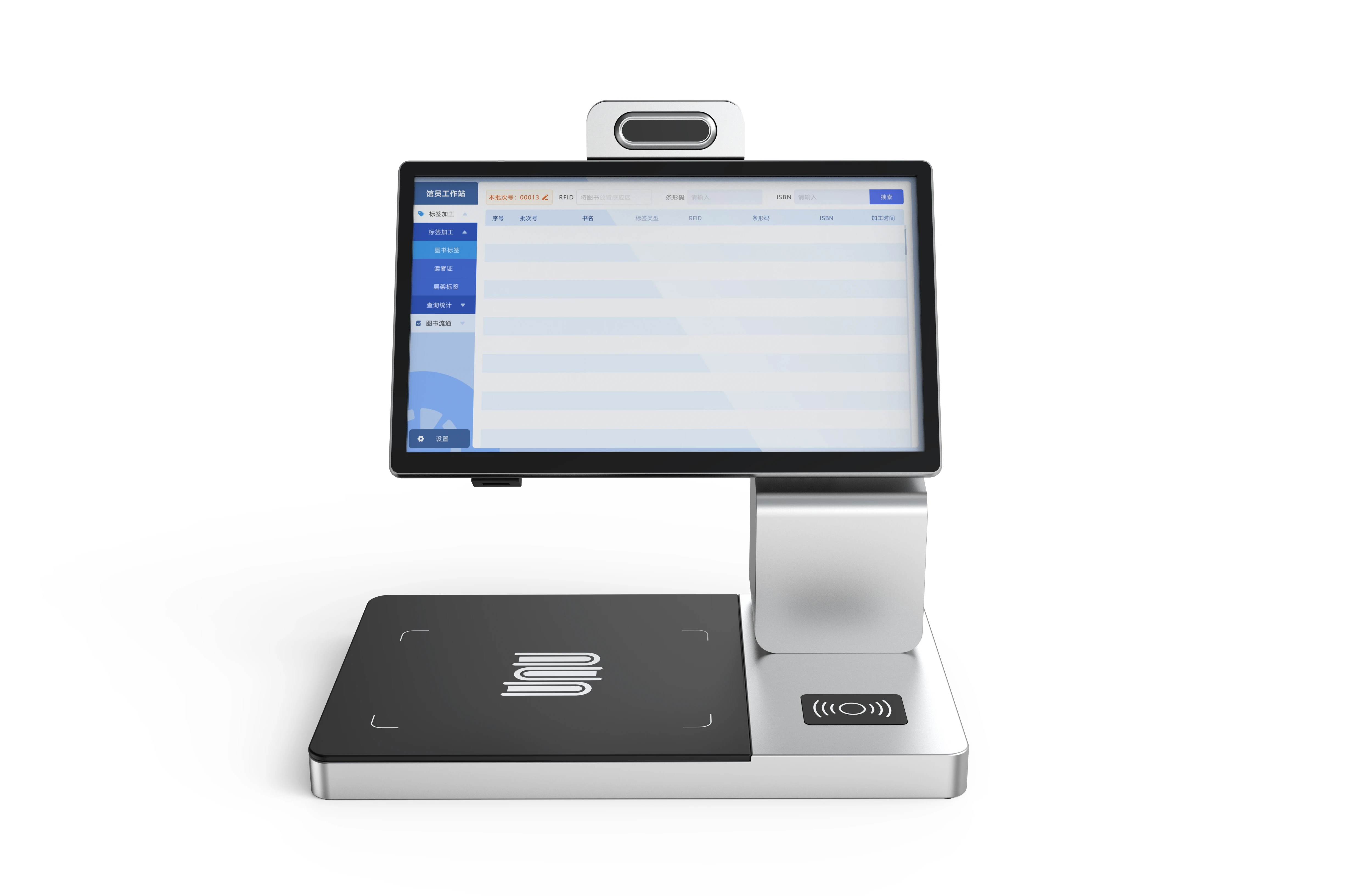

Desktop RFID Self-Service Kiosk
RSK203
Desktop RFID Borrowing, Return and Staff Workstation
A desktop RFID station for librarian processing or patron self-service, combining multi-book reading, a 21.5-inch touchscreen and configurable authentication.
Key parameters
Dimensions
560 x 536.6 x 350 mm
Specification Notes
- Reading figures are based on documented test conditions using 10 mm books and prescribed tag placement.
- Operating system, authentication and mobile networking are configuration-dependent.
- Confirm available countertop space before ordering.
Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
RFID & Book Handling
| RFID options | HF ISO 15693-3 or UHF ISO 18000-6C / EPCglobal Gen 2 |
|---|---|
| RF power | Adjustable |
| Multi-book reading | At least 10 books per operation |
| Borrow / return time | Under 1 second under documented test conditions |
| Read accuracy | At least 99.9% under documented test conditions |
| Application mode | Staff workstation or patron self-service |
Display, Communication & Integration
| Display | 21.5-inch full-lamination 10-point capacitive touchscreen; 1920 x 1080 |
|---|---|
| Operating system options | Windows, Android, HarmonyOS, Kylin or UOS |
| Authentication options | Face, barcode/QR, identity card or reader card |
| Network | Ethernet and Wi-Fi; 4G/5G optional |
| External interfaces | DC input, power button, 2 x USB, Ethernet and reserved 4G antenna interface |
| Camera | 2 MP binocular camera |
Physical, Power & Environment
| Dimensions | 560 x 536.6 x 350 mm |
|---|---|
| Package size | 634 x 753 x 603 mm |
| Weight | Approx. 20 kg |
| Power consumption | Approx. 75 W |
| Material | Cold-rolled steel, at least 1.2 mm |
| Installation environment | Indoor desktop |
| Operating temperature | -20°C to +60°C |
| Storage temperature | -30°C to +80°C |
| Storage humidity | 10-98%, non-condensing |

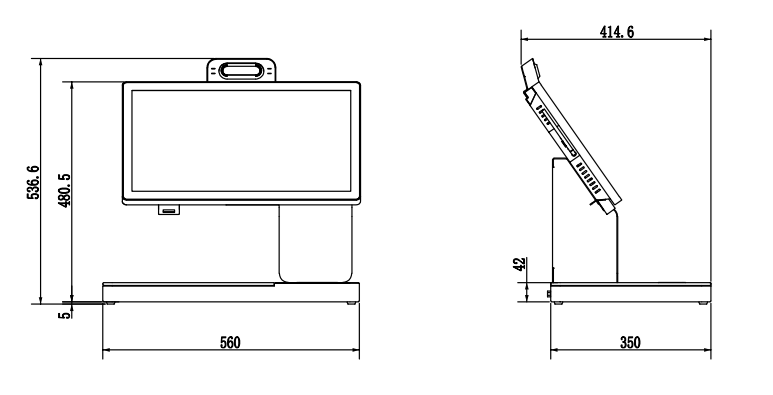

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
