RFID Antenna

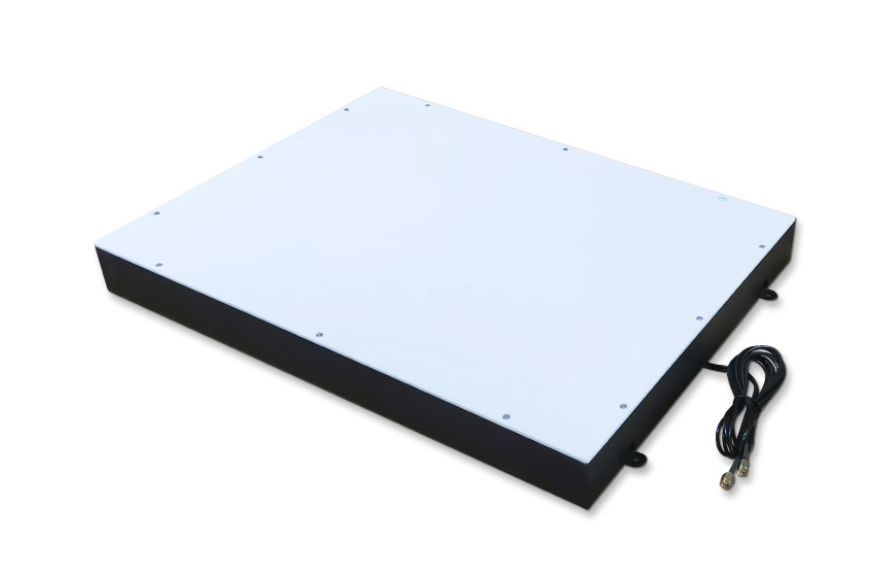

RTX1078

13.56 MHz HF smart tray antenna | Dual SMA feed

A defined HF reading surface for tray, counter and rapid-settlement workflows

Request product match View model index View product manual

Key parameters

Working Frequency

13.56 MHz

Standard Support

ISO 18000-3, ISO 15693

Reading Distance

Max 45cm (High Power) / 35cm (Mid Power)

Antenna Impedance

50 Ω

RF Interface

SMA x 2

Cable Length

2.5 meters

Technical Data

Technical specifications

Model parameters for product comparison and engineering review.

Antenna Parameters

Working Frequency	13.56 MHz
Standard Support	ISO 18000-3, ISO 15693
Reading Distance	Max 45cm (High Power) / 35cm (Mid Power)
Antenna Impedance	50 Ω
RF Interface	SMA x 2
Cable Length	2.5 meters

Physical & Environmental

Dimensions (LxWxH)	505 x 360 x 50 mm
Gross Weight	4300 g
Main Material	Porcelain White Acrylic, Sheet Metal
Operating Temp	-20°C to 60°C
Storage Temp	-40°C to 85°C
Waterproof Grade	No

Mechanical Dimensions

Physical size and structure drawing

Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
