Capabilities
- Compact module format for device integration
- Suitable for embedded reader-writer designs
- Can be matched with custom antennas, shielding, and host software
Back to RFID Tags & Devices

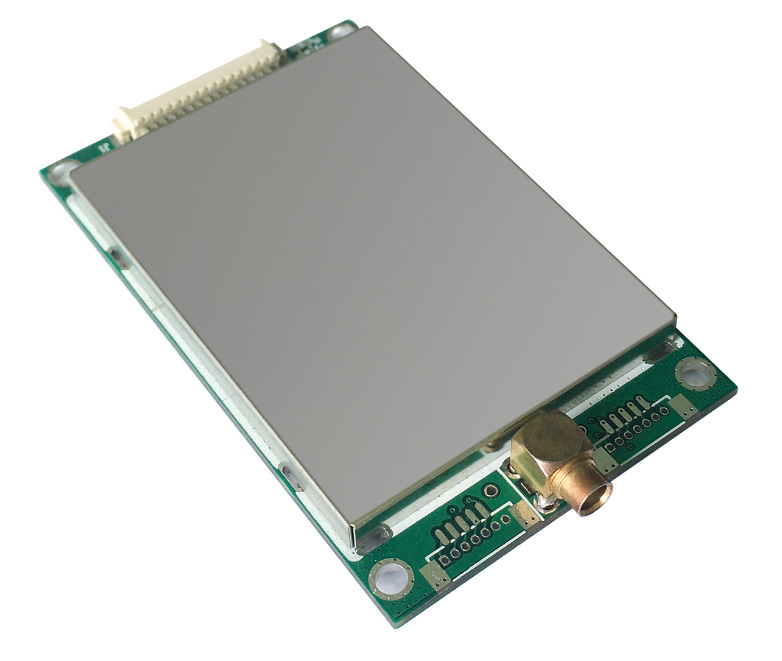

Reader Writer Module
RU6722
Embedded RFID Reader-Writer Module for Custom Equipment
A medium-power embedded reader-writer module for equipment builders, custom cabinets, kiosks, workflow devices, and integrated RFID hardware.
Key parameters
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO18000-3
Reading distance
Up to 65 cm
Communication interface
RS232
Physical size
73 x 45 x 8.5 mm
Specification Notes
- Confirm host interface, power budget, enclosure space, and heat behavior early.
- Antenna and module are validated together in the final device structure.
- For production devices, plan firmware, API, and serviceability requirements before enclosure tooling.
Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
RFID & Reading
| Working frequency | 13.56 MHz |
|---|---|
| Supported standards | ISO15693 and ISO18000-3 |
| Reading speed | <= 50 tags per second |
| Reading distance | Up to 65 cm |
| Antenna connector | MCX |
| RF power | 0.25-1.5 W configurable |
Interface, Power & Physical
| Communication interface | RS232 |
|---|---|
| Power input | 12 V DC, <= 400 mA |
| Maximum power consumption | 3.5 W |
| Operating temperature | -20 C to 60 C |
| Physical size | 73 x 45 x 8.5 mm |
| Gross weight | Approx. 31 g |

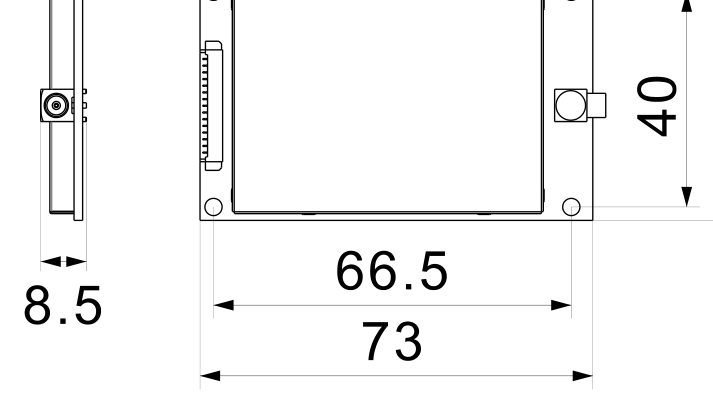

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
