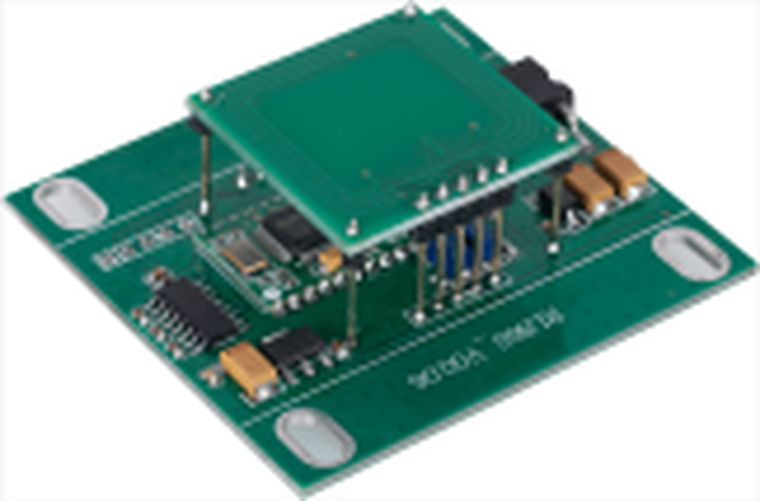

Reader Module
A compact RS232 module for integrating HF RFID and contactless-card reading
Key parameters
Product model
RU6204
Product name
HF Micro-Power Embedded Reader-Writer
Working frequency
13.56 MHz
Supported standards
ISO15693, ISO18000-3M3, ISO14443A
Reading speed
<= 50 tags per second
Reading distance
10 cm (ISO15693); 6 cm (ISO14443A)
Technical Data
Model parameters for product comparison and engineering review.
| Product model | RU6204 |
|---|---|
| Product name | HF Micro-Power Embedded Reader-Writer |
| Working frequency | 13.56 MHz |
| Supported standards | ISO15693, ISO18000-3M3, ISO14443A |
| Reading speed | <= 50 tags per second |
| Reading distance | 10 cm (ISO15693); 6 cm (ISO14443A) |
| Anti-collision processing | Supported |
| Multi-card reading | Supported |
| Supported cards | I Code ILT, I Code SLI, I Code SLIX, I Code SLIX2, Mifare S50/70 |
| Prompt sound | Buzzer, when enabled |
| Communication interface | RS232 |
| Waterproof | Not supported |
| Operating temperature | -20 C to 60 C |
|---|---|
| Storage temperature | -40 C to 85 C |
| Maximum power consumption | 1.6 W |
| Power input | 12 V DC |
| Relative humidity | 10%-95% RH, non-condensing |
| Physical size | 57 x 60 x 23 mm |
| Package size | 425 x 303 x 60 mm |
| Gross weight | Approx. 50 g |

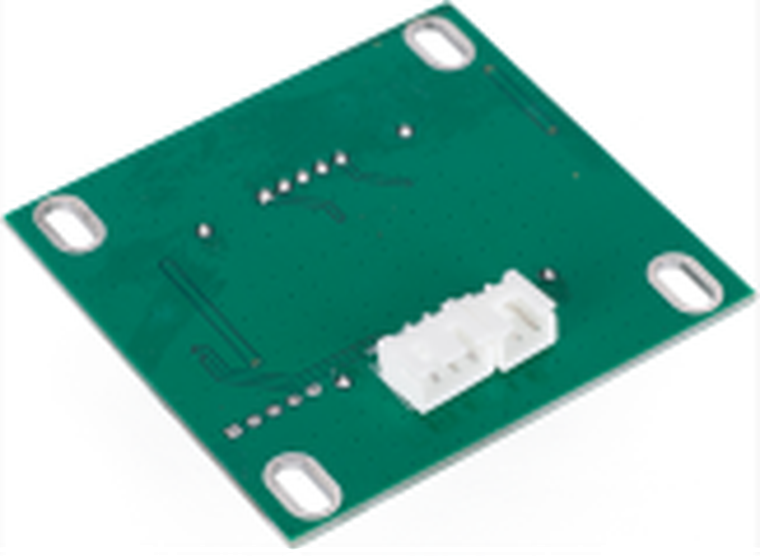

Mechanical Dimensions
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
