Reader Module

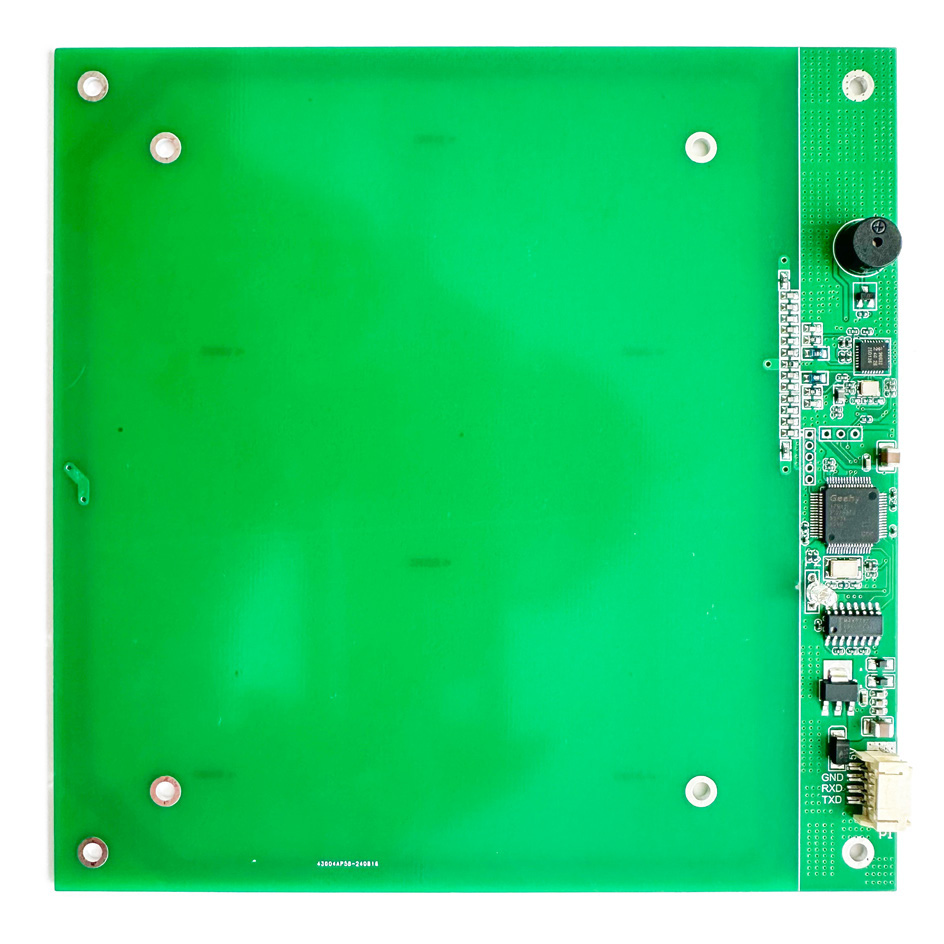

A thin 150 mm embedded antenna-board module with RS232 or USB integration
Key parameters
Product model
RU6206
Product name
HF Micro-Power Embedded Reader-Writer
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO14443A
Reading speed
<= 20 tags per second
Reading distance
>= 15 cm (ISO15693); >= 8 cm (ISO14443A)
Technical Data
Model parameters for product comparison and engineering review.
| Product model | RU6206 |
|---|---|
| Product name | HF Micro-Power Embedded Reader-Writer |
| Working frequency | 13.56 MHz |
| Supported standards | ISO15693 and ISO14443A |
| Reading speed | <= 20 tags per second |
| Reading distance | >= 15 cm (ISO15693); >= 8 cm (ISO14443A) |
| Anti-collision processing | Supported |
| Multi-card reading | Supported |
| Supported cards | I Code ILT, I Code SLI, I Code SLIX, I Code SLIX2, NTAG21x, Mifare S50/70 |
| Prompt sound | Buzzer, when enabled |
| Communication interface | RS232 or USB |
| Material | PCB |
| Waterproof | Not supported |
|---|---|
| Operating temperature | -20 C to 60 C |
| Storage temperature | -40 C to 85 C |
| Maximum power consumption | 0.6 W |
| Power input | 5 V, USB |
| Relative humidity | 10%-95% RH, non-condensing |
| Physical size | 150 x 150 x 8 mm |
| Gross weight | Approx. 150 g |

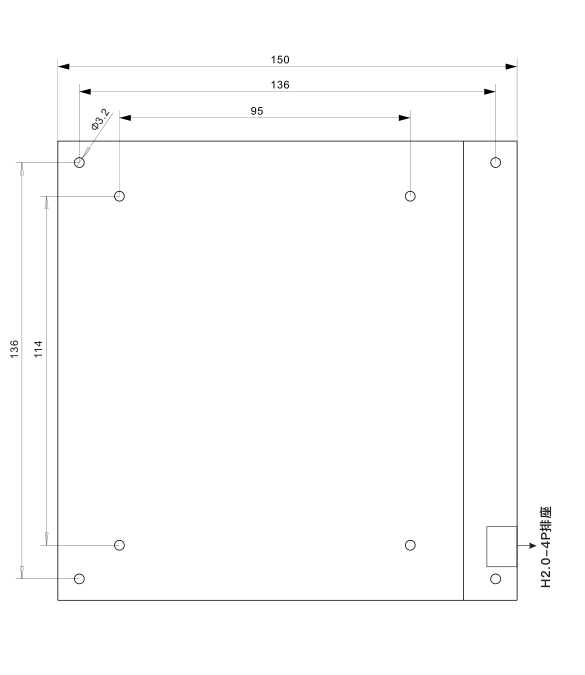

Mechanical Dimensions
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
