Capabilities
- Recognizes tagged-item entry and exit direction
- Uses dynamic multi-beam sector scanning with radar triggering
- Supports passage counting, whitelist control, and multicolor sound-and-light alarms
Back to RFID Tags & Devices
Overhead UHF RFID Access System
RX-IPA300
Overhead Phased-Array RFID Access System for Retail
An overhead UHF RFID system for jewelry and apparel retail, combining tagged-item movement detection, entry/exit direction recognition, passage counting, and configurable sound-and-light alarms.
Key parameters
Working frequency
902–928 MHz
Supported standards
EPCglobal Gen 1/2; ISO 18000-6C
Communication interface
Ethernet; Wi-Fi optional
Dimensions
700 × 400 × 66 mm, excluding mounting bracket
Specification Notes
- Identification performance must be verified with the final tag, merchandise material, mounting height, and store layout.
- The stated effective area is a source reference; surrounding metal, reflections, tag orientation, and traffic patterns can change results.
- Wi-Fi is optional. Confirm network, alarm, whitelist, and host-system integration requirements before ordering.
Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
RFID & Detection
| Working frequency | 902–928 MHz |
|---|---|
| Supported standards | EPCglobal Gen 1/2; ISO 18000-6C |
| RF power | 1–33 dBm, adjustable |
| Reading speed | Up to 700 tags/s |
| Polarization | Circularly polarized phased-array antenna |
| Coverage | 140° main axis; 90° secondary axis; up to 30 m² effective identification area |
| Trigger area | ±3 m on Y axis; ±3 m on X axis |
| Whitelist capacity | 100,000 tags |
System & Installation
| Communication interface | Ethernet; Wi-Fi optional |
|---|---|
| Direction recognition | Single-axis entry/exit direction recognition |
| Trigger method | Radar trigger |
| Beam scan time | 60 ms |
| Antenna gain | 13 dBi |
| Installation | Standard suspended ceiling installation |
| Installation height | 2.5–3 m |
| Multi-device linkage | Supported for wider passages |
| Firmware | Remote firmware upgrade and configuration |
Power, Physical & Environment
| Power supply | AC 100–240 V, 50/60 Hz |
|---|---|
| Power consumption | ≤35 W |
| Dimensions | 700 × 400 × 66 mm, excluding mounting bracket |
| Weight | Approx. 8 kg |
| Operating temperature | −20°C to +50°C |
| Storage temperature | −30°C to +60°C |
| Relative humidity | Up to 95%, non-condensing |

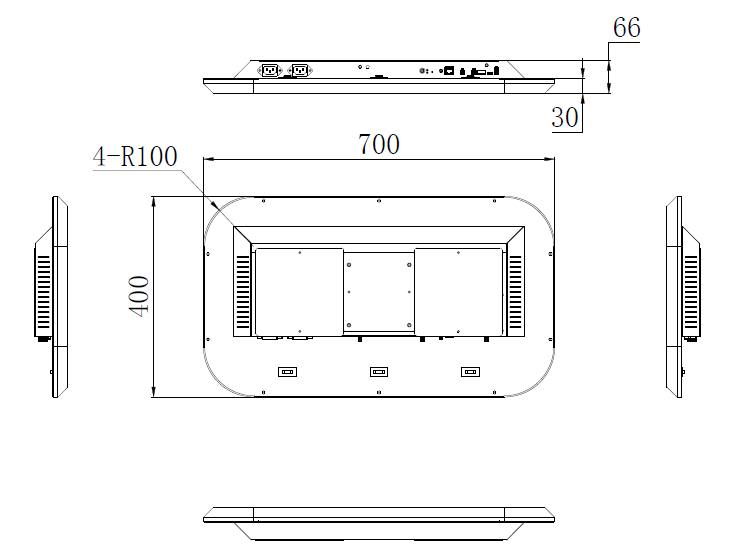

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
