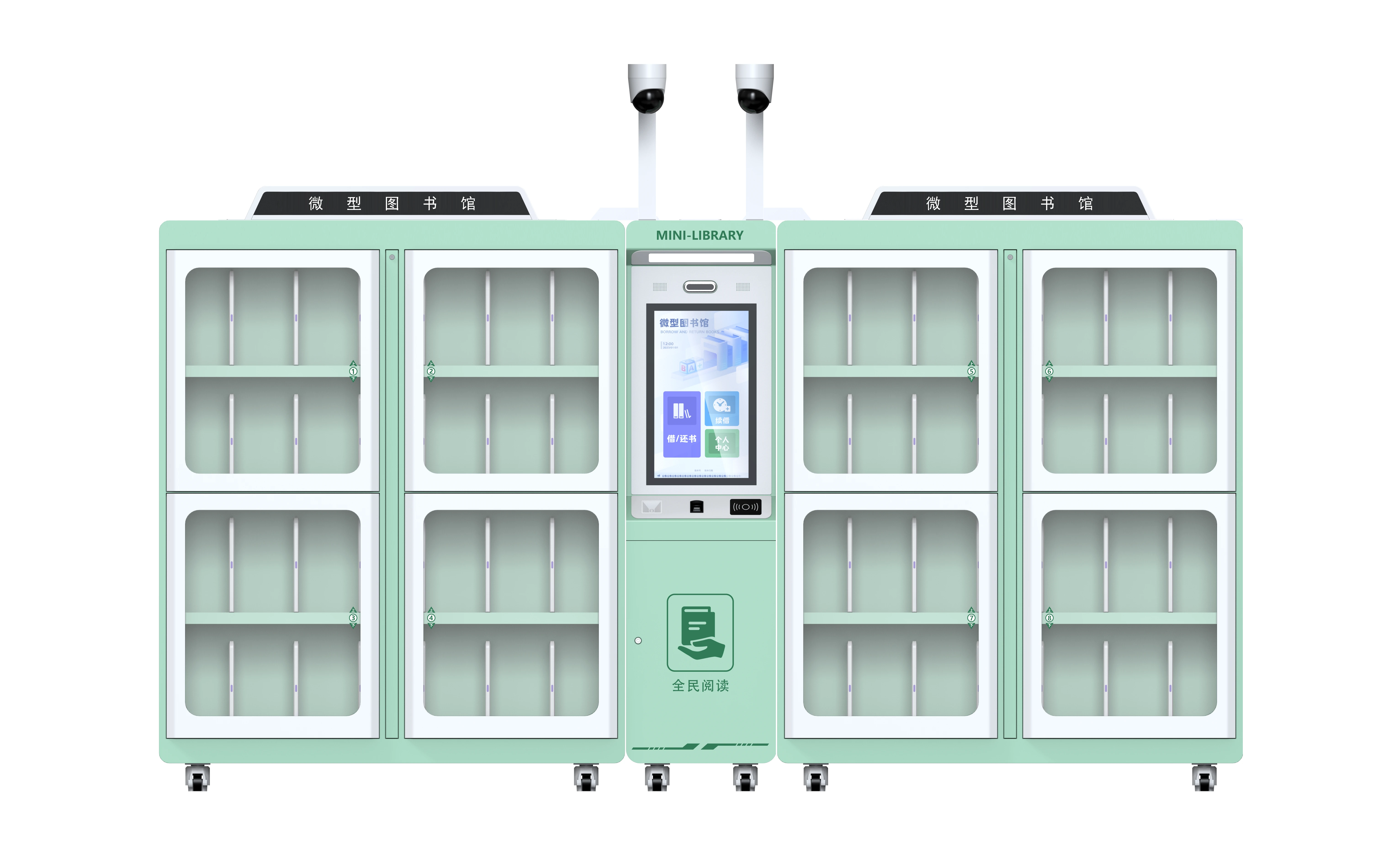

RFID Smart Book Cabinet
RMS401G
Expandable RFID Smart Book Cabinet for Unattended Library Service
An indoor 24-hour unattended smart book cabinet supporting borrowing, return, renewal, inquiry and data-analysis workflows with HF or UHF RFID.
Key parameters
Dimensions
Main cabinet 430 x 450 x 1632 mm; auxiliary cabinet 1330 x 450 x 1632 mm
Specification Notes
- Capacity is based on documented test conditions and book thickness.
- Monitoring, LED display and disinfection are optional.
- Final dimensions depend on the selected cabinet configuration.
Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
RFID & Book Handling
| RFID options | HF ISO 15693-3 or UHF ISO 18000-6C / EPCglobal Gen 2 |
|---|---|
| Antenna arrangement | Four antennas per shelf level |
| Read accuracy | At least 99.9% |
| Compartment crosstalk | No more than 0.1% |
| Borrow / return time | Under 3 seconds; supports multiple books |
| Book location | Compartment-level location and independent door management |
Cabinet, System & Connectivity
| Cabinet configuration | Four levels; one main cabinet supports at least four auxiliary cabinets |
|---|---|
| Book capacity | Approx. 240-320 books per cabinet |
| Display | 21.5-inch capacitive touchscreen |
| Operating system options | Windows, Android, HarmonyOS, Kylin or UOS |
| Communication | Serial, USB and Ethernet |
| Network | Wired or Wi-Fi; 4G/5G optional |
| Monitoring system | Optional 24-hour video monitoring |
| Optional modules | LED advertising display and book disinfection |
Physical, Power & Environment
| Dimensions | Main cabinet 430 x 450 x 1632 mm; auxiliary cabinet 1330 x 450 x 1632 mm |
|---|---|
| Power input | AC 110-230 V, 50 Hz |
| Power consumption | Main cabinet 68 W; auxiliary cabinet 48 W |
| Weight | Main cabinet 60 kg; auxiliary cabinet 160 kg |
| Material | Cold-rolled steel, at least 1 mm |
| Operating temperature | -20°C to +60°C |
| Storage temperature | -30°C to +80°C |
| Storage humidity | 10-98%, non-condensing |

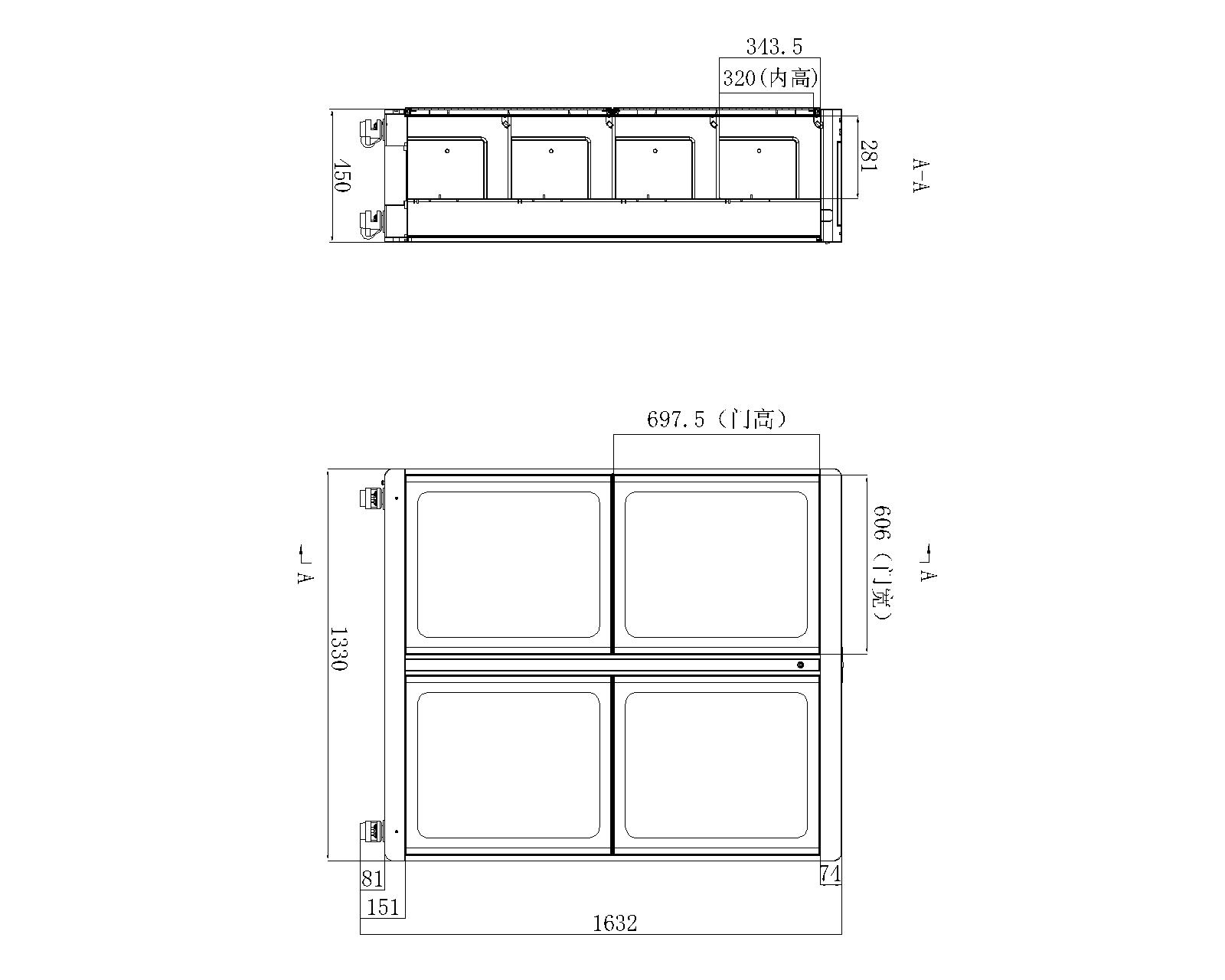

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
