Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
Technical Specifications

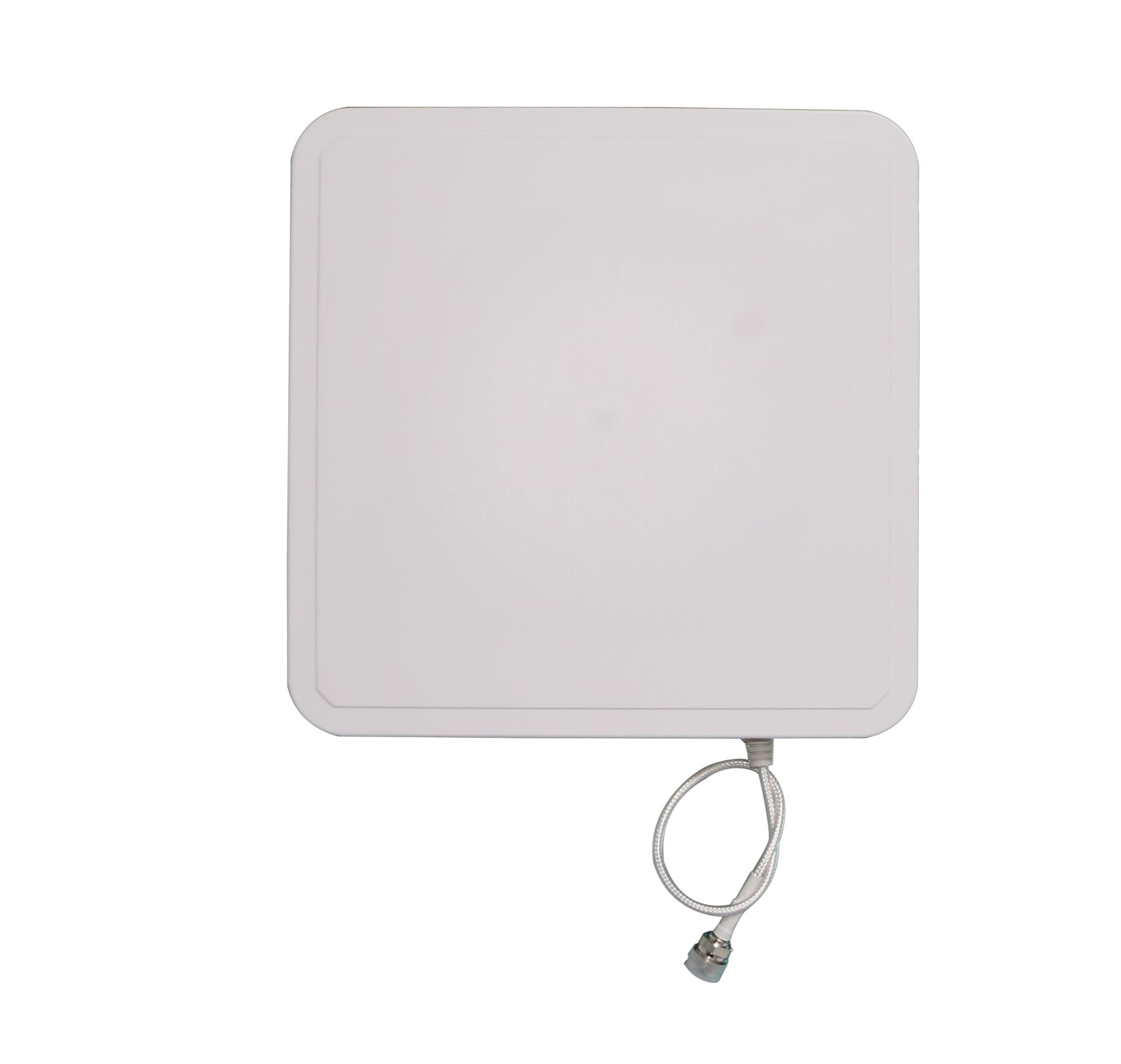

| Product model | RTX1009 |
|---|
| Product category | RFID antenna |
|---|
| Frequency range | 840 MHz-960 MHz |
|---|
| Polarization | circular polarization |
|---|
| Gain | ＞9 dBi |
|---|
| H-plane HPBW | 70 degrees |
|---|
| E-plane HPBW | 60 degrees |
|---|
| Impedance | 50 Ω |
|---|
| VSWR | ≤1.4 |
|---|
| Connector type | SMA |
|---|
| Connector position | rear feed |
|---|
| Dimensions | 258 mm x 258 mm x 40 mm |
|---|
| Weight | 1000 g (excluding bracket) |
|---|
| Material | engineering plastic ABS + aluminum profile |
|---|
| Housing color | White |
|---|
| Installation | pole mounting (maximum pole diameter 50 mm) |
|---|
| Operating temperature | -20 C to + 60 C |
|---|
| Ingress protection | IP65 |
|---|
