HF Reader
A standard-size anti-metal HF desktop reader for repeatable workstation operation
Key parameters
Product model
RU6109
Product name
HF Medium-Power Desktop Reader-Writer
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO18000-3
Reading speed
<= 50 tags per second
Reading distance
Up to 40 cm
Technical Data
Model parameters for product comparison and engineering review.
| Product model | RU6109 |
|---|---|
| Product name | HF Medium-Power Desktop Reader-Writer |
| Working frequency | 13.56 MHz |
| Supported standards | ISO15693 and ISO18000-3 |
| Reading speed | <= 50 tags per second |
| Reading distance | Up to 40 cm |
| Working mode | Host control and scanning, configurable by software |
| Adjacent read range | <= 10 cm |
| Energy saving | Automatic RF shutdown while idle |
| Anti-metal design | Yes |
| Prompt sound | Buzzer, when enabled |
| RF power | 0.25-1.5 W configurable |
| Housing material | Tempered-glass panel, aluminum alloy |
|---|---|
| Noise detection | Supported |
| Waterproof | Not supported |
| Communication interface | RS232, USB |
| Operating temperature | -20 C to 60 C |
| Storage temperature | -40 C to 85 C |
| Maximum power consumption | 3.5 W |
| Power input | 12 V DC |
| Relative humidity | 10%-95% RH, non-condensing |
| Anti-collision processing | Supported |
| Physical size | 413.5 x 300 x 25 mm |
| Package size | 475 x 405 x 85 mm |
| Gross weight | Approx. 2950 g |

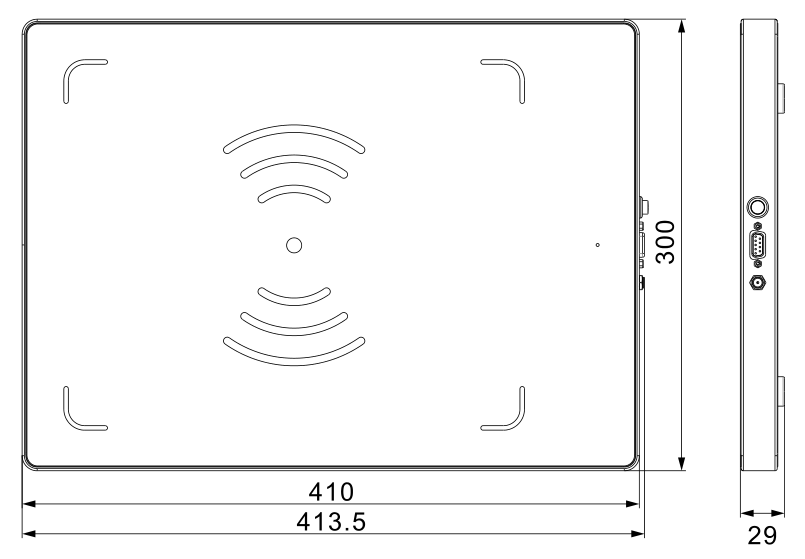

Mechanical Dimensions
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
