HF Reader

RU6601 / RU6602 / RU6604 / RU6608

13.56 MHz medium-power multi-channel HF reader series

Shared reader platform with 1, 2, 4 or 8 antenna-port configurations

Request product match View model index View product manual

Key parameters

Product model

RU6601 / RU6602 / RU6604 / RU6608

Product name

HF Medium-Power Reader-Writer Series

Working frequency

13.56 MHz

Supported standards

ISO15693 and ISO18000-3

Reading speed

<= 65 tags per second

Reading distance

Up to 65 cm, depending on tag, antenna size, and environment

Technical Data

Technical specifications

Model parameters for product comparison and engineering review.

Product Parameters

Product model	RU6601 / RU6602 / RU6604 / RU6608
Product name	HF Medium-Power Reader-Writer Series
Working frequency	13.56 MHz
Supported standards	ISO15693 and ISO18000-3
Reading speed	<= 65 tags per second
Reading distance	Up to 65 cm, depending on tag, antenna size, and environment
Antenna interface	RU6601: SMA x1; RU6602: SMA x2; RU6604: SMA x4; RU6608: SMA x8
RF power	0.25-1.5 W configurable
Noise detection	Supported
Communication interface	RS232, USB
Working mode	Host control and scanning, configurable by software
Anti-collision processing	Supported

Interface, Power & Environment

Energy saving	Automatic RF shutdown while idle
Prompt sound	Buzzer, when enabled
Housing material	Aluminum alloy
Waterproof	Not supported
Relay	1 channel
Power input	12 V DC, <= 300 mA
Physical size	141 x 105 x 25 mm
Package size	255 x 205 x 70 mm
Gross weight	Approx. 300 g; RU6608 approx. 350 g
Operating temperature	-20 C to 60 C
Storage temperature	-40 C to 85 C
Relative humidity	10%-95% RH, non-condensing

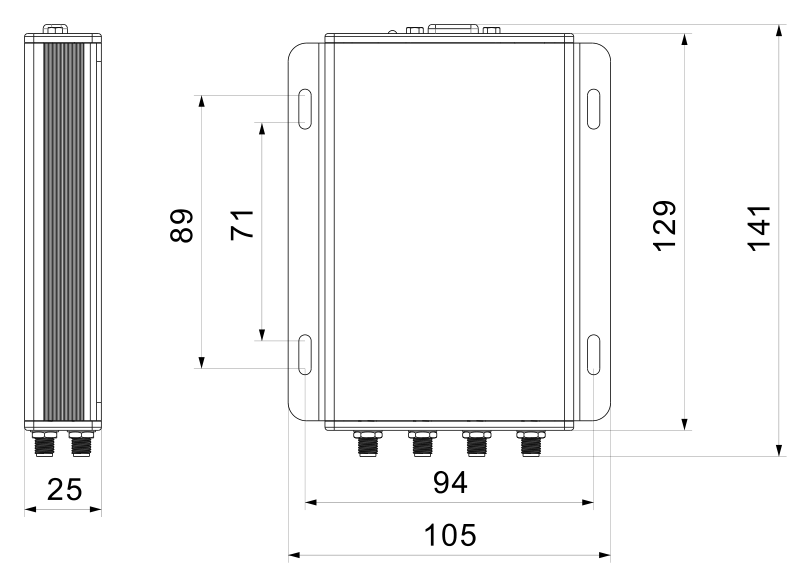

Mechanical Dimensions

Physical size and structure drawing

Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.

RU6601 / RU6602 / RU6604 / RU6608 mechanical dimensions
