HF Reader

RU6801 / RU6805 / RU6810 / RU6815

13.56 MHz high-power multi-channel HF reader series

Shared reader platform with 1, 5, 10 or 15 antenna-port configurations

Request product match View model index View product manual

Key parameters

Product model

RU6801 / RU6805 / RU6810 / RU6815

Product name

HF High-Power Reader-Writer Series

Working frequency

13.56 MHz

Supported standards

ISO15693 and ISO18000-3

Reading speed

<= 65 tags per second

Card reading quantity

<= 300 tags per cycle

Technical Data

Technical specifications

Model parameters for product comparison and engineering review.

Product Parameters

Product model	RU6801 / RU6805 / RU6810 / RU6815
Product name	HF High-Power Reader-Writer Series
Working frequency	13.56 MHz
Supported standards	ISO15693 and ISO18000-3
Reading speed	<= 65 tags per second
Card reading quantity	<= 300 tags per cycle
Reading distance	Up to 90 cm, depending on tag, antenna size, and environment
Antenna interface	RU6801: SMA x1; RU6805: SMA x5; RU6810: SMA x10; RU6815: SMA x15
RF power	1-8 W configurable
Noise detection	Supported
Communication interface	RS232, RS485, Ethernet
Working mode	Host control and scanning, configurable by software

Interface, Power & Environment

Anti-collision processing	Supported
Energy saving	Automatic RF shutdown while idle
Prompt sound	Buzzer, when enabled
Housing material	Aluminum alloy
Waterproof	Not supported
Relay	1 channel
Power input	12 V DC, <= 300 mA
Physical size	192 x 177 x 40 mm
Package size	300 x 250 x 80 mm
Operating temperature	-20 C to 60 C
Storage temperature	-40 C to 85 C
Relative humidity	10%-95% RH, non-condensing

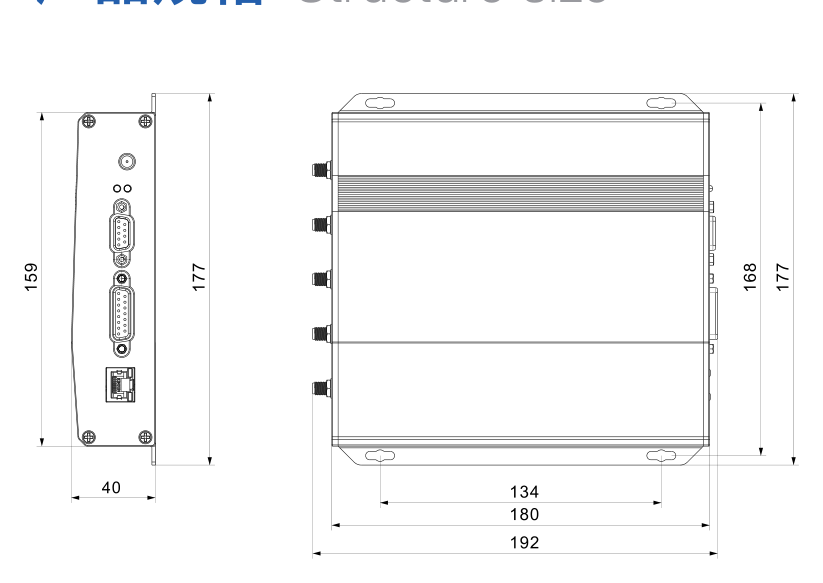

Mechanical Dimensions

Physical size and structure drawing

Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.

RU6801 / RU6805 / RU6810 / RU6815 mechanical dimensions
