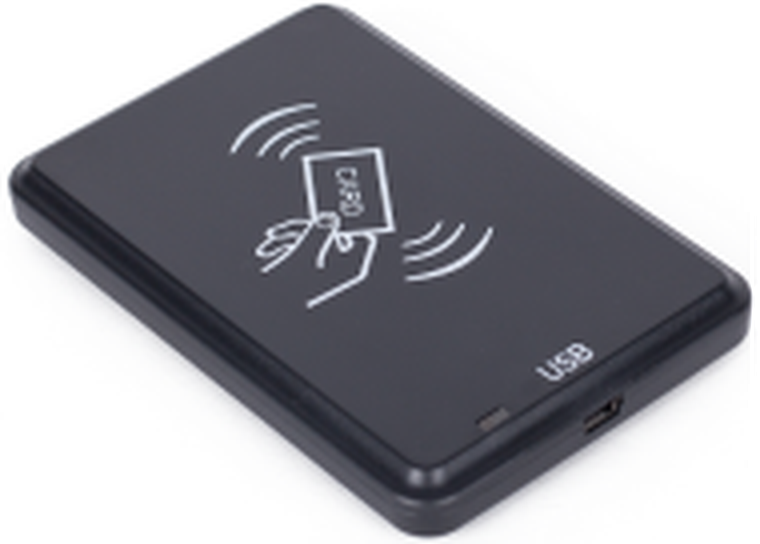

Reader Module
A slim USB-powered ISO 15693 reader for focused HF workflows
Key parameters
Product model
RU6202
Product name
HF Micro-Power Desktop Reader-Writer
Working frequency
13.56 MHz
Supported standards
ISO15693
Reading speed
<= 50 tags per second
Reading distance
16 cm (ISO15693)
Technical Data
Model parameters for product comparison and engineering review.
| Product model | RU6202 |
|---|---|
| Product name | HF Micro-Power Desktop Reader-Writer |
| Working frequency | 13.56 MHz |
| Supported standards | ISO15693 |
| Reading speed | <= 50 tags per second |
| Reading distance | 16 cm (ISO15693) |
| Anti-collision processing | Supported |
| Multi-card reading | Supported |
| Supported cards | I Code ILT, I Code SLI, I Code SLIX, I Code SLIX2 |
| Prompt sound | Buzzer, when enabled |
| Communication interface | USB |
| Housing material | ABS plastic |
| Waterproof | Not supported |
|---|---|
| Operating temperature | -20 C to 60 C |
| Storage temperature | -40 C to 85 C |
| Maximum power consumption | 0.6 W |
| Power input | 5 V, USB powered |
| Relative humidity | 10%-95% RH, non-condensing |
| Physical size | 105 x 70 x 10 mm |
| Package size | 425 x 303 x 60 mm |
| Gross weight | Approx. 50 g |
Mechanical Dimensions
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
