UHF Reader

RU6520

Embedded UHF reader-writer panel | Integrated antenna and configurable RF output

A thin embedded reading surface for cabinets, counters and custom equipment

Request product match View model index View product manual

Key parameters

Product model

RU6520

Product name

UHF Embedded Reader-Writer

Working frequency

840-960 MHz

Supported standards

ISO 18000-6C

Reading speed

> 400 reads per second

Reading / writing distance

0-600 cm

Technical Data

Technical specifications

Model parameters for product comparison and engineering review.

Product Parameters

Product model	RU6520
Product name	UHF Embedded Reader-Writer
Working frequency	840-960 MHz
Supported standards	ISO 18000-6C
Reading speed	> 400 reads per second
Reading / writing distance	0-600 cm
Working mode	Host control and scanning, configurable by software
Anti-metal design	No
Prompt sound	Buzzer, when enabled
RF power	0-33 dBm adjustable
Housing material	Porcelain-white acrylic and titanium alloy
Noise detection	Supported

Physical & Environmental

Waterproof	Not supported
Communication interface	RS232, USB
Operating temperature	-20 C to 60 C
Storage temperature	-40 C to 85 C
Maximum power consumption	8 W
Power input	12 V DC
Relative humidity	10%-95% RH, non-condensing
Anti-collision processing	Supported
Physical size	350 x 230 x 27.6 mm
Package size	425 x 330 x 80 mm
Gross weight	Approx. 1800 g

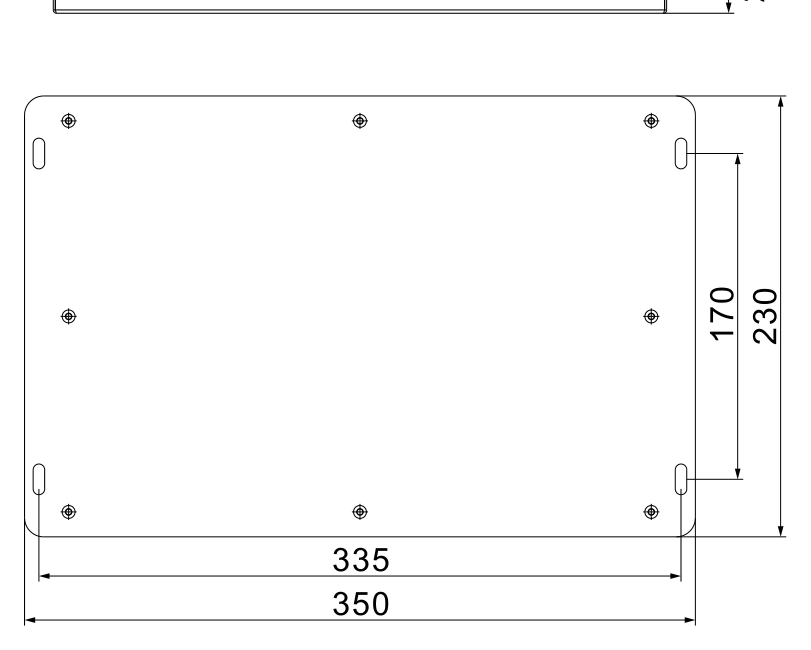

Mechanical Dimensions

Physical size and structure drawing

Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
