UHF Reader
A low-profile reader for tag issuing, verification and equipment integration
Key parameters

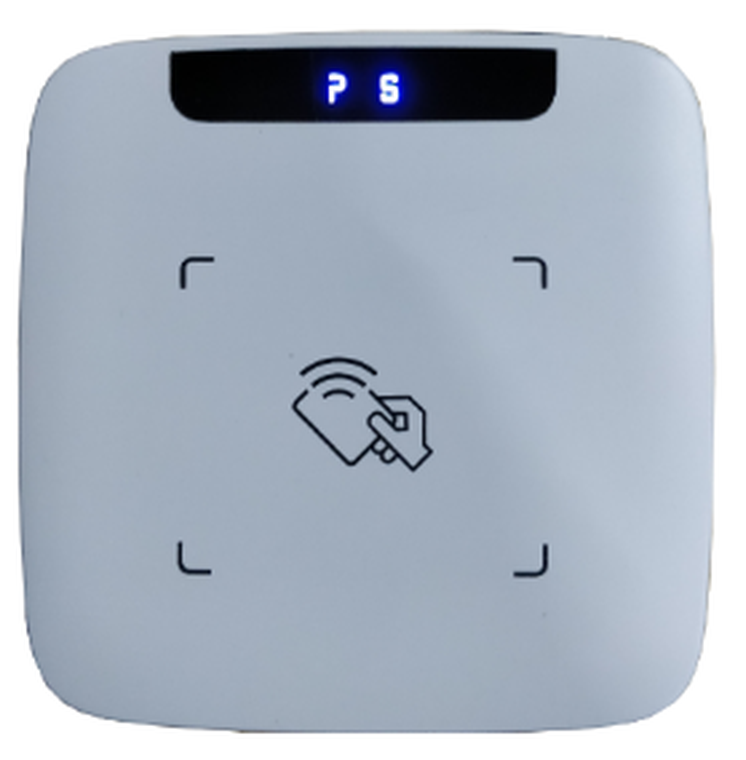

Product model
RU6502
Product name
UHF Card Issuing Reader-Writer
Working frequency
840-960 MHz
Supported standards
ISO 18000-6C / EPC Gen2
Reading speed
> 400 reads per second
Reading / writing distance
0-50 cm
Technical Data
Model parameters for product comparison and engineering review.
| Product model | RU6502 |
|---|---|
| Product name | UHF Card Issuing Reader-Writer |
| Working frequency | 840-960 MHz |
| Supported standards | ISO 18000-6C / EPC Gen2 |
| Reading speed | > 400 reads per second |
| Reading / writing distance | 0-50 cm |
| Working mode | Host control mode |
| Anti-metal design | No |
| Prompt sound | Buzzer, when enabled |
| RF power | 0-26 dBm adjustable |
| Housing material | ABS |
| Noise detection | Supported |
| Waterproof | Not supported |
|---|---|
| Communication interface | USB, RS232 |
| Operating temperature | -10 C to 55 C |
| Storage temperature | -20 C to 60 C |
| Maximum power consumption | 3.5 W |
| Power input | 5 V |
| Relative humidity | 10%-95% RH, non-condensing |
| Anti-collision processing | Supported |
| Physical size | 110 x 110 x 17 mm |
| Package size | 425 x 330 x 80 mm |
| Gross weight | Approx. 108 g |
