Library & Public-Service Equipment
Three-dimensional tag detection and configurable exit alarm indication
Key parameters
Product model
RU6905
Product name
HF RFID Safety Gate
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO18000-3
Channel identification width
80-120 cm
RF power
1-8 W
Technical Data
Model parameters for product comparison and engineering review.
| Product model | RU6905 |
|---|---|
| Product name | HF RFID Safety Gate |
| Working frequency | 13.56 MHz |
| Supported standards | ISO15693 and ISO18000-3 |
| Channel identification width | 80-120 cm |
| RF power | 1-8 W |
| People counting | Supported with two infrared sensing groups |
| Alarm mode | AFI, EAS, DSFID, AFI+EAS, DSFID+EAS |
| Reading range | 3D sensing |
| Noise detection | Supported |
| Relay | Integrated 8-channel relay linkage output |
| Tag reading speed | >= 65 tags/s |
| Display / indicator | Alarm light indicator |
|---|---|
| Alarm light | Red alarm light |
| Alarm prompt | Buzzer |
| Alarm light mode | Red flashing alarm light |
| Housing material | Acrylic, sheet metal, aluminum alloy |
| Waterproof | Not supported |
| Physical size | 570 x 120 x 1615 mm |
| Package size | 650 x 180 x 1735 mm |
| Maximum power consumption | 30 W (rated power 20 W) |
| Power input | AC 100-240 V, 50-60 Hz |
| Operating temperature | -20 C to 60 C |
| Storage temperature | -45 C to 85 C |
| Relative humidity | 5%-80% |
| Color | White + transparent |
| Safety gate base | 90 cm or 120 cm optional |
| Communication interface | Ethernet |
| Gross weight | Approx. 28 kg per panel |
| Net weight | Approx. 20.5 kg per panel |

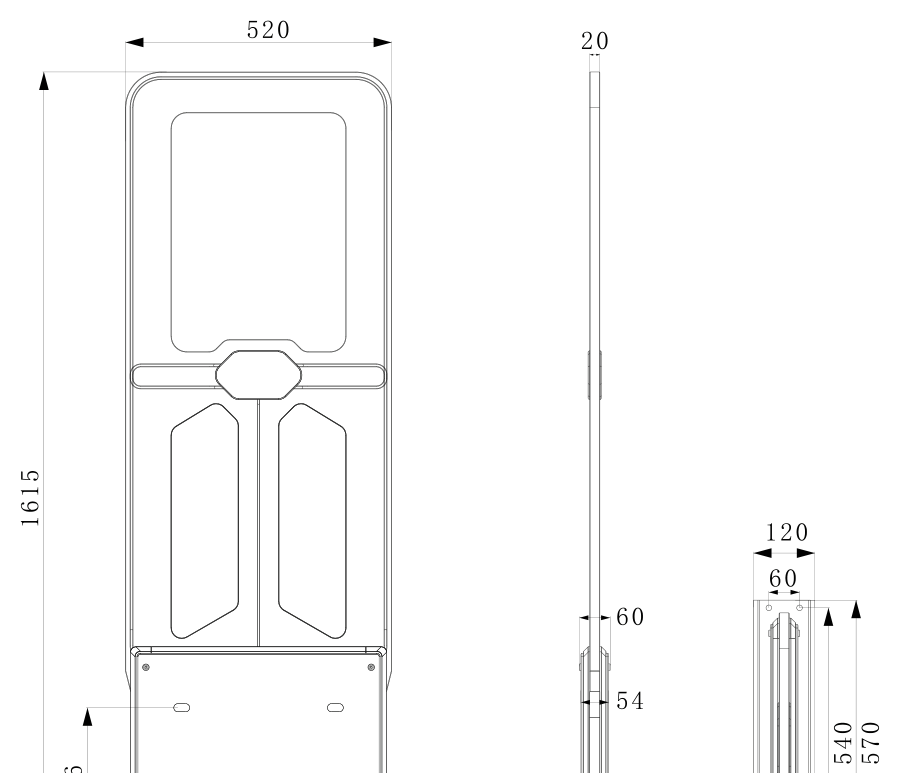

Mechanical Dimensions
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
