Library & Public-Service Equipment
Access control, anti-pinch protection and UHF detection in one channel
Key parameters
Product model
RU6951-G
Product name
UHF RFID Gate Smart Channel
Working frequency
840-960 MHz
Supported standards
ISO 18000-6C / EPC C1G2
Channel identification width
70-100 cm, recommended 82 cm
Reading distance
0-600 cm
Technical Data
Model parameters for product comparison and engineering review.
| Product model | RU6951-G |
|---|---|
| Product name | UHF RFID Gate Smart Channel |
| Working frequency | 840-960 MHz |
| Supported standards | ISO 18000-6C / EPC C1G2 |
| Channel identification width | 70-100 cm, recommended 82 cm |
| Reading distance | 0-600 cm |
| RF output power | 0-33 dBm, adjustable |
| Communication interface | Ethernet, WiFi |
| Alarm mode | EPC |
| Reading range | 3D sensing |
| Tag reading speed | > 400 reads/s |
| Antenna | 8 dBi circularly polarized antenna |
| Access modes | Card swipe, QR/barcode scanning, and optional face recognition |
|---|---|
| Gate type | Swing gate |
| Anti-tailgating | Supported |
| Collision protection | Supported |
| Emergency opening | Integrated emergency opening switch |
| People counting | Supported with 5 infrared sensing groups |
| Display | Standard no screen; optional 7 inch or 10.1 inch screen |
| Physical size | 1380 x 187 x 1650 mm |
| Package size | 1482 x 302 x 1812 mm |
| Maximum power consumption | <= 150 W |
| Power input | AC 100-240 V, 50-60 Hz |
| Operating temperature | -20 C to 60 C |
| Gross weight | Approx. 65 kg per panel |

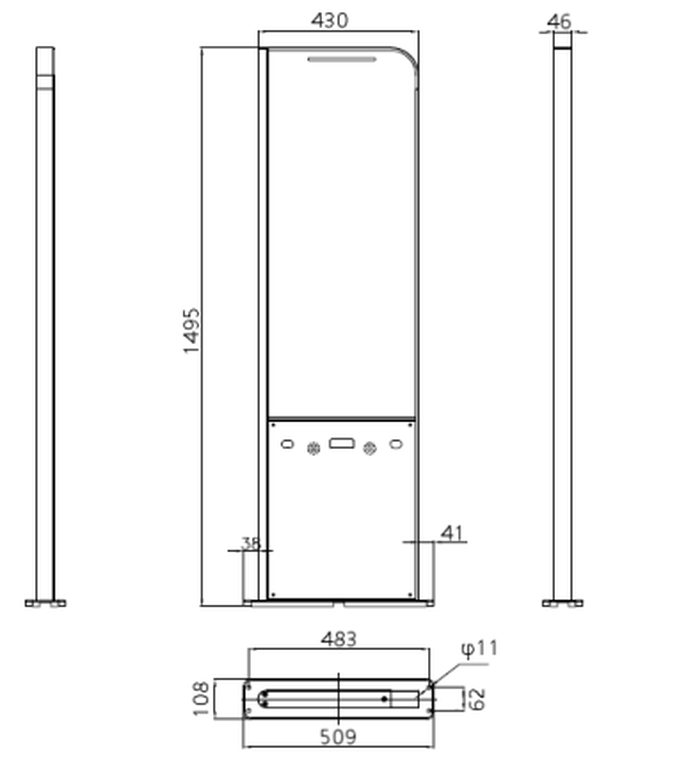

Mechanical Dimensions
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
