Library & Public-Service Equipment
High-throughput UHF exit detection with configurable display
Key parameters
Product model
RU6950
Product name
UHF RFID Safety Gate
Working frequency
840-960 MHz
Supported standards
ISO 18000-6C / EPC C1G2, ISO 18000-6B, optional GB/T 29768-2013
Channel width
80-120 cm; final channel width depends on installation
Reading distance
0-600 cm
Technical Data
Model parameters for product comparison and engineering review.
| Product model | RU6950 |
|---|---|
| Product name | UHF RFID Safety Gate |
| Working frequency | 840-960 MHz |
| Supported standards | ISO 18000-6C / EPC C1G2, ISO 18000-6B, optional GB/T 29768-2013 |
| Channel width | 80-120 cm; final channel width depends on installation |
| Reading distance | 0-600 cm |
| RF output power | 0-33 dBm, adjustable |
| People counting | Supported with two infrared sensing groups |
| Alarm mode | EPC |
| Reading range | 3D sensing |
| Tag reading speed | >= 400 tags/s |
| Relay | 4 channels |
| Alarm prompt | Light and buzzer, volume adjustable |
|---|---|
| Housing material | Acrylic, titanium alloy, aluminum alloy |
| Waterproof | Not supported |
| Physical size | 500 x 120 x 1530 mm |
| Package size | 600 x 200 x 1625 mm |
| Maximum power consumption | 20-40 W |
| Power input | AC 100-240 V, 50-60 Hz |
| Operating temperature | -20 C to 60 C |
| Storage temperature | -40 C to 85 C |
| Relative humidity | 10%-95% RH, non-condensing |
| Communication interface | Ethernet |
| Safety gate base | 90 cm or 120 cm cable-trough base optional |
| Gross weight | Approx. 17 kg per panel |

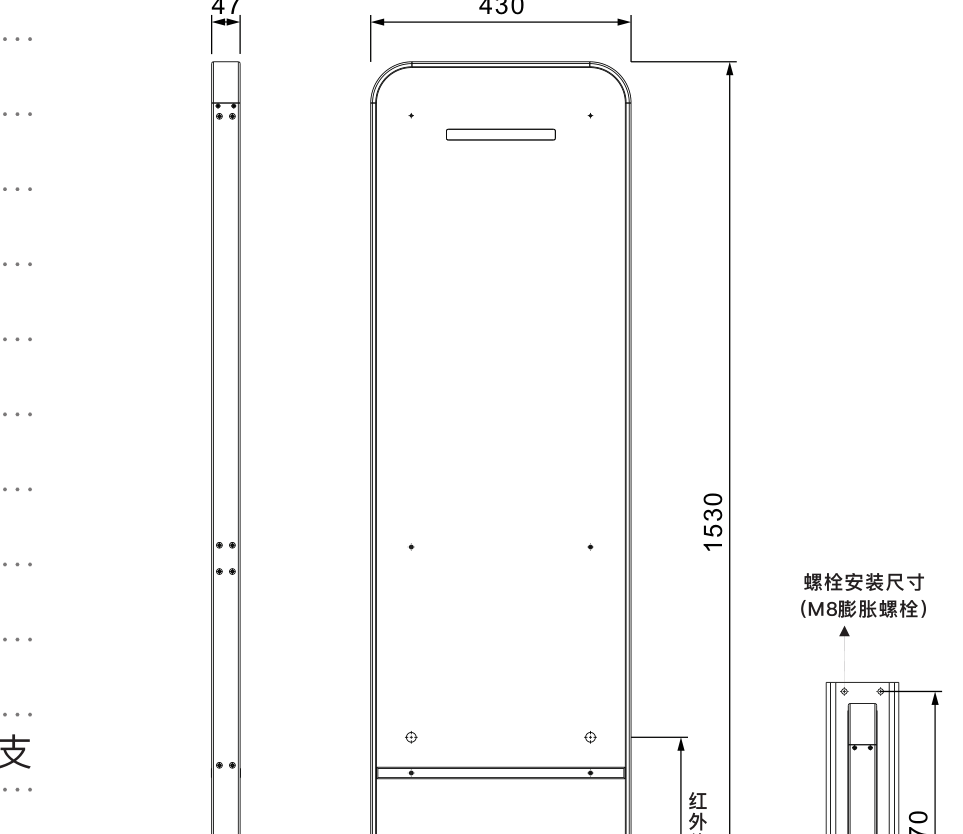

Mechanical Dimensions
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
