Library & Public-Service Equipment

RU6911

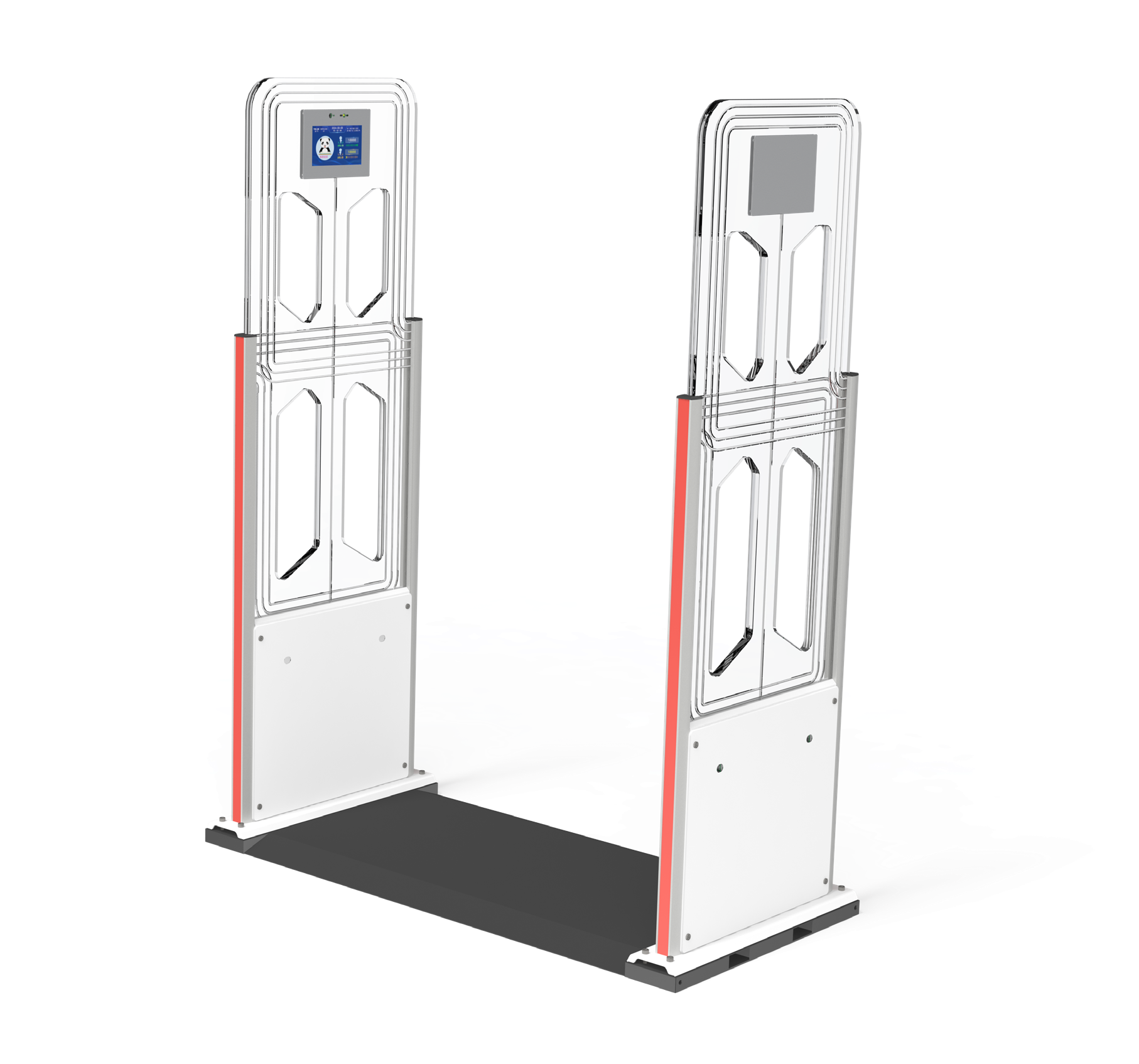

13.56 MHz HF RFID safety gate | up to 150 cm passage range

Three-dimensional tag detection and configurable exit alarm indication

Request product match View model index View product manual

Key parameters

Product model

RU6911

Product name

HF RFID Safety Gate

Working frequency

13.56 MHz

Supported standards

ISO15693 and ISO18000-3

Channel identification width

Up to 150 cm

RF power

1-8 W

Technical Data

Technical specifications

Model parameters for product comparison and engineering review.

RFID & Security Parameters

Product model	RU6911
Product name	HF RFID Safety Gate
Working frequency	13.56 MHz
Supported standards	ISO15693 and ISO18000-3
Channel identification width	Up to 150 cm
RF power	1-8 W
People counting	Supported with two infrared sensing groups
Alarm mode	AFI, EAS, DSFID, AFI+EAS, DSFID+EAS
Reading range	3D sensing
Noise detection	Supported
Relay	Integrated 8-channel relay linkage output
Tag reading speed	>= 65 tags/s
Radar sensing	Senses approaching users and enables work mode; enters standby when no one is present, sensing distance up to 10 m
Optional modules	Alarm snapshot camera, body-temperature probe, and distance probe

Structure, Interface & Environment

Display / indicator	7 inch HD display; dynamic UI, traffic count, alarm information, temperature and humidity, gate quantity, alarm mode, IP address
Alarm light	Seven-color selectable light: red, orange, white, green, cyan, blue, purple
Alarm prompt	Voice, buzzer, and seven-color light alarm; volume adjustable
Alarm light mode	Breathing light and alarm light
Housing material	Acrylic, sheet metal, aluminum alloy
Waterproof	Not supported
Physical size	633 x 120 x 1660 mm
Package size	730 x 180 x 1770 mm
Maximum power consumption	30 W (rated power 20 W)
Power input	AC 100-240 V, 50-60 Hz
Operating temperature	-20 C to 60 C
Storage temperature	-45 C to 85 C
Relative humidity	5%-80%
Color	White + transparent
Safety gate base	90 cm, 120 cm, or 150 cm optional
Communication interface	Ethernet
Gross weight	Approx. 29 kg per panel
Net weight	Project dependent

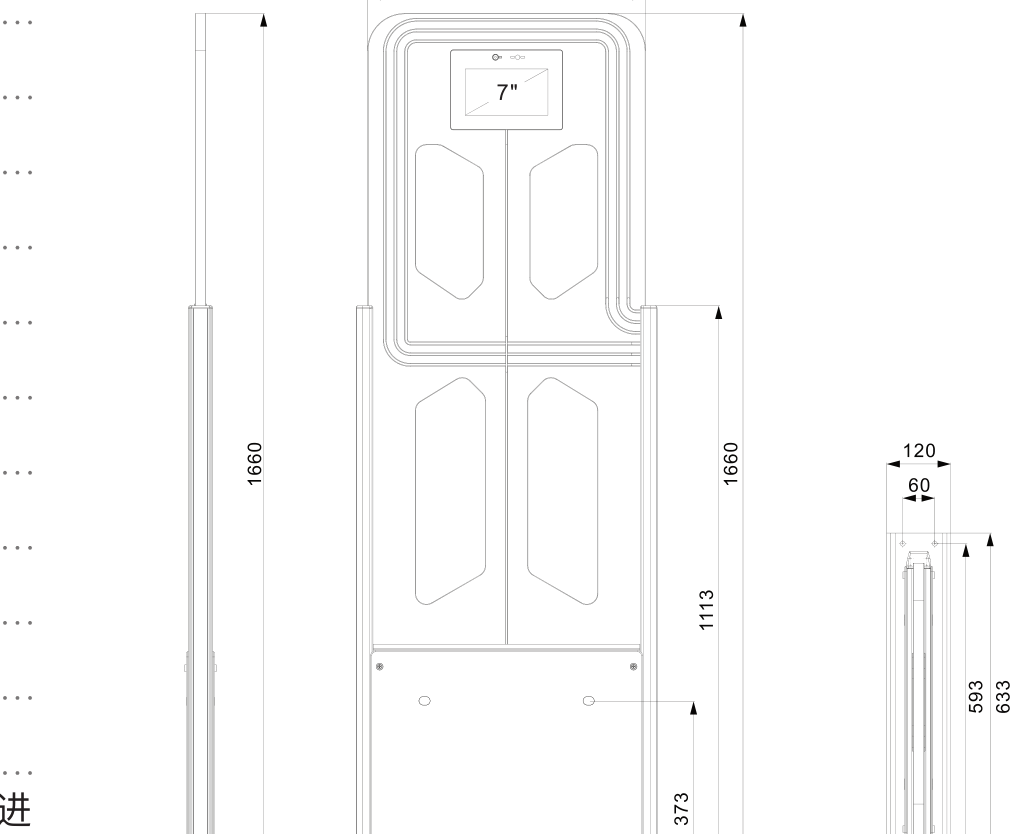

Mechanical Dimensions

Physical size and structure drawing

Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
