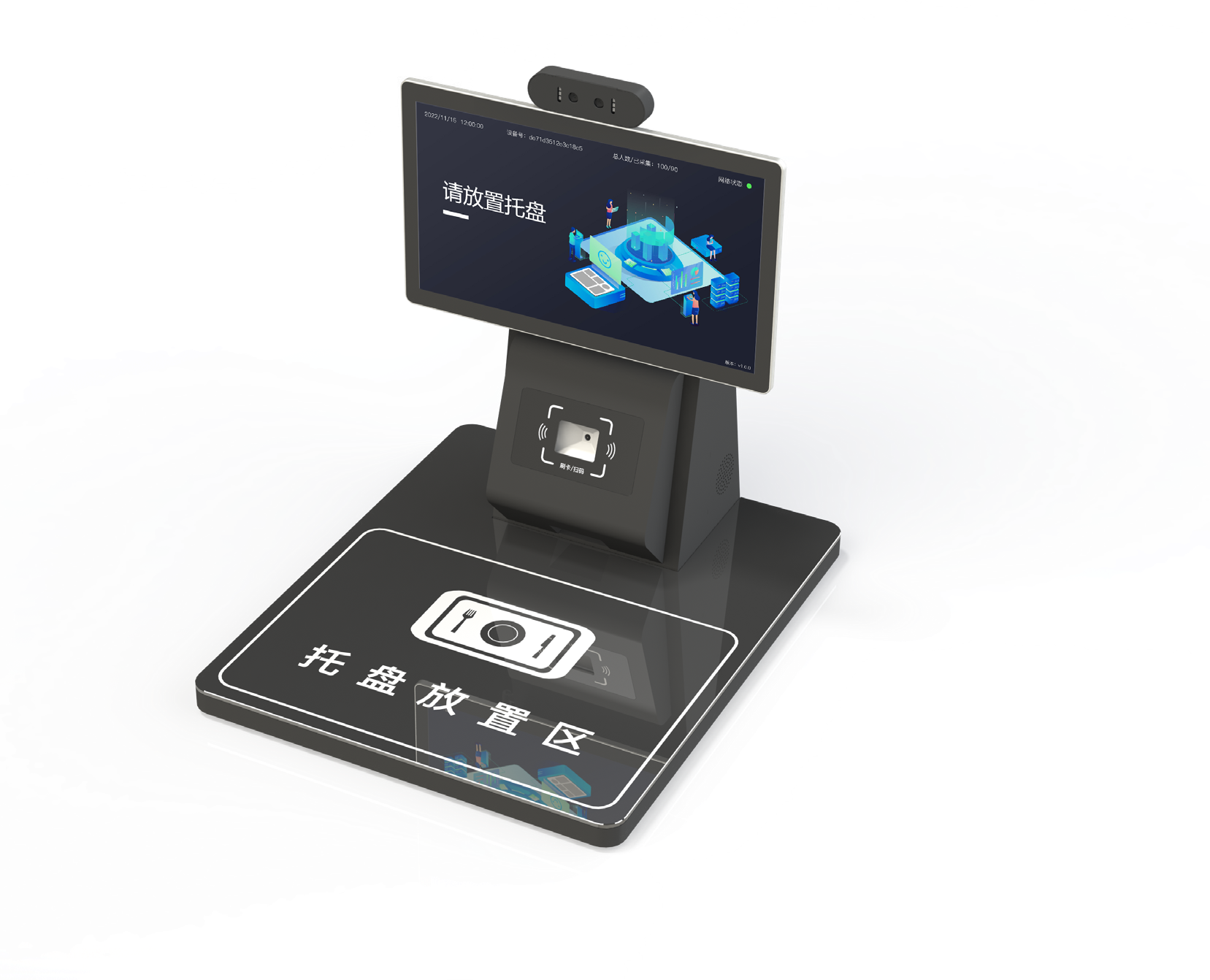

Dining & Food-Safety Device

RCY2042R

15.6-inch Android RFID tray-binding station | Model title requires confirmation

RFID, card, barcode and face-assisted tray binding for attended dining workflows

Request product match View model index View product manual

Key parameters

Product model

RCY2042R

Product name

RFID Smart Tray Binding Machine

Tray recognition

RFID smart recognition; optional scan-code recognition

Product size

428 x 518 x 522 mm

Recognition time

<= 0.5 s

Operating system

Android

Technical Data

Technical specifications

Model parameters for product comparison and engineering review.

Product & RFID

Product model	RCY2042R
Product name	RFID Smart Tray Binding Machine
Tray recognition	RFID smart recognition; optional scan-code recognition
Product size	428 x 518 x 522 mm
Recognition time	<= 0.5 s
Operating system	Android
Card reader	13.56 MHz, ISO15693 / ISO14443A, approx. 0-15 cm, USB, 5 V DC
RFID reader	13.56 MHz, ISO15693 / ISO14443A, approx. 0-15 cm, RS232, 5 V DC
CPU	RK3568 quad-core 64-bit, 2.0 GHz
Memory / storage	2 GB + 16 GB
Screen size	15.6 inch
Screen resolution	1920 x 1080

System, Interface & Environment

Touch	10-point touch
Screen rotation	Up / down 25 degrees
Network	Ethernet, WiFi
External interfaces	USB x2
Scanner	Barcode / QR code supported
Camera	Binocular wide-dynamic camera with live face detection
Material	Aluminum alloy, sheet metal, tempered glass, acrylic
Power input	12 V DC
Sensing area	>= 180 x 180 mm
Operating temperature	-20 C to 60 C
Storage temperature	-40 C to 85 C
Relative humidity	10%-95% RH, non-condensing

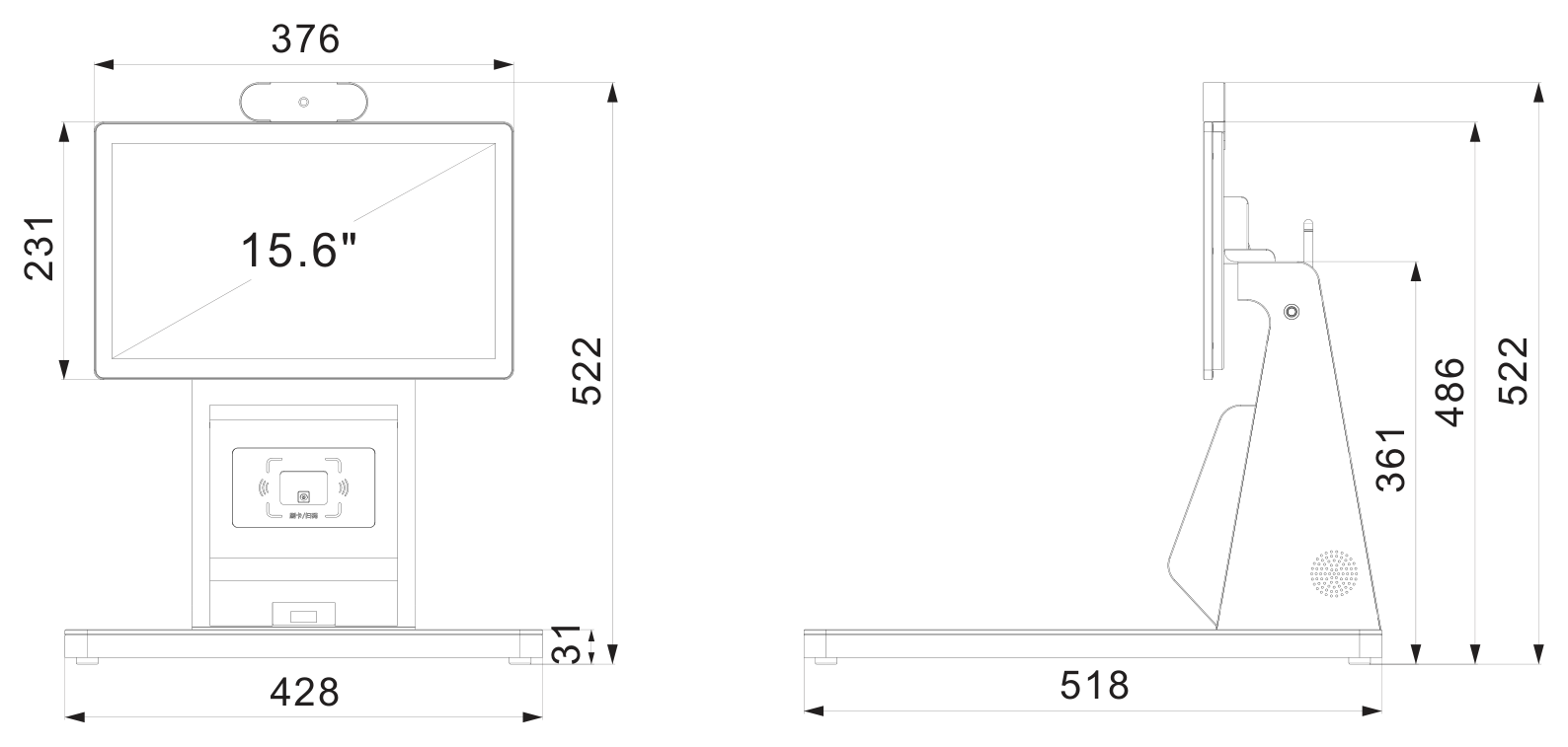

Mechanical Dimensions

Physical size and structure drawing

Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
