Dining & Food-Safety Device

RCY1010

10.1-inch ARM smart weighing station | Barcode and QR tray recognition

Larger touch interaction for embedded dining weighing workflows

Request product match View model index View product manual

Key parameters

Product model

RCY1010

Product name

Smart Weighing All-in-One

Tray recognition

Barcode / QR code

Software

Embedded application software

Recognition time

<= 1 s

MCU

ARM

Technical Data

Technical specifications

Model parameters for product comparison and engineering review.

Product & Display

Product model	RCY1010
Product name	Smart Weighing All-in-One
Tray recognition	Barcode / QR code
Software	Embedded application software
Recognition time	<= 1 s
MCU	ARM
Touch screen	Multi-touch
Screen size	10.1 inch
Screen resolution	1024 x 600
Material	Titanium alloy, tempered glass, acrylic
Splash / saliva shield	Standard
Screen functions	Custom logo, dish name, unit price, nutrition, user name, amount, balance

Interface, Power & Environment

Communication interface	RS232
Cascade interface	2 ports
SDK	C / C++ / C# / Java
LED light	Built in
Power input	12 V DC, 3 A
Alarm light	Seven-color alarm in shield; optional upright alarm
Operating temperature	-20 C to 60 C
Storage temperature	-40 C to 85 C
Relative humidity	10%-95% RH, non-condensing
Sensor grade	>= 3C
Maximum capacity	50 kg
Cascaded scale support	Supported
RFID tray option	Optional RFID smart tray
Sound-light alarm	Supported; optional voice / buzzer
Power configuration	One adapter per 5 devices
Product size	558 x 437 x 838 mm
Gross weight	-

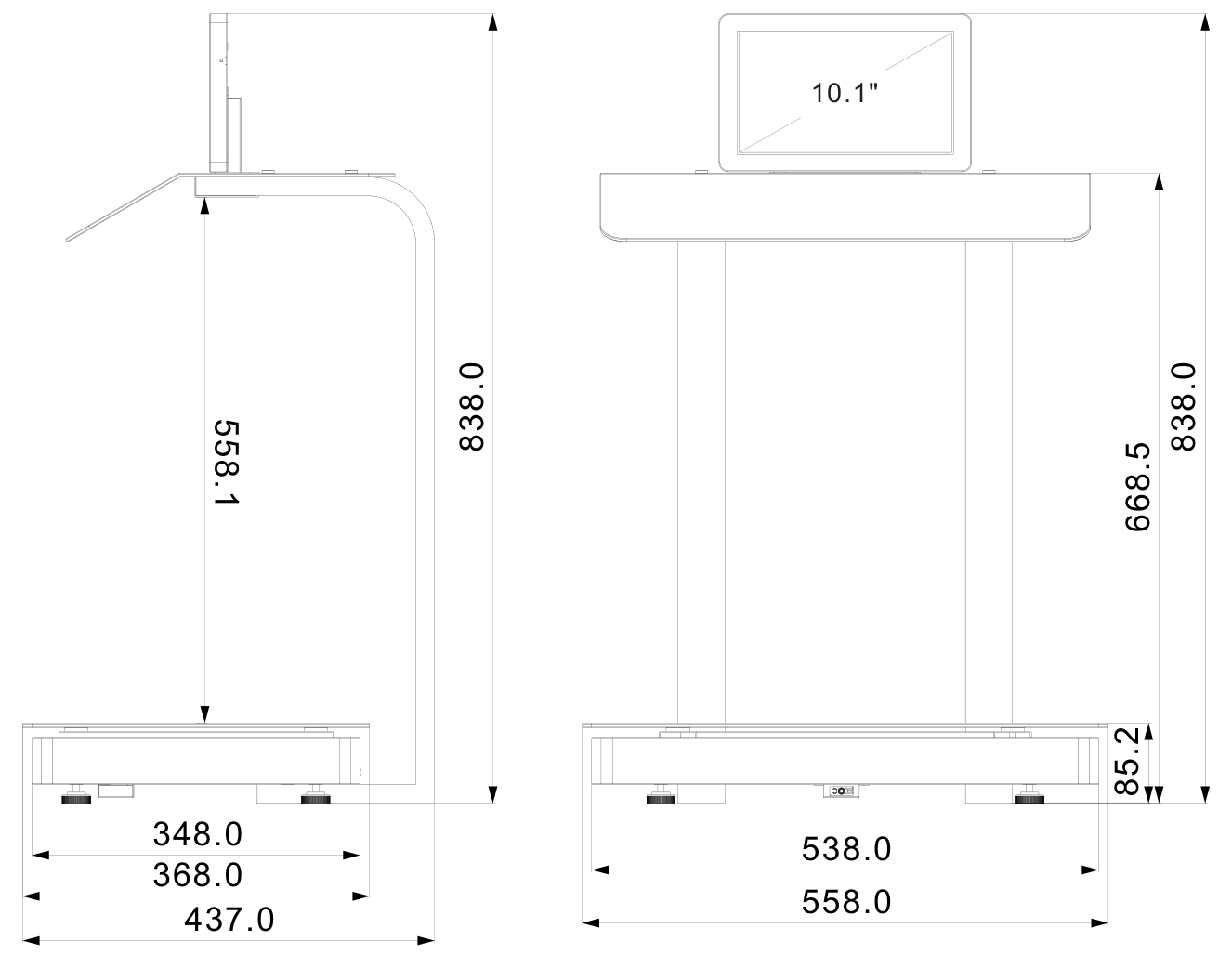

Mechanical Dimensions

Physical size and structure drawing

Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
