Dining & Food-Safety Device

RCY1006W

13.56 MHz RFID smart tray reader | ISO 15693 and ISO 14443A

Compact multi-card tray identification for self-service dining checkout

Request product match View model index View product manual

Key parameters

Product model

RCY1006W

Product name

RFID Smart Tray All-in-One

Working frequency

13.56 MHz

Supported standards

ISO15693 and ISO14443A

Reading speed

<= 20 cards per second

Reading distance

>= 15 cm for ISO15693; >= 8 cm for ISO14443A

Technical Data

Technical specifications

Model parameters for product comparison and engineering review.

RFID Parameters

Product model	RCY1006W
Product name	RFID Smart Tray All-in-One
Working frequency	13.56 MHz
Supported standards	ISO15693 and ISO14443A
Reading speed	<= 20 cards per second
Reading distance	>= 15 cm for ISO15693; >= 8 cm for ISO14443A
Supported cards	I Code ILT, I Code SLI, I Code SLIX, I Code SLIX2, Mifare S50/70
Anti-collision processing	Supported
Multi-card reading	Supported
Communication interface	RS232 or USB

Interface, Power & Physical

Prompt sound	Buzzer, when enabled
Material	Sheet metal, tempered glass, transparent acrylic
Maximum power consumption	0.6 W
Power input	5 V via USB
Cable	DB9 serial cable or USB cable
Waterproof	Not supported
Operating temperature	-20 C to 60 C
Storage temperature	-40 C to 85 C
Relative humidity	10%-95% RH, non-condensing
Physical size	358 x 268 x 29 mm
Gross weight	-

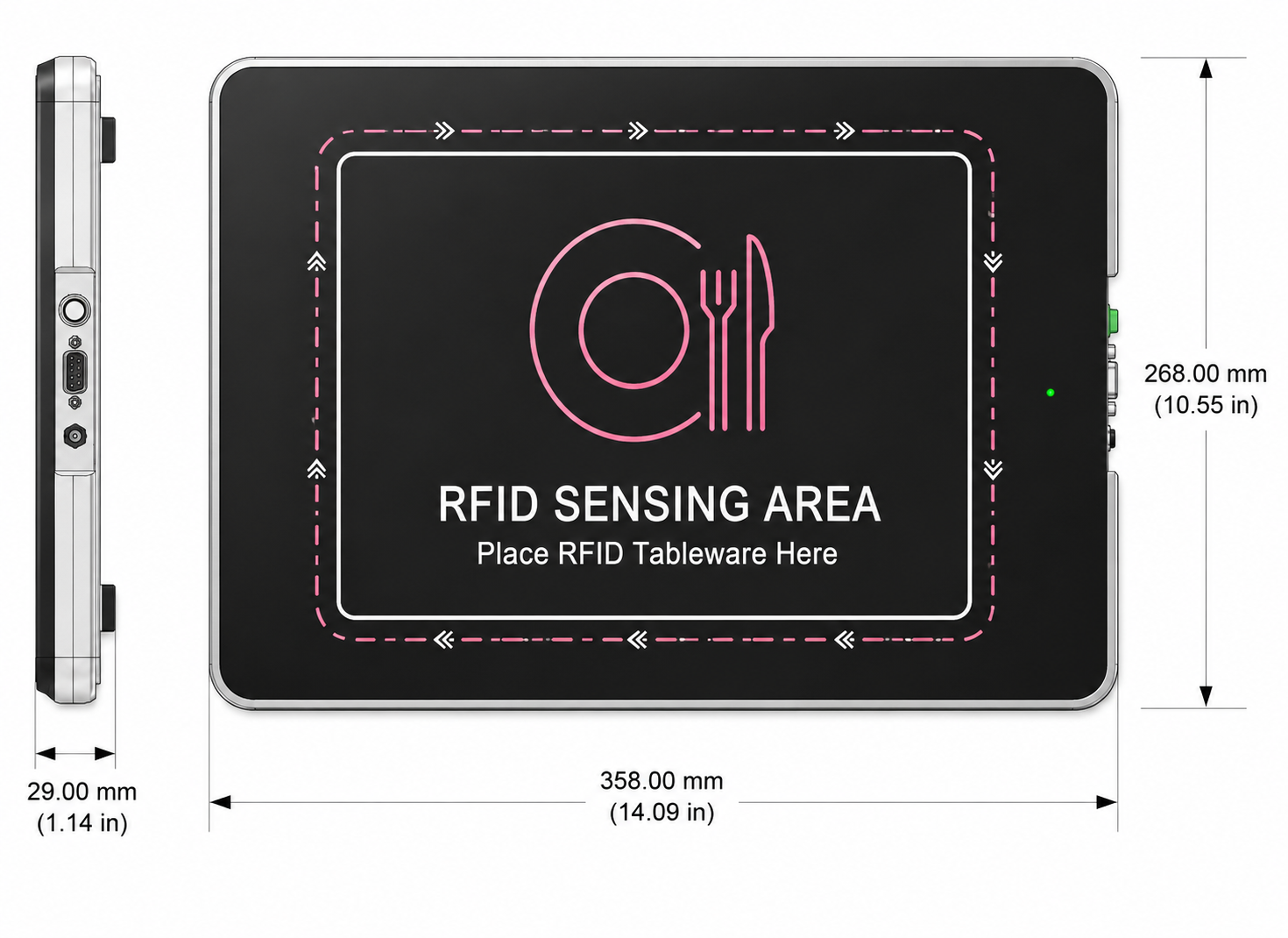

Mechanical Dimensions

Physical size and structure drawing

Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
