Dining & Food-Safety Device
Flush-mounted tableware recognition for custom dining counters
Key parameters
Product model
RCY3404
Product name

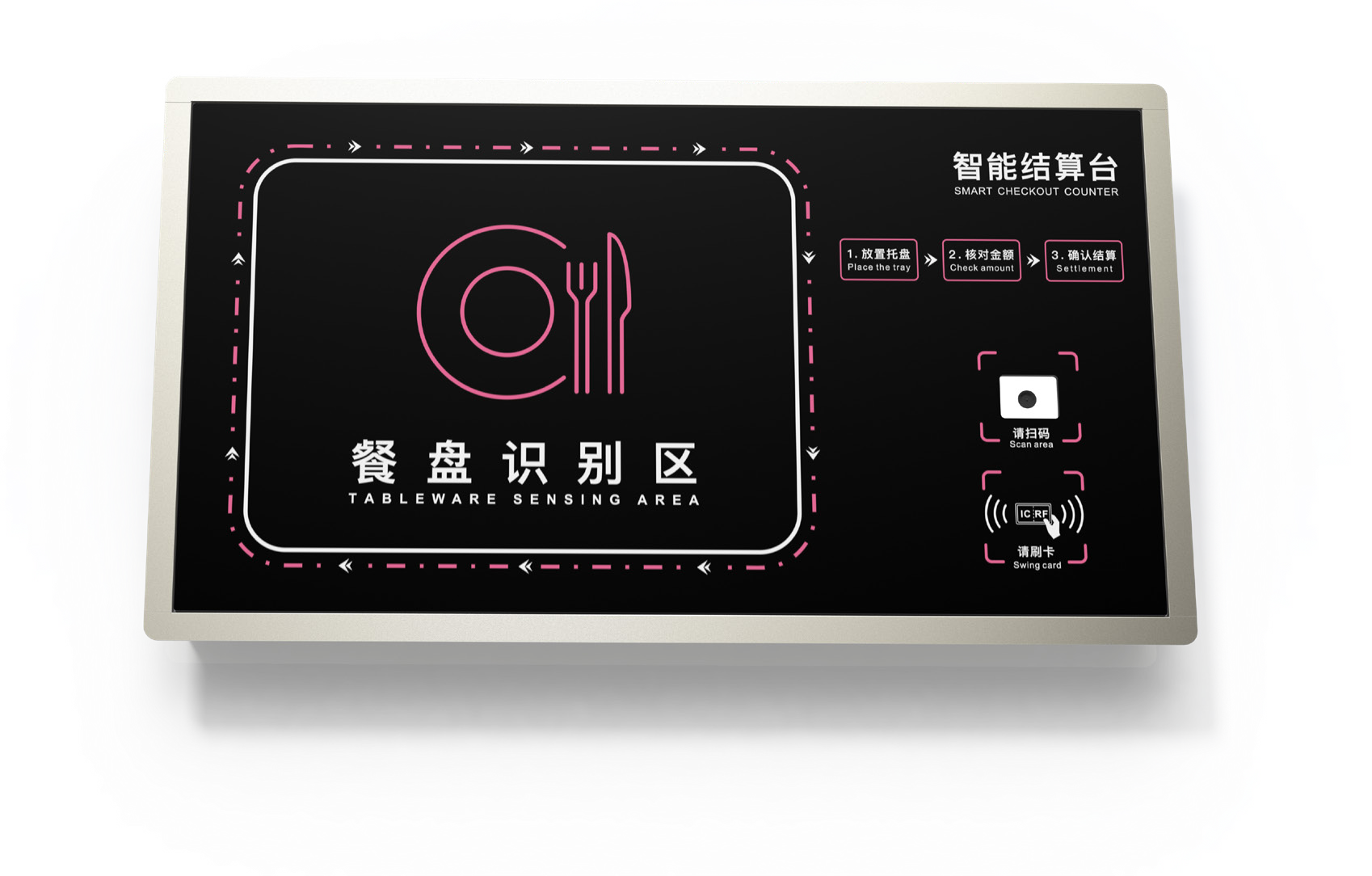

RFID Embedded Desktop Smart Checkout Counter
RFID recognition
Fast tableware recognition
Product size
738 x 416 x 53 mm
Opening size
743 x 421 mm
Installation
Embedded
Technical Data
Model parameters for product comparison and engineering review.
| Product model | RCY3404 |
|---|---|
| Product name | RFID Embedded Desktop Smart Checkout Counter |
| RFID recognition | Fast tableware recognition |
| Product size | 738 x 416 x 53 mm |
| Opening size | 743 x 421 mm |
| Installation | Embedded |
| Recognition time | <= 0.5 s |
| RFID antenna | Coupled dual antenna, anti-metal design |
| Sensing area | >= 420 x 320 mm |
| Reading distance | >= 35 cm with white card |
| Reader protocol | ISO15693 and ISO18000-3 |
| Reading speed | Up to 65 tags per second |
|---|---|
| Card reader | 13.56 MHz, ISO15693 / ISO14443A, approx. 0-15 cm |
| Communication interface | USB x2, DB9 RS232 x1 |
| Scanner | High-speed 1D / 2D barcode scanning |
| ID card option | Optional ID-card payment |
| Material | 304 stainless steel, tempered glass |
| SDK | C / C++ / C# / Java |
| Power input | 12 V DC |
| Operating temperature | -20 C to 60 C |
| Storage temperature | -40 C to 85 C |
| Gross weight | - |

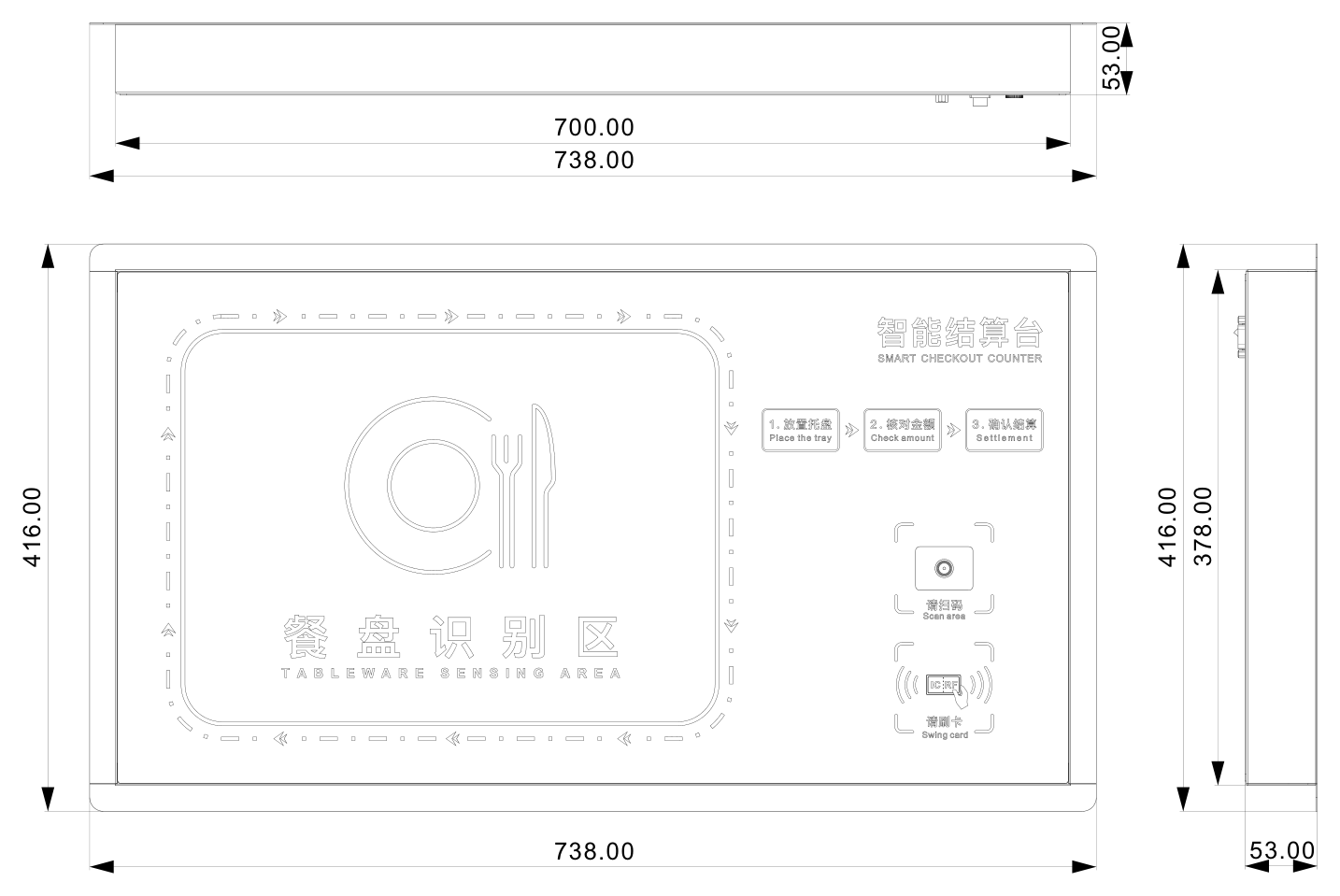

Mechanical Dimensions
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
