Dining & Food-Safety Device
Compact tray identification and weighing for modular dining lines
Key parameters
Product model
RCY1007
Product name
Smart Weighing All-in-One
Tray recognition
Barcode / QR code
Software
Embedded application software
Recognition time
<= 1 s
MCU
ARM
Technical Data
Model parameters for product comparison and engineering review.
| Product model | RCY1007 |
|---|---|
| Product name | Smart Weighing All-in-One |
| Tray recognition | Barcode / QR code |
| Software | Embedded application software |
| Recognition time | <= 1 s |
| MCU | ARM |
| Function keys | Touch keys |
| Screen size | 7 inch |
| Screen resolution | 800 x 480 |
| Material | Aluminum alloy, titanium alloy, tempered glass, acrylic |
| Splash / saliva shield | Standard |
| Screen functions | Custom logo, dish name, unit price, nutrition, user name, amount, balance |
| Communication interface | RS232 |
|---|---|
| Cascade interface | 2 ports |
| SDK | C / C++ / C# / Java |
| LED light | Built in |
| Power input | 12 V DC, 3 A |
| Alarm light | Seven-color alarm in shield; optional upright alarm |
| Operating temperature | -20 C to 60 C |
| Storage temperature | -40 C to 85 C |
| Relative humidity | 10%-95% RH, non-condensing |
| Sensor grade | >= 3C |
| Maximum capacity | 50 kg |
| Cascaded scale support | Supported |
| RFID tray option | Optional RFID smart tray |
| Sound-light alarm | Supported; optional voice / buzzer |
| Power configuration | One adapter per 5 devices |
| Product size | 558 x 437 x 806.5 mm |
| Gross weight | 15 kg |

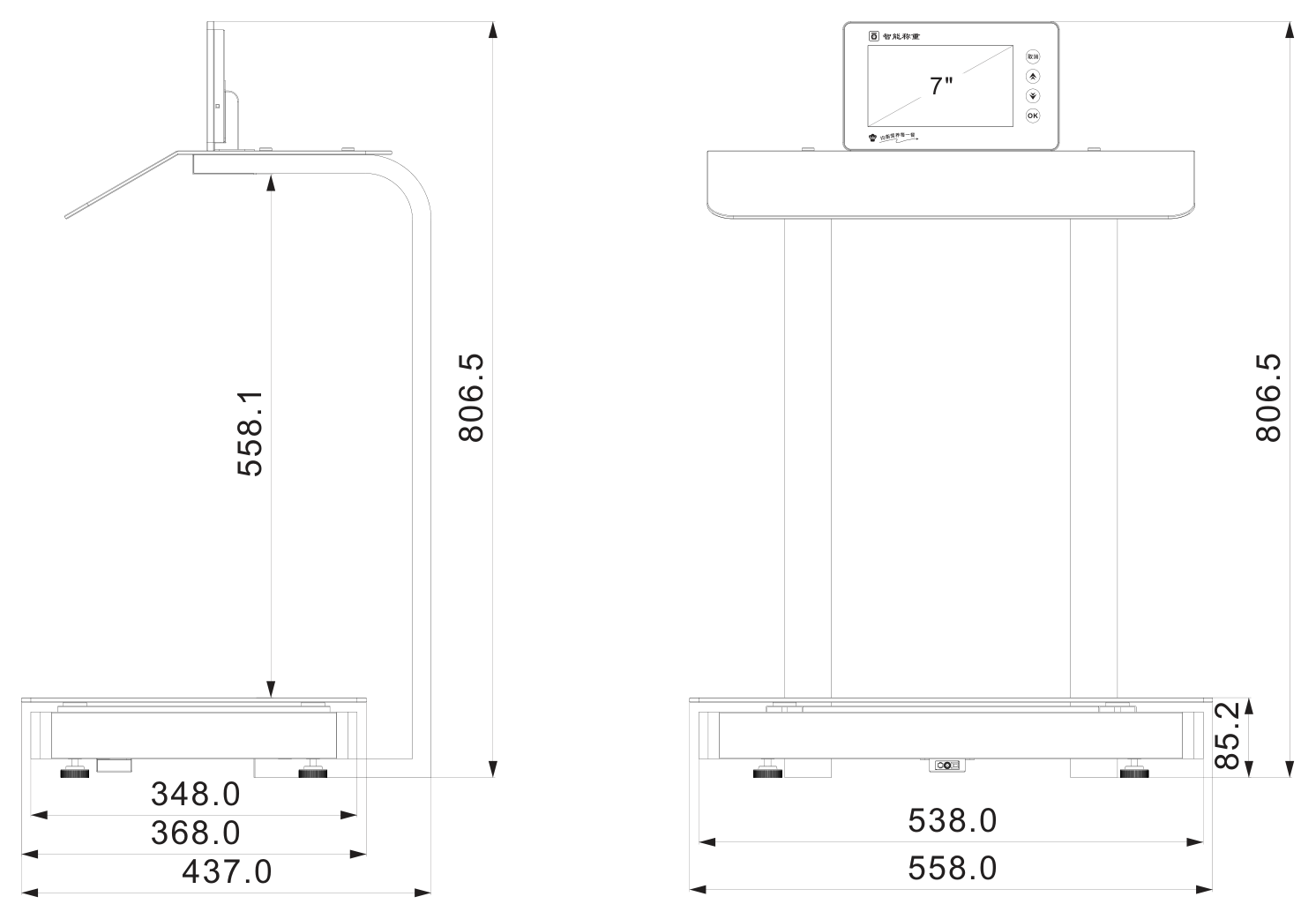

Mechanical Dimensions
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
