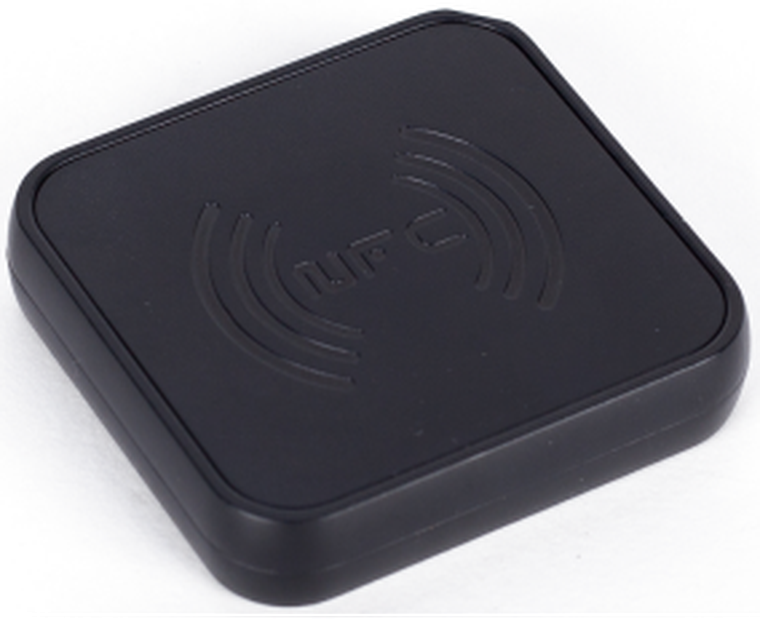

HF Embedded Reader
RU6203
Embedded HF Reader for Custom Equipment Integration
An embedded HF reader option for equipment builders and custom RFID devices where the reader is integrated inside a cabinet, kiosk, or terminal.
Key parameters
Working frequency
13.56 MHz
Supported standards
ISO15693, ISO18000-3M3, ISO14443A
Reading distance
8 cm (ISO15693); 5 cm (ISO14443A)
Communication interface
USB
Physical size
49 x 46.1 x 10.5 mm
Specification Notes
- Confirm host interface, power, heat, mounting, and antenna layout before enclosure design is finalized.
- Embedded readers are tested inside the final mechanical structure.
- Serviceability matters: plan how technicians will access and replace the module if needed.
Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
RFID & Reading
| Working frequency | 13.56 MHz |
|---|---|
| Supported standards | ISO15693, ISO18000-3M3, ISO14443A |
| Reading speed | <= 50 tags per second |
| Reading distance | 8 cm (ISO15693); 5 cm (ISO14443A) |
| Supported cards | I Code ILT, I Code SLI, I Code SLIX, I Code SLIX2, Mifare S50/70 |
| Anti-collision processing | Supported |
Interface, Power & Physical
| Communication interface | USB |
|---|---|
| Power input | 5 V, USB powered |
| Maximum power consumption | 0.48 W |
| Operating temperature | -20 C to 60 C |
| Physical size | 49 x 46.1 x 10.5 mm |
| Gross weight | Approx. 50 g |
Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
