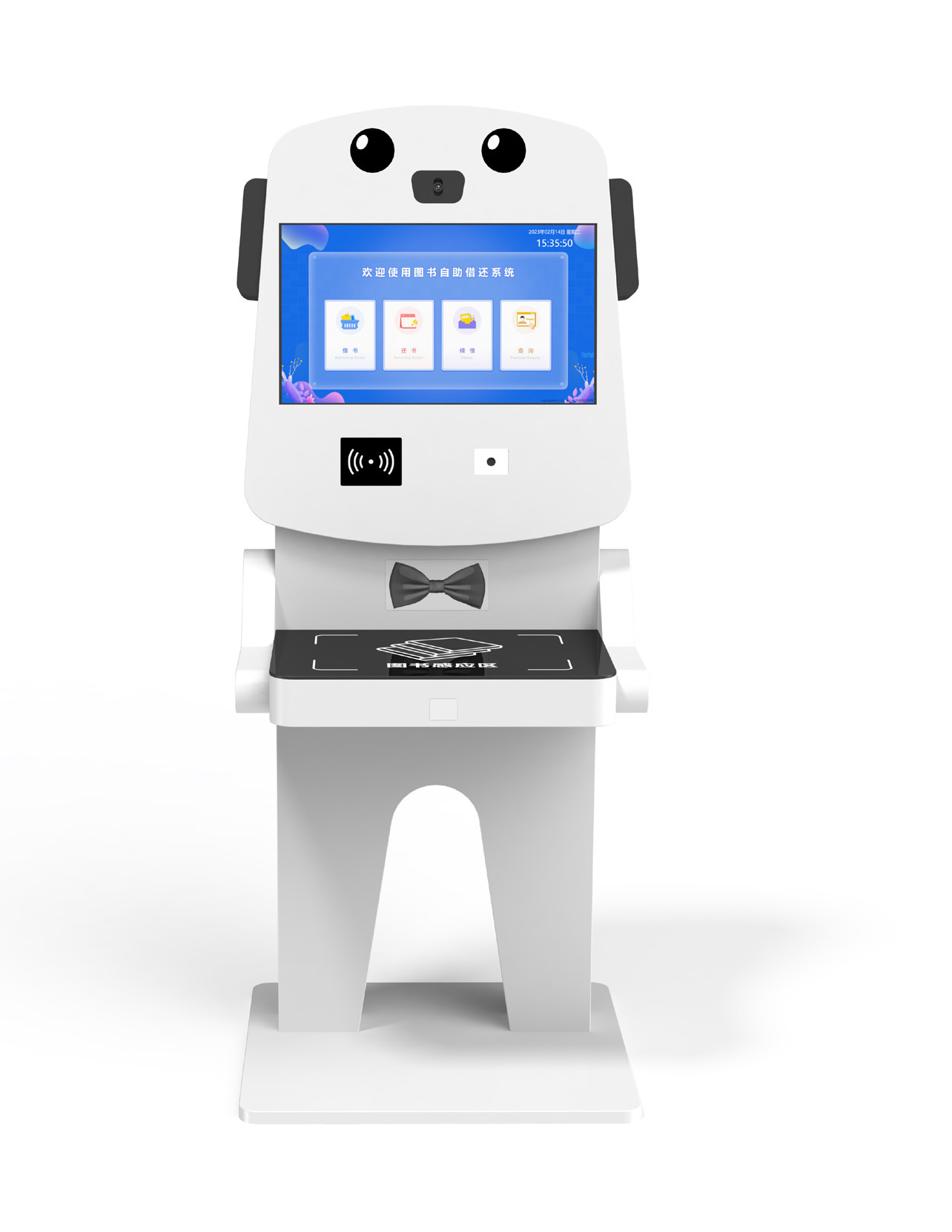

RJHS1020-D

Children's 21.5-inch self-service loan and return machine | Model suffix requires confirmation

Child-oriented circulation kiosk with multi-book RFID handling

Request product match View model index View product manual

Key parameters

Product model

RJHS1020-D

Product name

Children's Self-Service Loan and Return Machine

Working frequency

13.56 MHz, 840-960 MHz

Supported standards

ISO 15693, ISO 18000-6C

Book identification

Multiple books, stack height <= 250 mm, >= 10 books

Loan / return methods

Face recognition, IC card, ID card, WeChat QR code

Technical Data

Technical specifications

Model parameters for product comparison and engineering review.

Product Parameters

Product model	RJHS1020-D
Product name	Children's Self-Service Loan and Return Machine
Working frequency	13.56 MHz, 840-960 MHz
Supported standards	ISO 15693, ISO 18000-6C
Book identification	Multiple books, stack height <= 250 mm, >= 10 books
Loan / return methods	Face recognition, IC card, ID card, WeChat QR code
Energy-saving technology	Radar sensing, sensing distance up to 10 m
Applicable items	Picture books, books, magazines, newspapers, archives, assets
Physical size	614 x 550 x 1477 mm (L x W x H)
Package size	715 x 660 x 1652 mm
Display	21.5 inch horizontal touchscreen
Display resolution	1080 x 1920 @ 60 Hz (HDMI, up to 4K @ 60 Hz)
Touch type	10-point capacitive touchscreen
Material structure	>= 1.5 mm sheet metal, tempered glass
Gross weight	Approx. 76 kg

Reader, Interface & System

Read / write function	Supports multi-tag identification and fast anti-collision processing
HF reader	13.56 MHz; ISO15693 and ISO18000-3; 1.5 W output; >= 50 tags/s; Multiple books, stack height <= 250 mm, >= 10 books; USB / RS232; 12 V DC; 3.5 W max.
UHF reader	840-960 MHz; ISO 18000-6C; 0-33 dBm adjustable; > 400 reads/s; multiple-book identification
Reader-card module	13.56 MHz; ISO15693 and ISO14443A; approx. 0-15 cm; USB; 5 V DC
ID-card reader	2nd / 3rd generation ID card and TYPE-A/B IC card reading; approx. 0-3 cm; USB / TTL; 5 V DC
Barcode / QR scanner	5 V USB; ARM32-bit processor; >= 4 MIL / 0.1 mm @ PCS90%; roll 0-360 degrees, pitch +/-65 degrees
Network	Ethernet, WiFi
System options	Windows or Android platform options, configurable by project
Power input	220 V 60 Hz

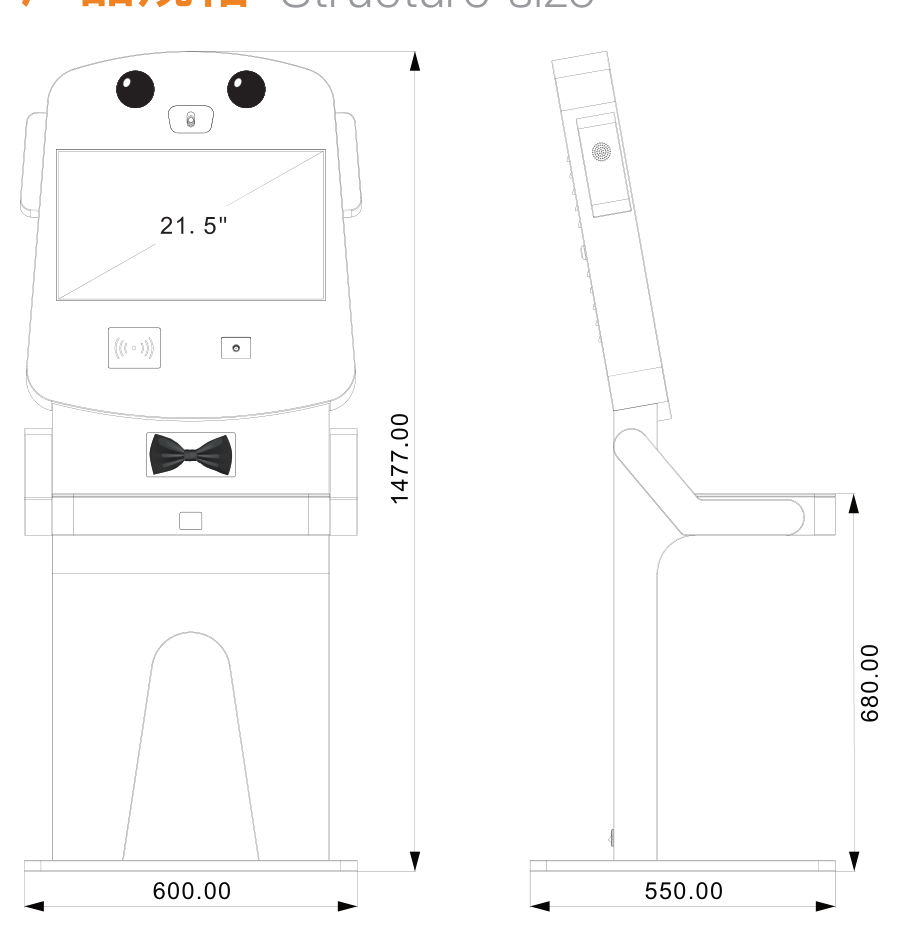

Mechanical Dimensions

Physical size and structure drawing

Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
