Library & Public-Service Equipment

RJHS1040

80.8 mm-deep wall-mounted self-service loan and return terminal

Space-saving circulation interface for wall-integrated library points

Request product match View model index View product manual

Key parameters

Product model

RJHS1040

Product name

Wall-Mounted Loan and Return Machine

Working frequency

13.56 MHz, 840-960 MHz

Supported standards

ISO 15693, ISO 18000-6C

Book identification

Multiple books, stack height <= 250 mm, >= 10 books

Loan / return methods

Face recognition, IC card, ID card, WeChat QR code

Technical Data

Technical specifications

Model parameters for product comparison and engineering review.

Product Parameters

Product model	RJHS1040
Product name	Wall-Mounted Loan and Return Machine
Working frequency	13.56 MHz, 840-960 MHz
Supported standards	ISO 15693, ISO 18000-6C
Book identification	Multiple books, stack height <= 250 mm, >= 10 books
Loan / return methods	Face recognition, IC card, ID card, WeChat QR code
Camera	2 MP camera, adjustable
Applicable items	Picture books, books, magazines, newspapers, archives, assets
Physical size	338 x 80.8 x 768 mm (L x W x H)
Package size	842 x 138 x 415 mm
Display	21.5 inch touchscreen
Display resolution	1080 x 1920 @ 60 Hz (HDMI, up to 4K @ 60 Hz)
Touch type	10-point capacitive touchscreen
Material structure	Aluminum alloy, sheet metal, tempered glass
Gross weight	Approx. 18 kg
Installation	Wall-mounted
Serial ports	2
External USB	4

Reader, Interface & System

Read / write function	Supports multi-tag identification and fast anti-collision processing
HF reader	13.56 MHz; ISO15693 and ISO18000-3; 1.5 W output; >= 50 tags/s; Multiple books, stack height <= 150 mm; USB / RS232; 12 V DC; 3.5 W max.
UHF reader	840-960 MHz; ISO 18000-6C; 0-33 dBm adjustable; > 400 reads/s; multiple-book identification
Reader-card module	13.56 MHz; ISO15693 and ISO14443A; approx. 0-15 cm; USB; 5 V DC
ID-card reader	2nd / 3rd generation ID card and TYPE-A/B IC card reading; approx. 0-3 cm; USB / TTL; 5 V DC
Barcode / QR scanner	5 V USB; ARM32-bit processor; >= 4 MIL / 0.1 mm @ PCS90%; roll 0-360 degrees, pitch +/-65 degrees
Network	Ethernet, WiFi
System options	Windows or Android platform options, configurable by project
Power input	12 V DC

Mechanical Dimensions

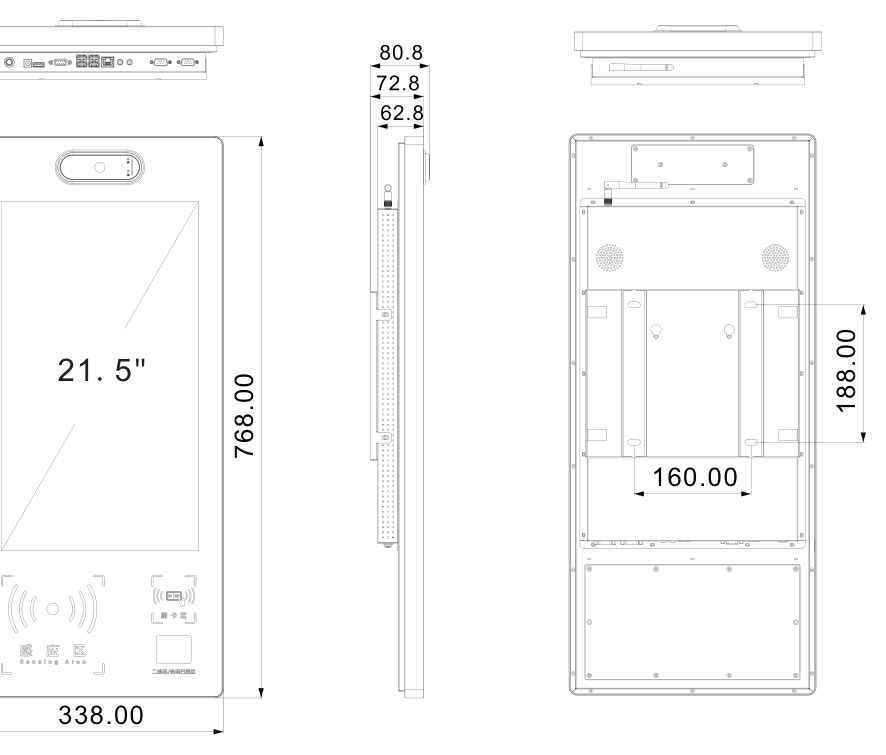

Physical size and structure drawing

Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
