Library & Public-Service Equipment

RTS2021

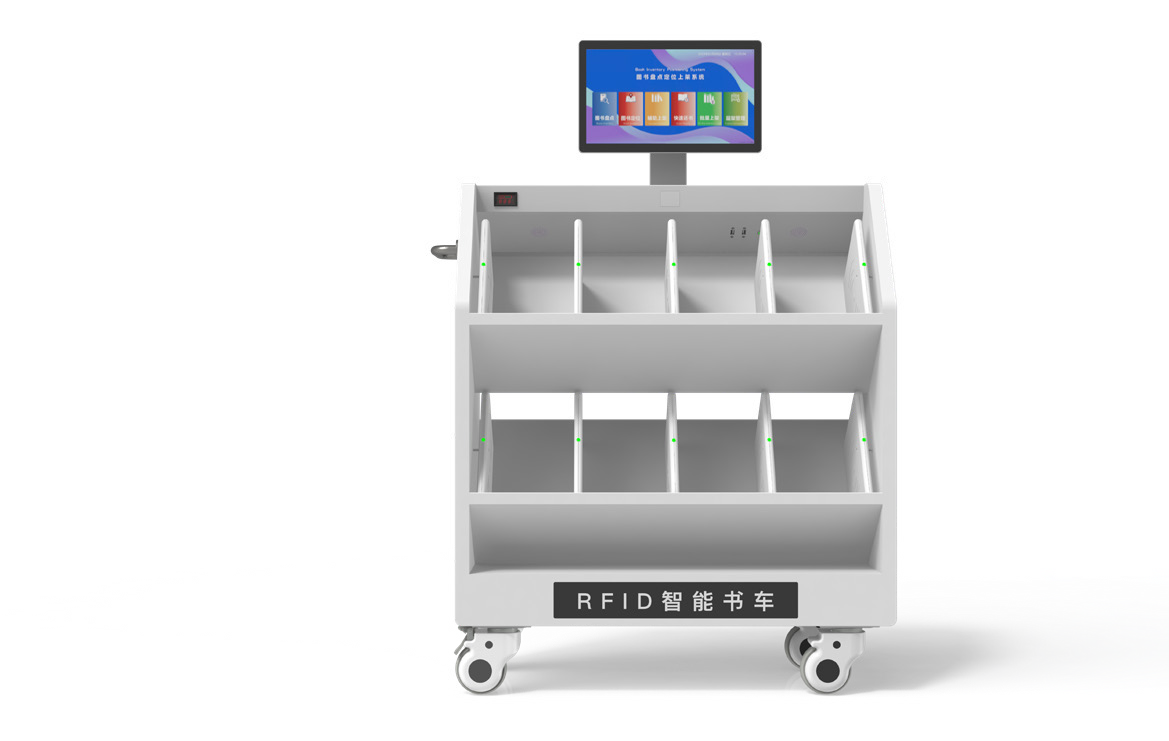

Battery-powered smart book return cart | 100-book capacity

Request product match View model index View product manual

Key parameters

Product model

RTS2021

Product name

Smart Book Return Cart

Working frequency

13.56 MHz

Supported standards

ISO 15693

Book identification

Multiple books

Loan / return methods

Face recognition, IC card, ID card, WeChat QR code

Technical Data

Technical specifications

Model parameters for product comparison and engineering review.

Product Parameters

Product model	RTS2021
Product name	Smart Book Return Cart
Working frequency	13.56 MHz
Supported standards	ISO 15693
Book identification	Multiple books
Loan / return methods	Face recognition, IC card, ID card, WeChat QR code
Return mode	Login-free fast return
Shelf layers	2 layers
Screen size	10.1 inch or 15.6 inch
Battery capacity	12 V 60 Ah with battery-level display
External USB	2
Book capacity	Approx. 100 books
Energy-saving technology	Radar sensing, sensing distance up to 10 m

Reader, Power & Structure

Physical size	910 x 379 x 1304 mm (L x W x H)
Package size	1036 x 486 x 1502 mm
Read / write function	Supports multi-tag identification and fast anti-collision processing
Display	10.1 inch (1280 x 800 px) or 15.6 inch (1080 x 1920 px)
Screen rotation	Left / right 180 degrees, up / down 100 degrees
Touch type	10-point capacitive touchscreen
Material structure	>= 1.0 mm sheet metal, acrylic
High-power HF reader	13.56 MHz; ISO15693 and ISO18000-3; 1-8 W adjustable; up to 65 tags/s; RS232 / RS485 / Ethernet; 12 V DC, <= 1.5 A
Reader-card module	13.56 MHz; ISO15693 and ISO14443A; approx. 0-15 cm; USB; 5 V DC
Network	Ethernet, WiFi
Battery runtime	7-12 hours
Gross weight	Approx. 80 kg

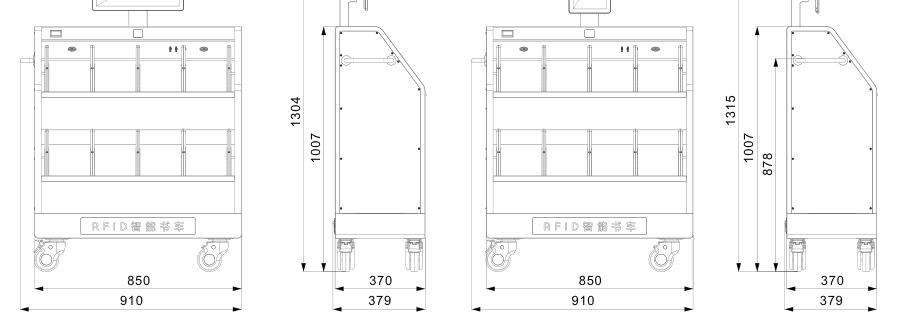

Mechanical Dimensions

Physical size and structure drawing

Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
