Library & Public-Service Equipment
Mobile shelf support for inventory, return and batch shelving
Key parameters
Product model
RTS2020
Product name
Smart Inventory Cart
Working frequency
13.56 MHz, 840-960 MHz
Supported standards
ISO18000-3, ISO15693, ISO 18000-6C
Book identification
Multiple books
Screen rotation
Clockwise / counterclockwise 180 degrees, up / down 100 degrees
Technical Data
Model parameters for product comparison and engineering review.
| Product model | RTS2020 |
|---|---|
| Product name | Smart Inventory Cart |
| Working frequency | 13.56 MHz, 840-960 MHz |
| Supported standards | ISO18000-3, ISO15693, ISO 18000-6C |
| Book identification | Multiple books |
| Screen rotation | Clockwise / counterclockwise 180 degrees, up / down 100 degrees |
| Shelf antenna | Optional smart shelf antenna |
| Shelf layers | 2 layers |
| Screen size | 21.5 inch |
| Battery capacity | 12 V 60 Ah with battery-level display |
| External USB | 4 |
| Book capacity | Approx. 60 books |
| Physical size | 549 x 610 x 1572 mm (L x W x H) |
|---|---|
| Package size | 610 x 675 x 1720 mm |
| Read / write function | Supports multi-tag identification and fast anti-collision processing |
| Display resolution | 1080 x 1920 @ 60 Hz (HDMI, up to 4K @ 60 Hz) |
| Touch type | Multi-point capacitive touchscreen |
| Material structure | >= 1.5 mm sheet metal, tempered glass |
| HF reader | 13.56 MHz; ISO15693 and ISO18000-3; 1.5 W output; >= 50 tags/s; RS232 / RS485 / Ethernet; 12 V DC, <= 1.5 A |
| UHF reader | 840-960 MHz; ISO 18000-6C; 0-33 dBm adjustable; > 400 reads/s |
| Shelf options | ABS bookend without tag reading or ABS smart shelf antenna with tag reading (HF only) |
| Battery runtime | 6-10 hours |
| Network | Ethernet, WiFi |
| Gross weight | Approx. 57 kg |

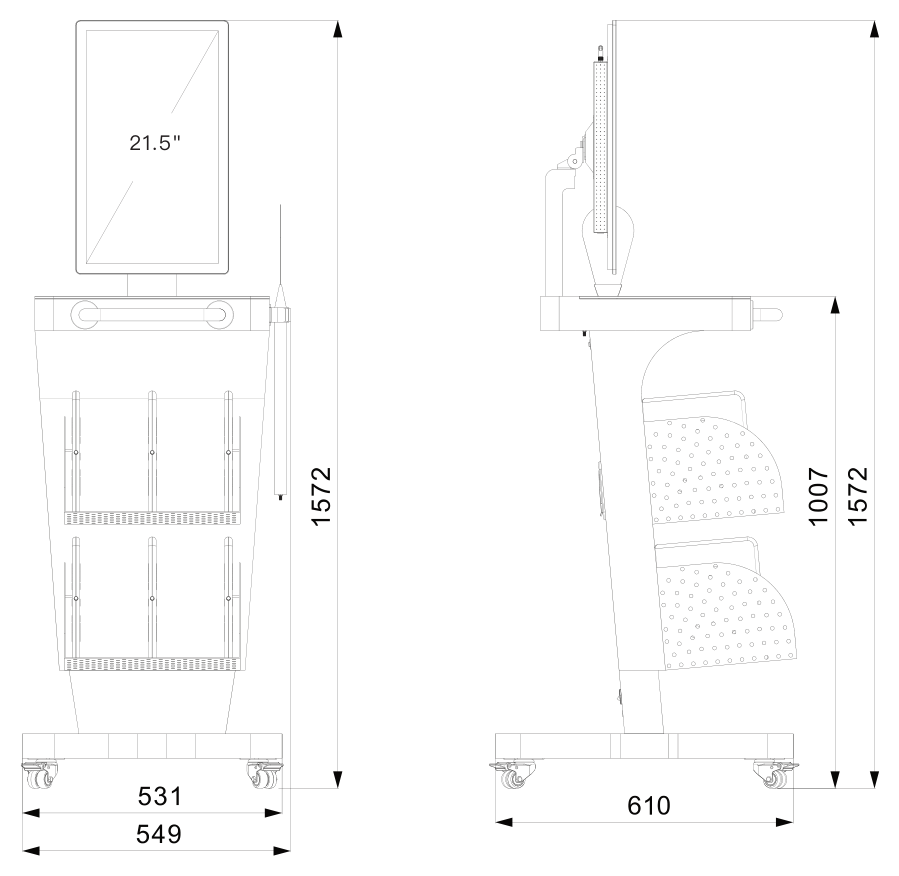

Mechanical Dimensions
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
