Library & Public-Service Equipment

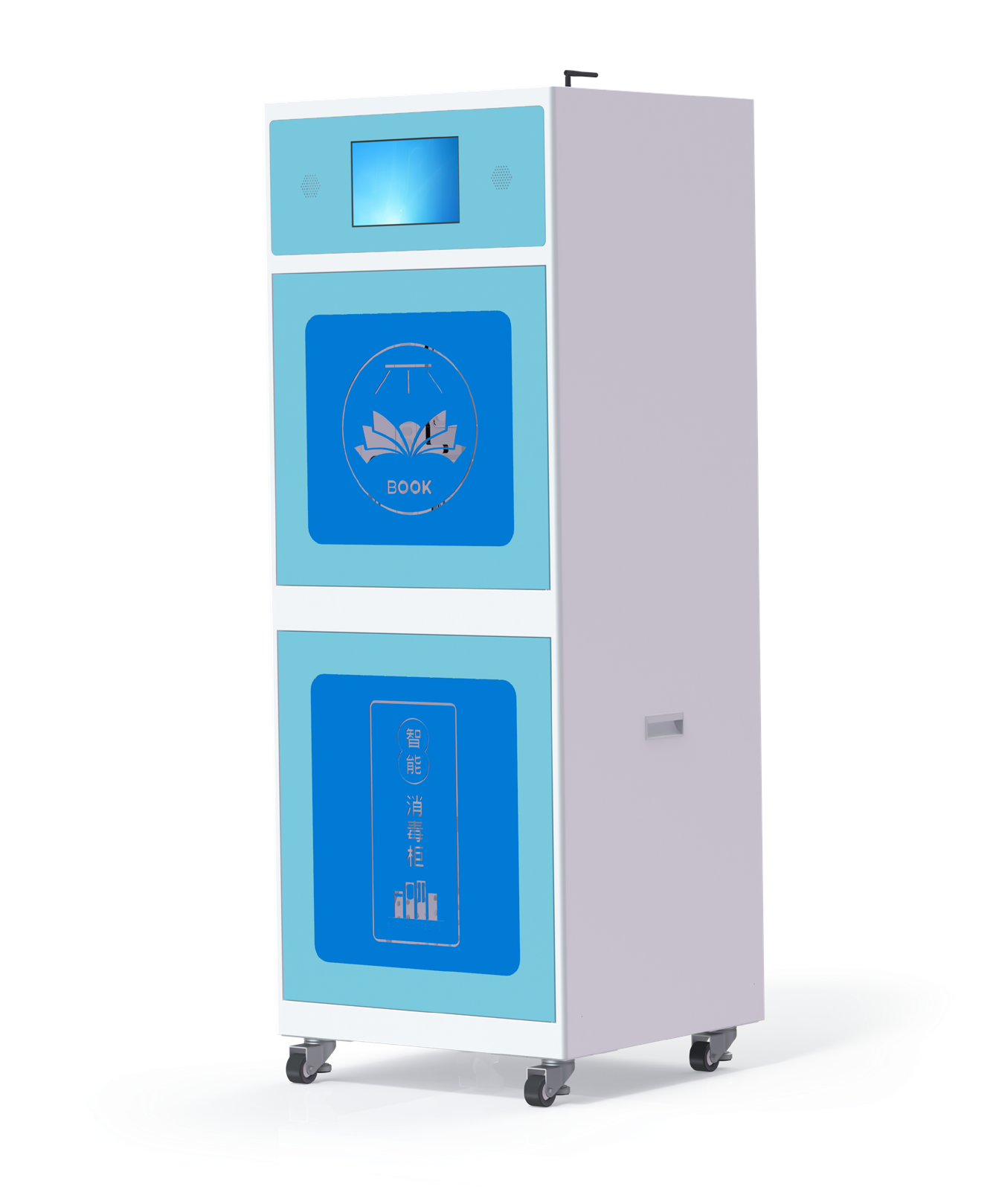

RTS3050 / RTS3050D

Two-level smart book disinfection cabinet | Variant functions differ

Controlled ozone and ultraviolet treatment for library materials

Request product match View model index View product manual

Key parameters

Product model

RTS3050 / RTS3050D

Product name

Smart Disinfection Cabinet

Disinfection mode

First layer: ozone + ultraviolet; second layer: ultraviolet

Sterilization target

Fungi, mold, hepatitis viruses, and microorganisms harmful to archives and books

Door opening

Electronic lock

Airflow system

2 cross-flow fans, 5.3 m3/min airflow

Technical Data

Technical specifications

Model parameters for product comparison and engineering review.

Product Parameters

Product model	RTS3050 / RTS3050D
Product name	Smart Disinfection Cabinet
Disinfection mode	First layer: ozone + ultraviolet; second layer: ultraviolet
Sterilization target	Fungi, mold, hepatitis viruses, and microorganisms harmful to archives and books
Door opening	Electronic lock
Airflow system	2 cross-flow fans, 5.3 m3/min airflow
Book disinfection capacity	<= 50 books per batch
Deployment	Lightweight cabinet, movable deployment
Screen size	10.1 inch
External USB	2
Applicable items	Picture books, books, magazines, newspapers, archives
Emergency device	Mechanical emergency unlocking device

Interface, Disinfection & Structure

Physical size	600 x 580 x 1669.8 mm
Package size	715 x 685 x 1780 mm
Read / write function	Supports multi-tag identification and fast anti-collision processing
Display resolution	RTS3050: 1280 x 800 px @ 60 Hz; RTS3050D: 1024 x 600 px
Touch type	10-point capacitive touchscreen
Supported standards	ISO18000-3, ISO15693
Material structure	>= 1.5 mm sheet metal, tempered glass
Disinfection layers	Two layers: first layer <= 50 books; second layer <= 6 books
HF reader	13.56 MHz; ISO15693 and ISO18000-3; 1.5 W output; >= 50 tags/s; RS232 / RS485 / Ethernet; 12 V DC, <= 1.5 A
Second layer	2 integrated UV / ozone lamps, optional 9 groups; 2 cross-flow fans; 6 books per cycle
First layer	1 integrated UV / ozone lamp group, optional 2 groups; <= 50 books per batch; 50 mg/hr ozone generator
Gross weight	Approx. 80 kg

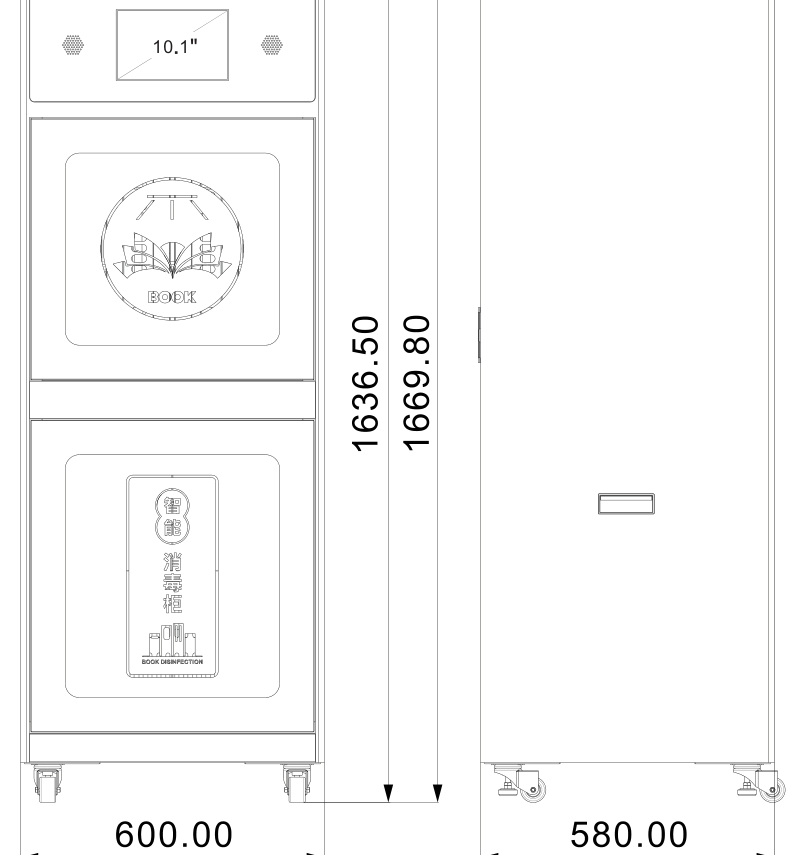

Mechanical Dimensions

Physical size and structure drawing

Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.

RTS3050 / RTS3050D mechanical dimensions
