Product Parameters
| Product model | RJHS1030 |
|---|---|

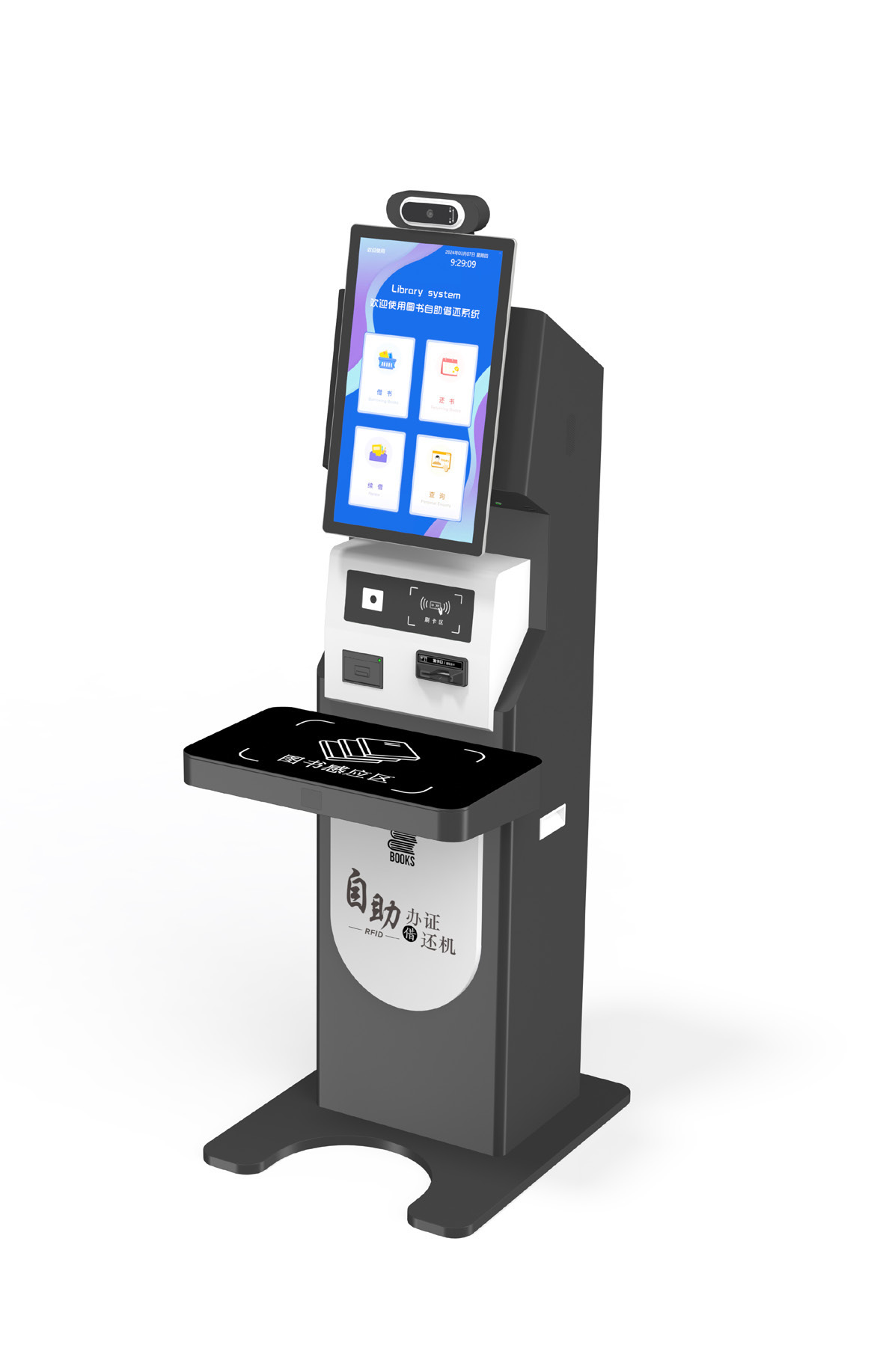

| Product name | Self-Service Card-Issuing Loan and Return Machine |
| Working frequency | 13.56 MHz, 840-960 MHz |
| Supported standards | ISO 15693, ISO 18000-6C |
| Book identification | Multiple books, stack height <= 250 mm, >= 10 books |
| Loan / return methods | Face recognition, IC card, ID card, WeChat QR code |
| Energy-saving technology | Radar sensing, sensing distance up to 10 m |
| Applicable items | Picture books, books, magazines, newspapers, archives, assets |

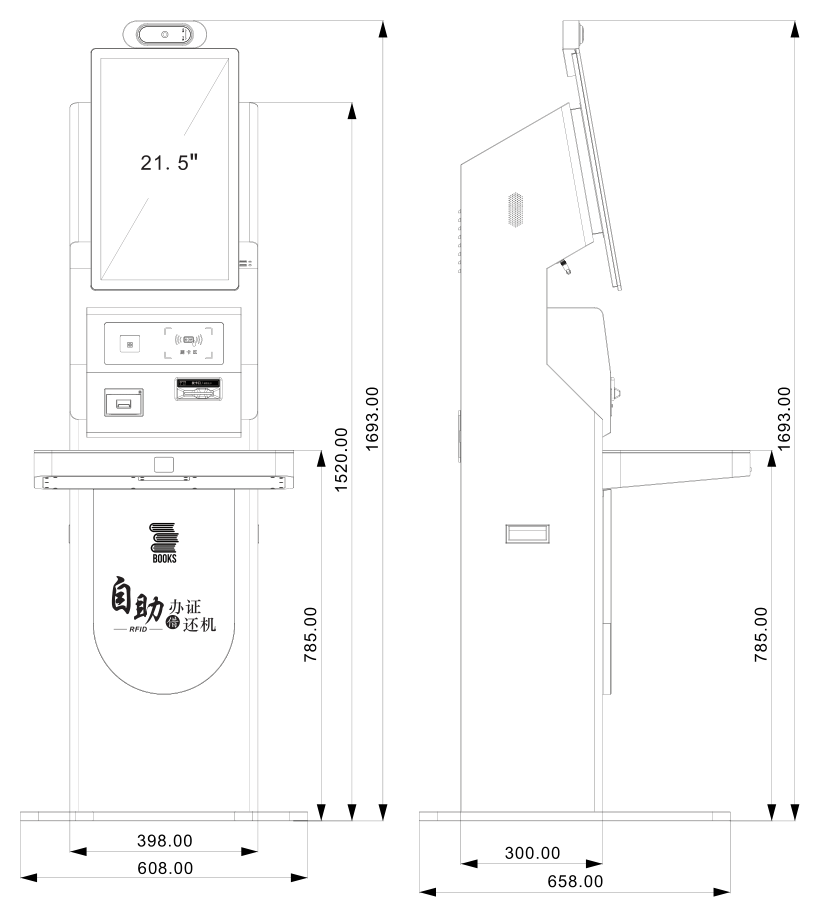

| Physical size | 608 x 658 x 1693 mm (L x W x H) |
| Package size | 675 x 825 x 1768 mm |
| Display | 21.5 inch or 32 inch touchscreen |
| Display resolution | 1080 x 1920 @ 60 Hz (HDMI, up to 4K @ 60 Hz) |
| Touch type | 10-point capacitive touchscreen |
| Material structure | >= 1.5 mm sheet metal, tempered glass |
| Gross weight | Approx. 50 kg |
| Thermal printer | Max. 90 mm/s, 48 mm effective print width, 58 mm paper width, parallel / serial / USB interface |
| Card issuing module | Approx. 0.5 s issuing time, 54 x 85 mm card, 0.3-2.4 mm thickness, 150-card box capacity |
