Technical Data
Technical specifications
Model parameters for product comparison and engineering review.

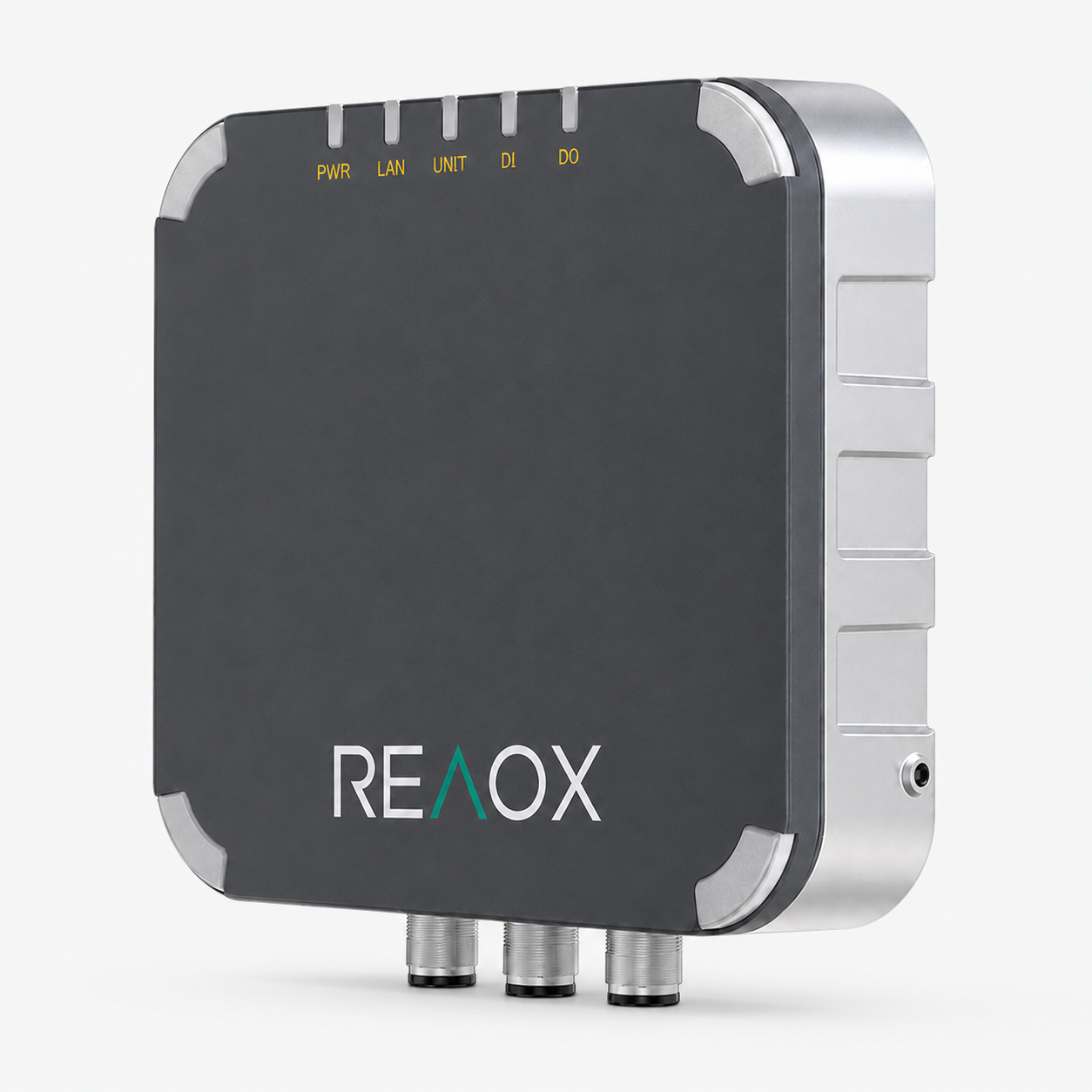

Product Parameters
| Supported protocol | ISO 18000-6C, EPC C1G2 standard |
|---|
| Operating frequency | 860-960 MHz, customizable range |
|---|
| RF output power | 1-30 dBm, configurable |
|---|
| Communication interface | Industrial Ethernet, WiFi (2.4G / 5G), RS485 |
|---|
| Communication rate | 10/100M bps, 9600 b/s-115200 b/s |
|---|
| Power supply | 48V POE (46-54V), 24V DC (10-30V) |
|---|
| Maximum current | <0.38A @ 24V DC |
|---|
| Dimensions | 135 x 135 x 42 mm; top cover size 130 x 130 mm |
|---|
| Weight | 580 g |
|---|
| Mounting method | Nut (4 x M5) mounting or accessory bracket mounting |
|---|
| Housing material | ABS top cover + metal bottom shell |
|---|
| Housing color | Gray top cover, silver-white bottom shell |
|---|
| Indicators | 6 LED indicators |
|---|
| Communication ports | 8-pin (M12A) + 5-pin (M12A) + 4-pin (M12D) |
|---|
| External antenna | 4 x SMA interfaces |
|---|
| Operating temperature | -40 C to +60 C |
|---|
| Operating humidity | 5%-95% RH |
|---|
| IP rating | IP67 |
|---|
