Dining & Food-Safety Device
Networked tray recognition and weighing for self-service dining
Key parameters
Product model
RCY2010
Product name
Smart Weighing All-in-One
Tray recognition
Barcode / QR code
Product size
558 x 437 x 841 mm
Recognition time
<= 1 s
Operating system
Android
Technical Data
Model parameters for product comparison and engineering review.
| Product model | RCY2010 |
|---|---|
| Product name | Smart Weighing All-in-One |
| Tray recognition | Barcode / QR code |
| Product size | 558 x 437 x 841 mm |
| Recognition time | <= 1 s |
| Operating system | Android |
| Screen size | 10.1 inch |
| Screen resolution | 1280 x 800 |
| Material | Titanium alloy, tempered glass, acrylic |
| Splash / saliva shield | Standard |
| Screen functions | Dish name, unit price, nutrition, user name, amount, balance |
| CPU | RK3562 quad-core 64-bit, 2.0 GHz |
| Network | Ethernet, WiFi |
|---|---|
| Memory / storage | 2 GB + 32 GB |
| External interfaces | USB x1, RS232 x1 |
| SDK | C / C++ / C# / Java |
| LED light | Built in |
| Power input | 12 V DC, 3 A |
| Alarm light | Seven-color alarm in shield; optional upright alarm |
| Operating temperature | -20 C to 60 C |
| Storage temperature | -40 C to 85 C |
| Relative humidity | 10%-95% RH, non-condensing |
| Sensor grade | >= 3C |
| Maximum capacity | 50 kg |
| Glass panel customization | Supported |
| RFID tray option | Optional RFID smart tray |
| Sound-light alarm | Supported; optional voice / buzzer |
| Camera option | Optional 2 MP binocular camera |
| Gross weight | - |

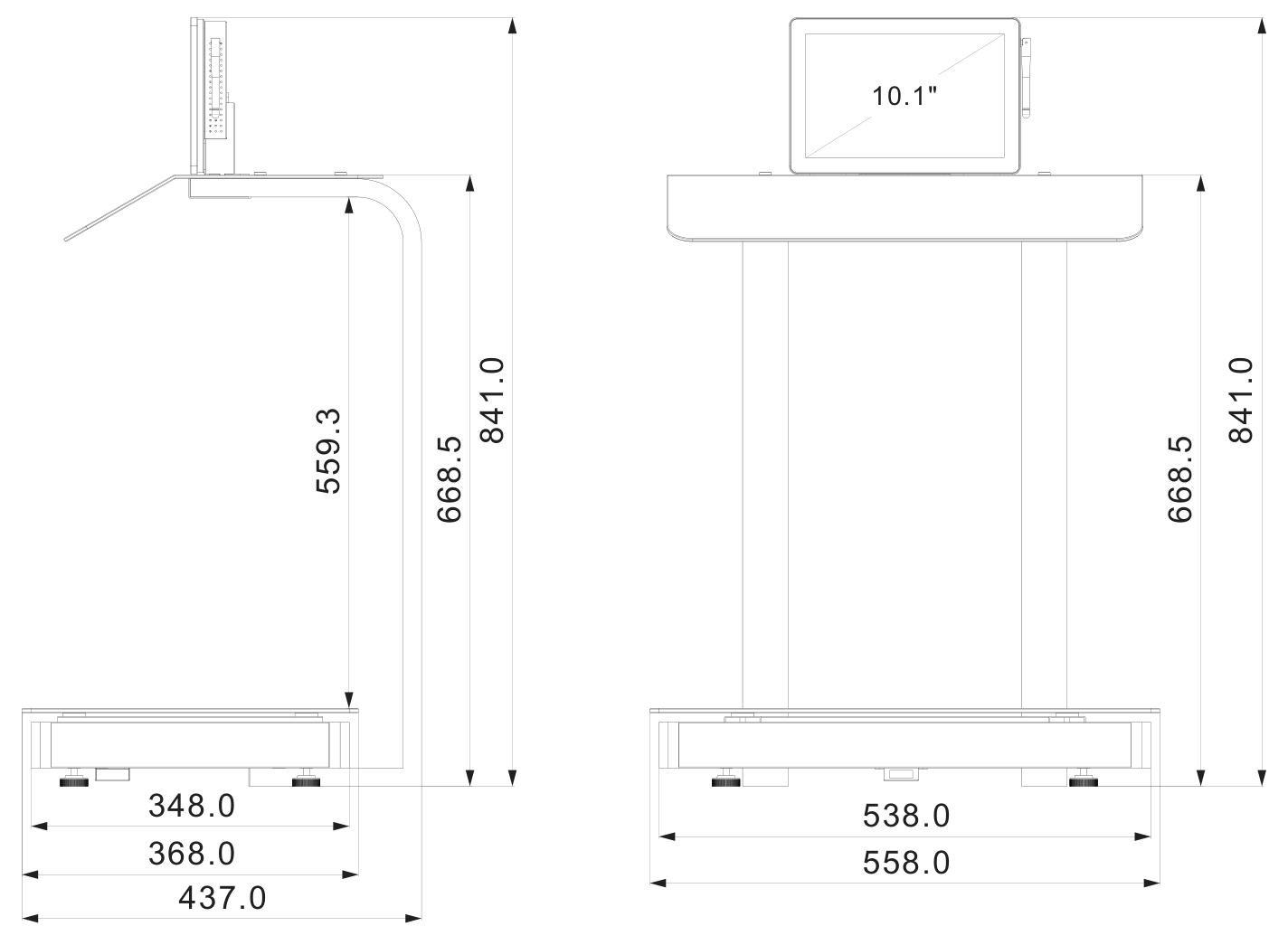

Mechanical Dimensions
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
